Driver Seat

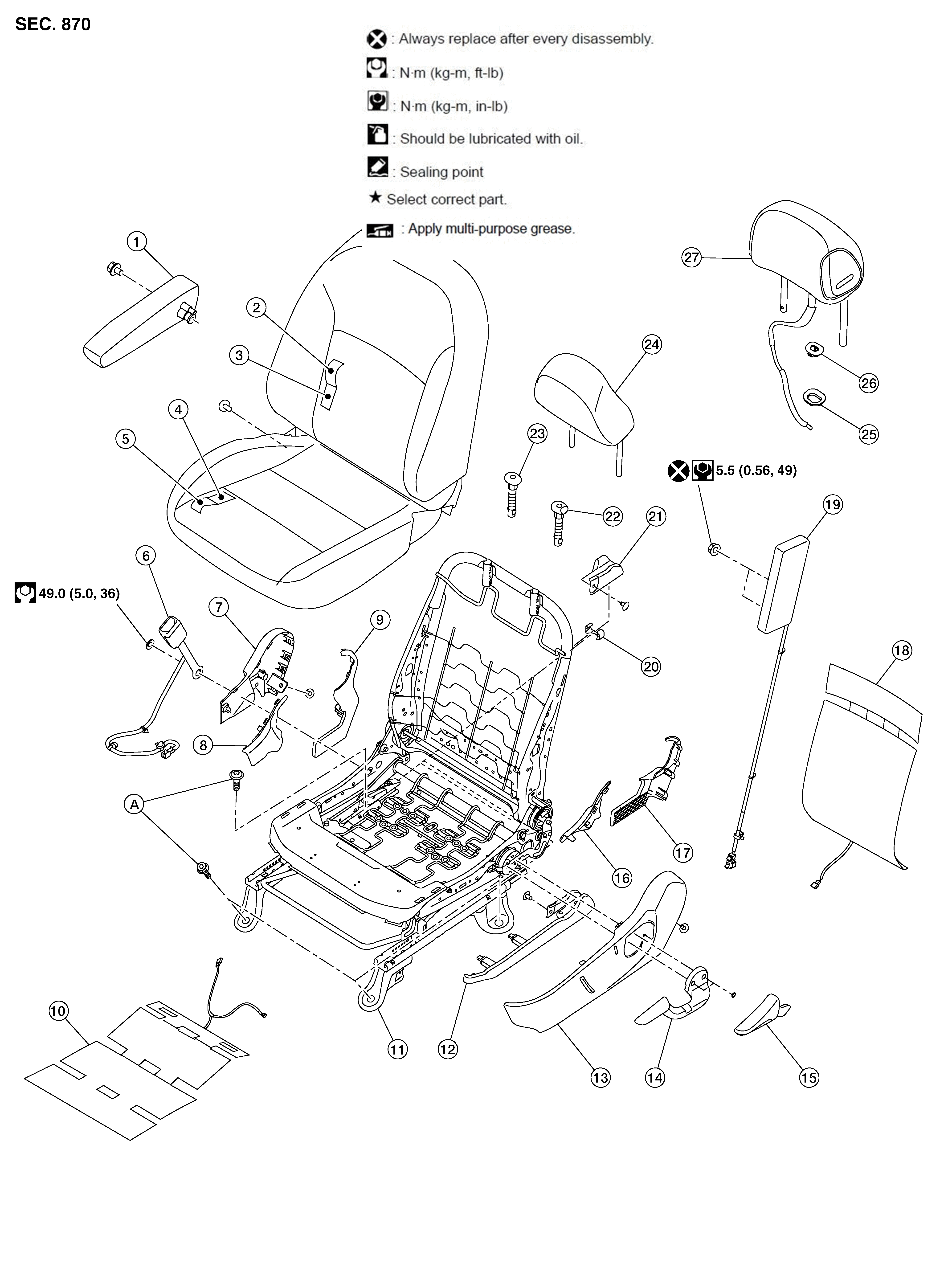

Fig 1: Driver Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Armrest	2.	Seatback trim	3.	Seatback pad
4.	Seat cushion pad	5.	Seat cushion trim	6.	Seat belt buckle
7.	Seat cushion outer finisher (RH)	8.	Seat front inner finisher (RH)	9.	Seat rear inner finisher (RH)
10.	Seat heater (cushion) LH (if equipped)	11.	Seat assembly	12.	Seat track finisher (LH)
13.	Seat cushion outer finisher (LH)	14.	Lift lever	15.	Recline lever
16.	Seat front inner finisher (LH)	17.	Seat rear inner finisher (LH)	18.	Seat heater (back) LH (if equipped)
19.	Side air bag module	20.	Seat Slide finisher	21.	Seat track finisher (RH)
22.	Headrest holder (locked)	23.	Headrest holder (free)	24.	Headrest (without display audio with Bose)
25.	Clip	26.	Finisher	27.	Headrest (with display audio with Bose)
A.	Refer to Removal and Installation .
