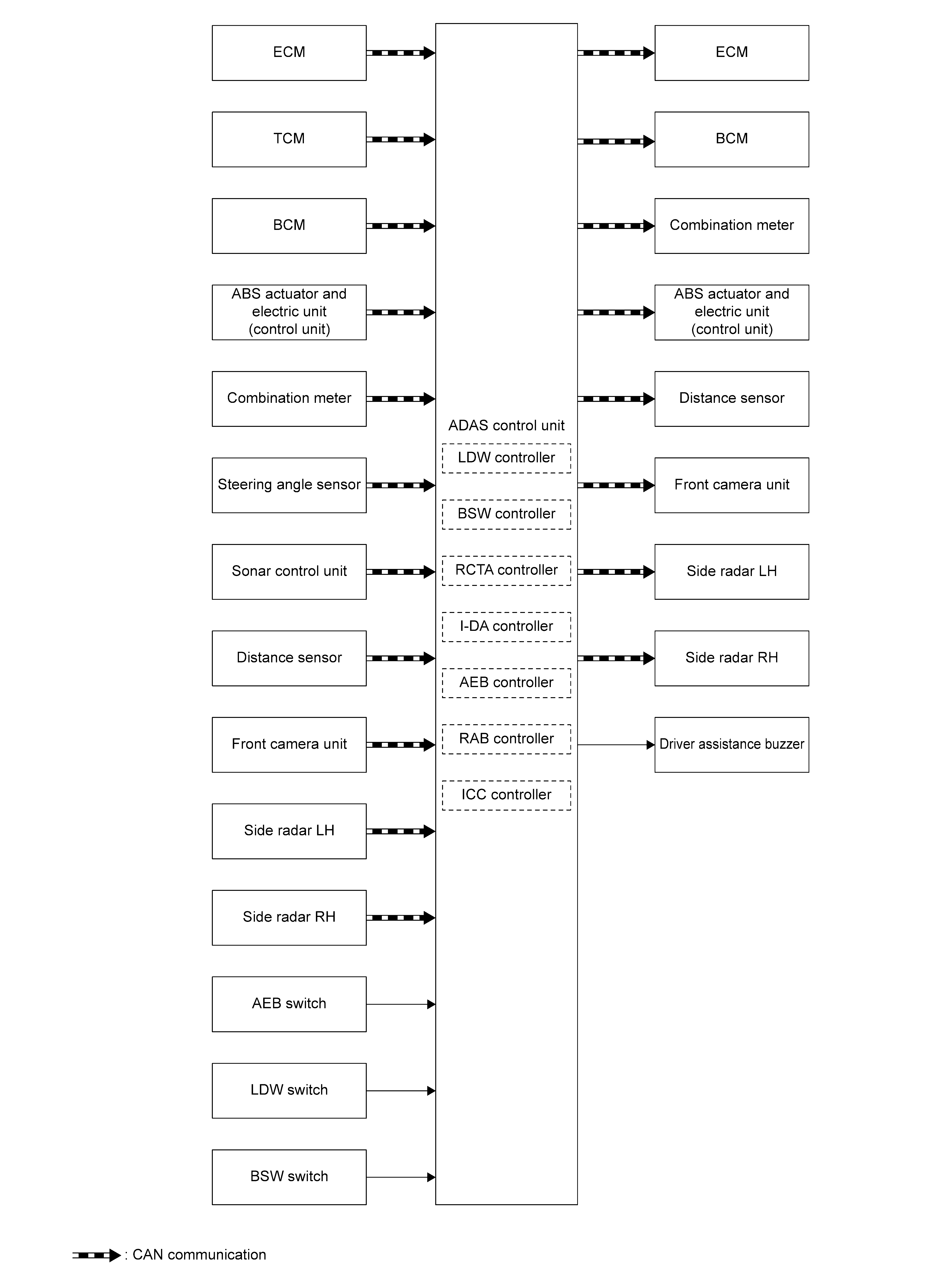

System Diagram

GNSILL0335097-097

Courtesy of NISSAN NORTH AMERICA, INC.

Component	Function
ADAS control unit	ADAS Control Unit
