Removal and Installation: Notes

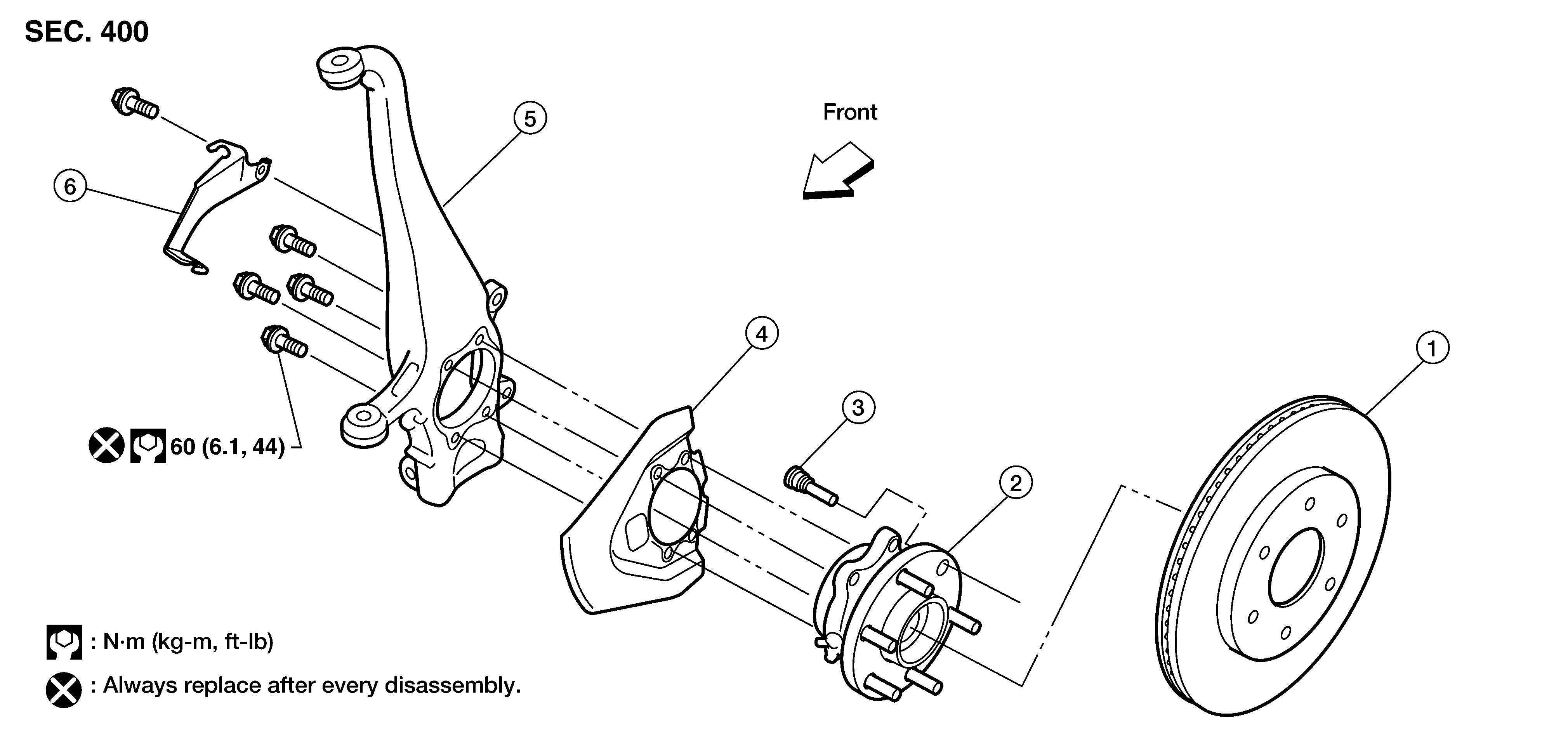

Fig 1: Wheel Hub Components With Torque Specifications
G04150362Courtesy of NISSAN NORTH AMERICA, INC.

1.

Disc rotor

2.

Wheel hub and bearing assembly

3.

Wheel stud

4.

Splash guard

5.

Steering knuckle

6.

Wheel sensor bracket
