Removal and Installation: Notes

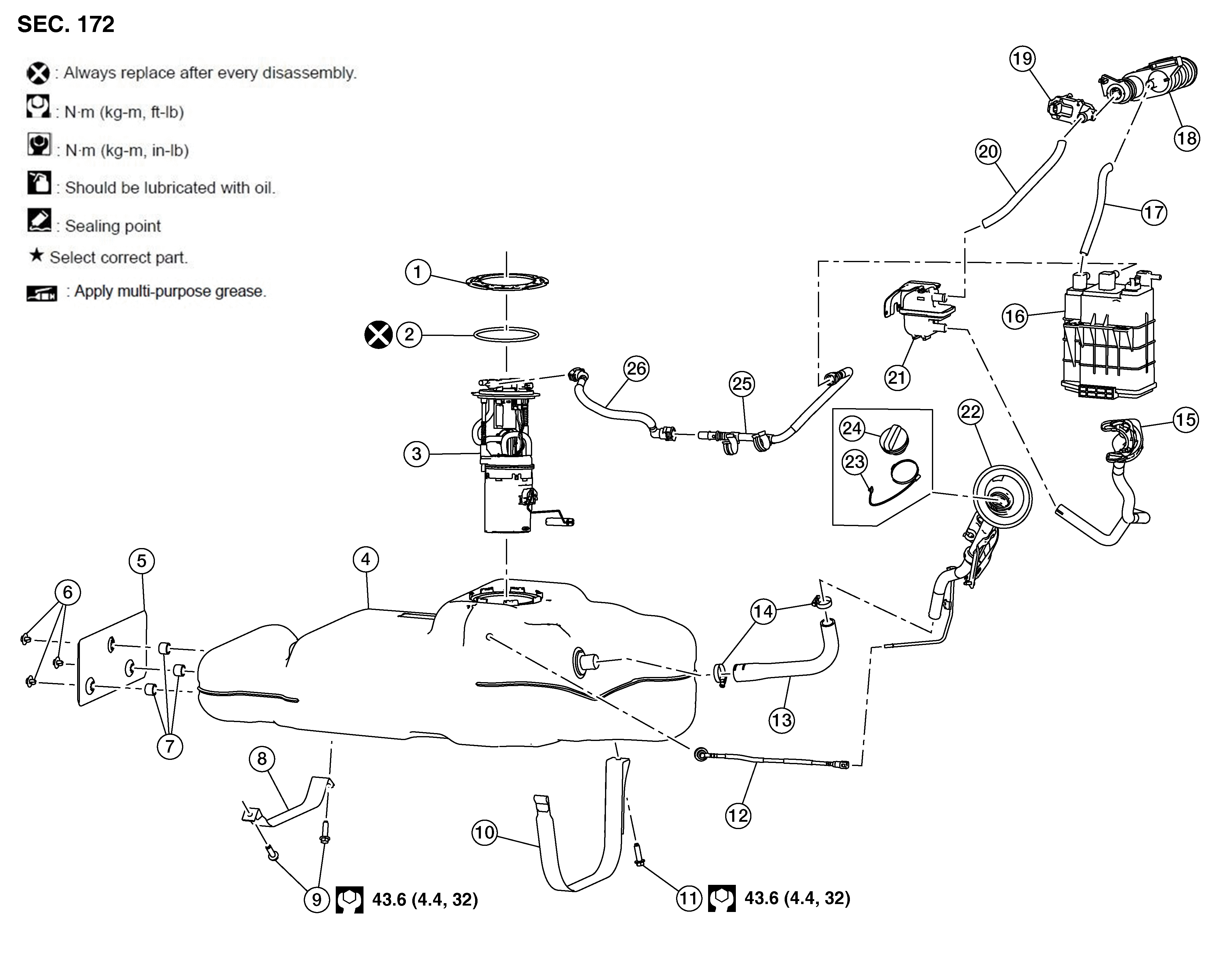

Fig 1: Fuel Tank Components With Torque Specifications - Crew Cab

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Lock ring	2.	O-ring	3.	Fuel level sensor, fuel filter, and fuel pump assembly
4.	Fuel tank	5.	Front fuel tank shield	6.	Fuel tank shield clip
7.	Fuel tank shield button	8.	Front fuel tank strap	9.	Bolts
10.	Rear fuel tank strap	11.	Bolt	12.	EVAP tube
13.	Fuel filler hose	14.	Hose clamp	15.	Fuel tank EVAP vent
16.	EVAP canister	17.	EVAP hose	18.	Secondary EVAP canister
19.	Assembly drain cut	20.	EVAP pipe	21.	EVAP filter
22.	Fuel filler assembly	23.	Fuel cap tether	24.	Fuel cap
25.	EVAP tube	26.	EVAP tube

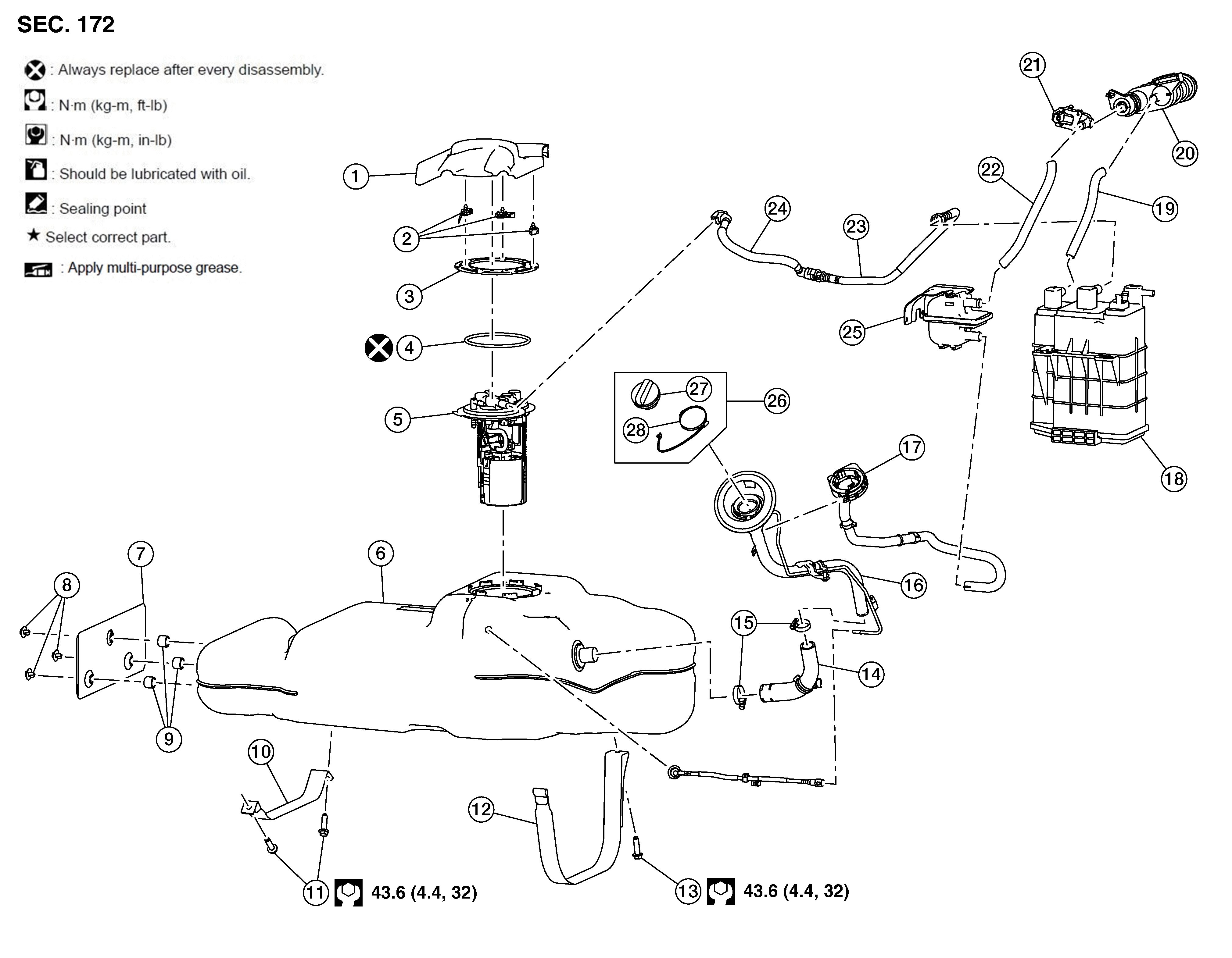

Fig 2: Fuel Tank Components With Torque Specifications - King Cab

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel level sensor unit protector	2.	Clip	3.	Lock ring
4.	O-ring	5.	Fuel level sensor, fuel filter, and fuel pump assembly	6.	Fuel tank
7.	Fuel tank shield	8.	Fuel tank shield clip	9.	Fuel tank shield button
10.	Front fuel tank strap	11.	Front tank strap bolts	12.	Rear fuel tank strap
13.	Rear tank strap bolt	14.	Fuel fill tube	15.	Hose clamp
16.	Fuel fill tube assembly	17.	EVAP vent tube	18.	EVAP canister
19.	EVAP tube	20.	Secondary EVAP canister	21.	Assembly drain cut
22.	EVAP tube	23.	EVAP canister filter	24.	EVAP tube
25.	EVAP tube	26.	Fuel cap assembly	27.	Fuel cap
28.	Fuel cap tether

WARNING: Follow the "General Precautions" before working on the fuel system. Refer to General Precaution .

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
