Exploded View

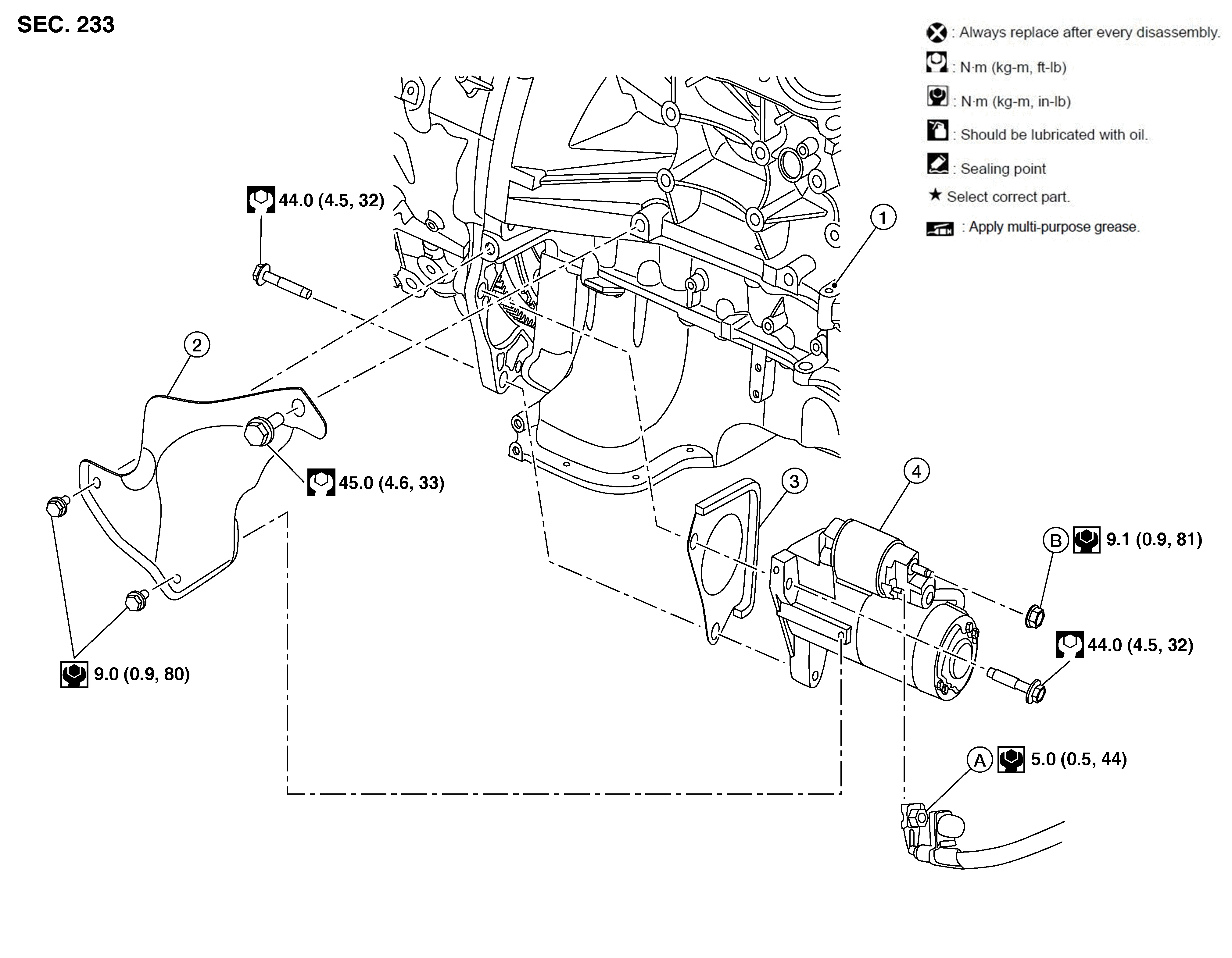

Fig 1: Starter Motor Components With Torque Specifications
GNSAWBIA0434Z-434Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cylinder block

2.

Starter motor cover

3.

Starter cover plate (rear)

4.

Starter motor

A.

"S" terminal nut

B.

"B" terminal nut
