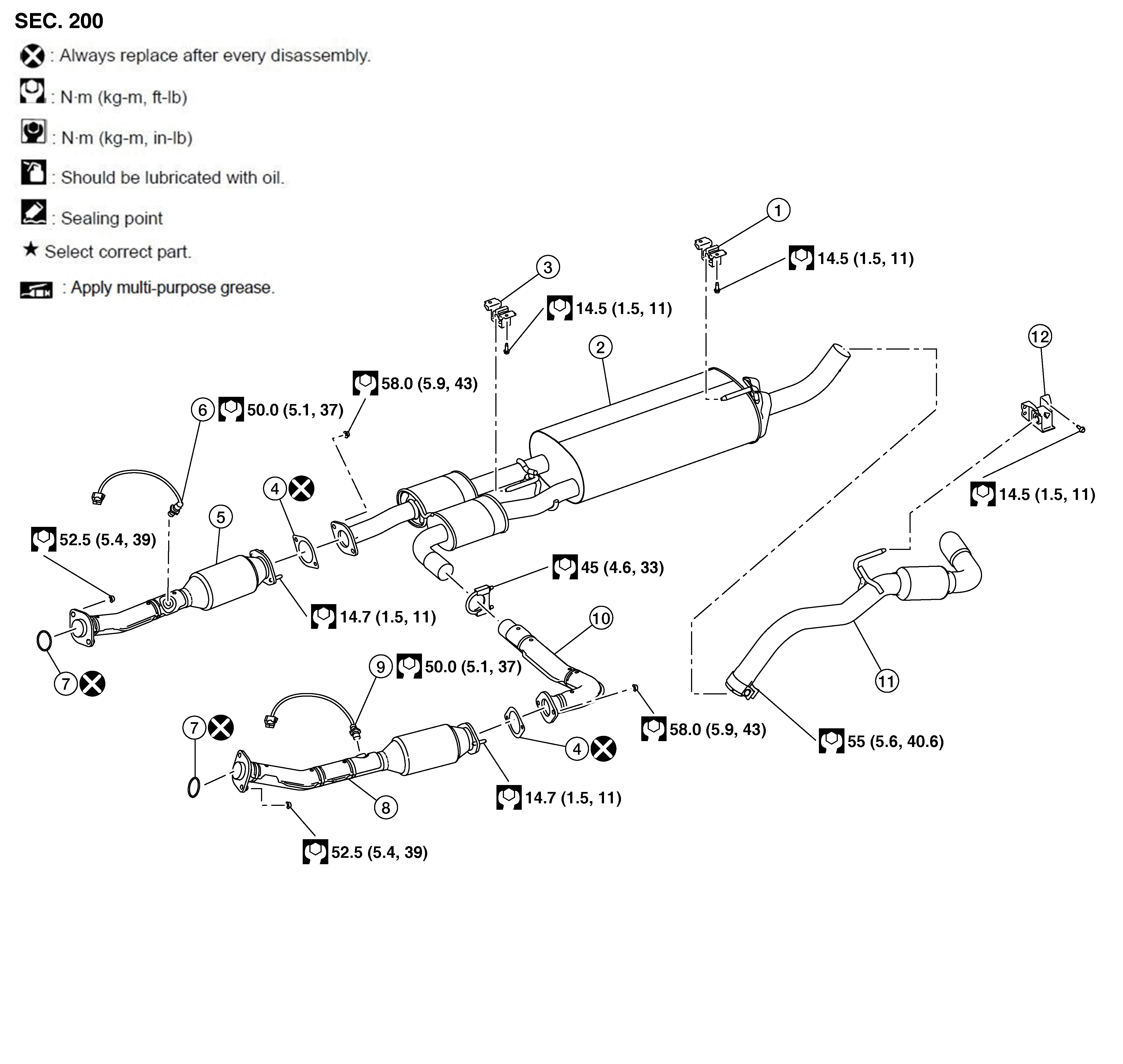

1.
Exhaust hanger bracket
2.
Main muffler
3.
4.
Gasket
5.
Right front exhaust tube
6.
Heated oxygen sensor 2 (bank 1)
7.
Ring gasket
8.
Left front exhaust tube
9.
Heated oxygen sensor 2 (bank 2)
10.
Center exhaust tube
11.
Tailpipe
12.
