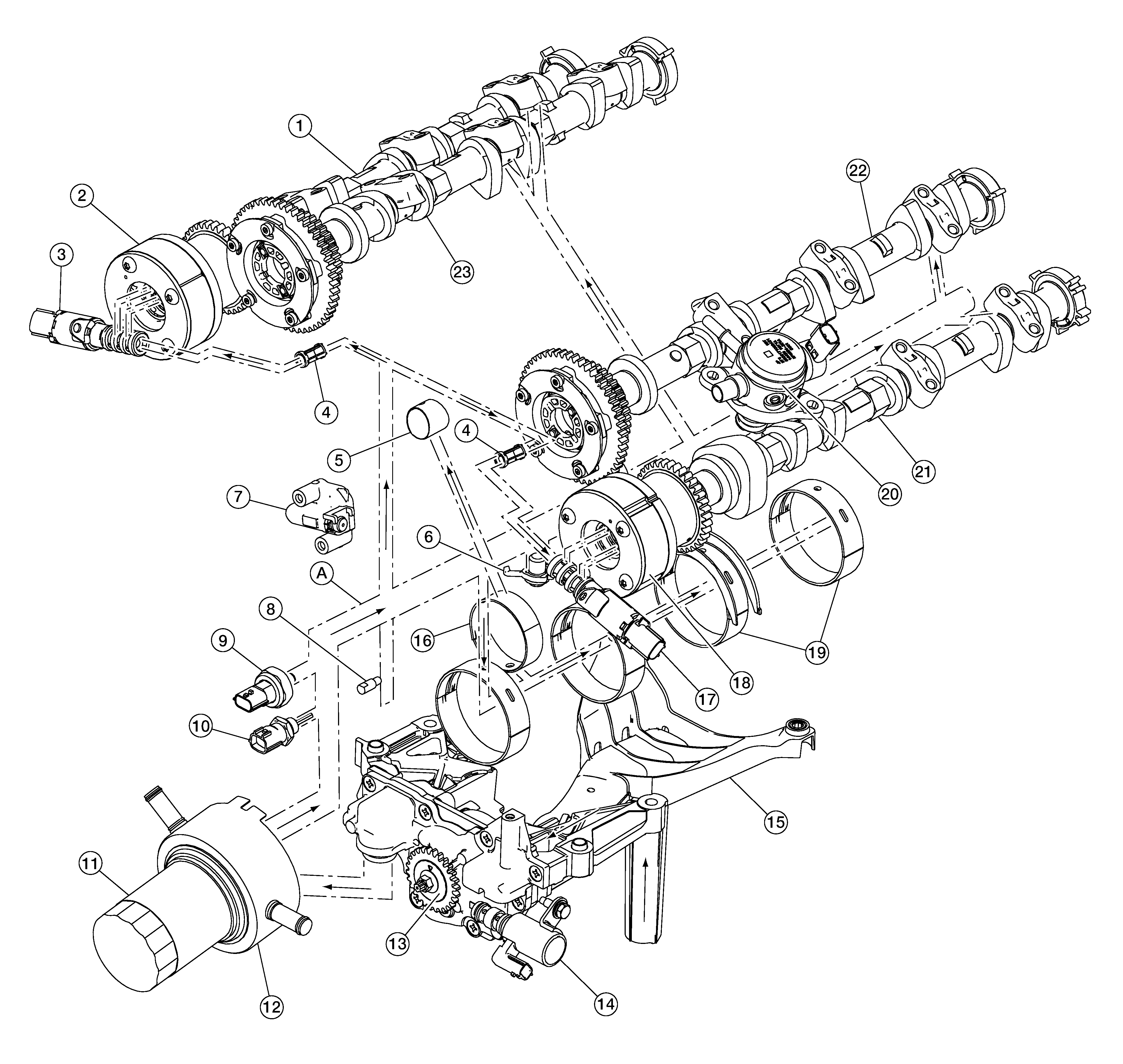

Lubrication Circuit

1.

Exhaust camshaft (bank 1)

2.

Exhaust camshaft sprocket (bank 1)

3.

Exhaust valve timing control solenoid valve (bank 1)

4.

Filter

5.

Connecting rod bushing

6.

Oil jet

7.

Timing chain tensioner (primary)

8.

Timing chain oil jet

9.

Engine oil pressure sensor

10.

Engine oil temperature sensor

11.

Oil filter

12.

Oil cooler

13.

Oil pump

14.

Engine oil pressure control solenoid valve

15.

Oil strainer

16.

Connecting rod bearings

17.

Exhaust valve timing control solenoid valve (bank 2)

18.

Exhaust camshaft sprocket (bank 2)

19.

Main bearings

20.

High pressure fuel pump

21.

Exhaust camshaft (bank 2)

22.

Intake camshaft (bank 2)

23.

Intake camshaft (bank 1)

A.

Main gallery
