Exploded View

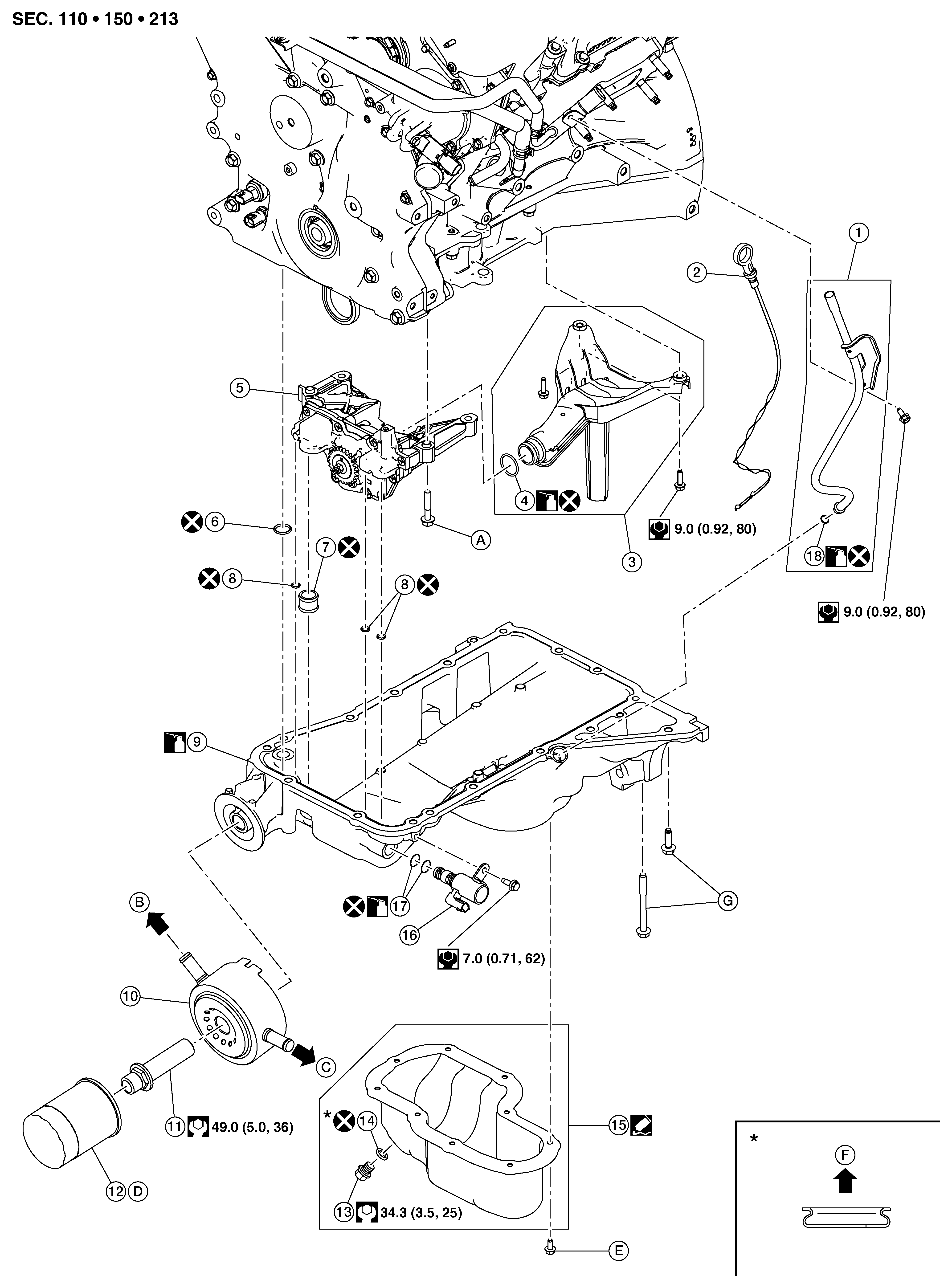

Fig 1: Oil Pump Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil level gauge guide	2.	Oil level gauge	3.	Oil strainer
4.	O-ring	5.	Oil pump	6.	O-ring
7.	O-ring	8.	O-ring	9.	Oil pan (upper)
10.	Oil cooler	11.	Connector bolt	12.	Oil filter
13.	Drain plug	14.	Drain plug washer	15.	Oil pan (lower)
16.	Engine oil pressure control solenoid valve	17.	O-ring	18.	O-ring
A.	Refer to Removal and Installation .	B.	To water hose. Refer to Exploded View .	C.	To water hose A. Refer to Exploded View .
D.	Refer to Removal and Installation .	E.	Refer to Removal and Installation .	F.	Oil pan side
G.	Refer to Removal and Installation .
