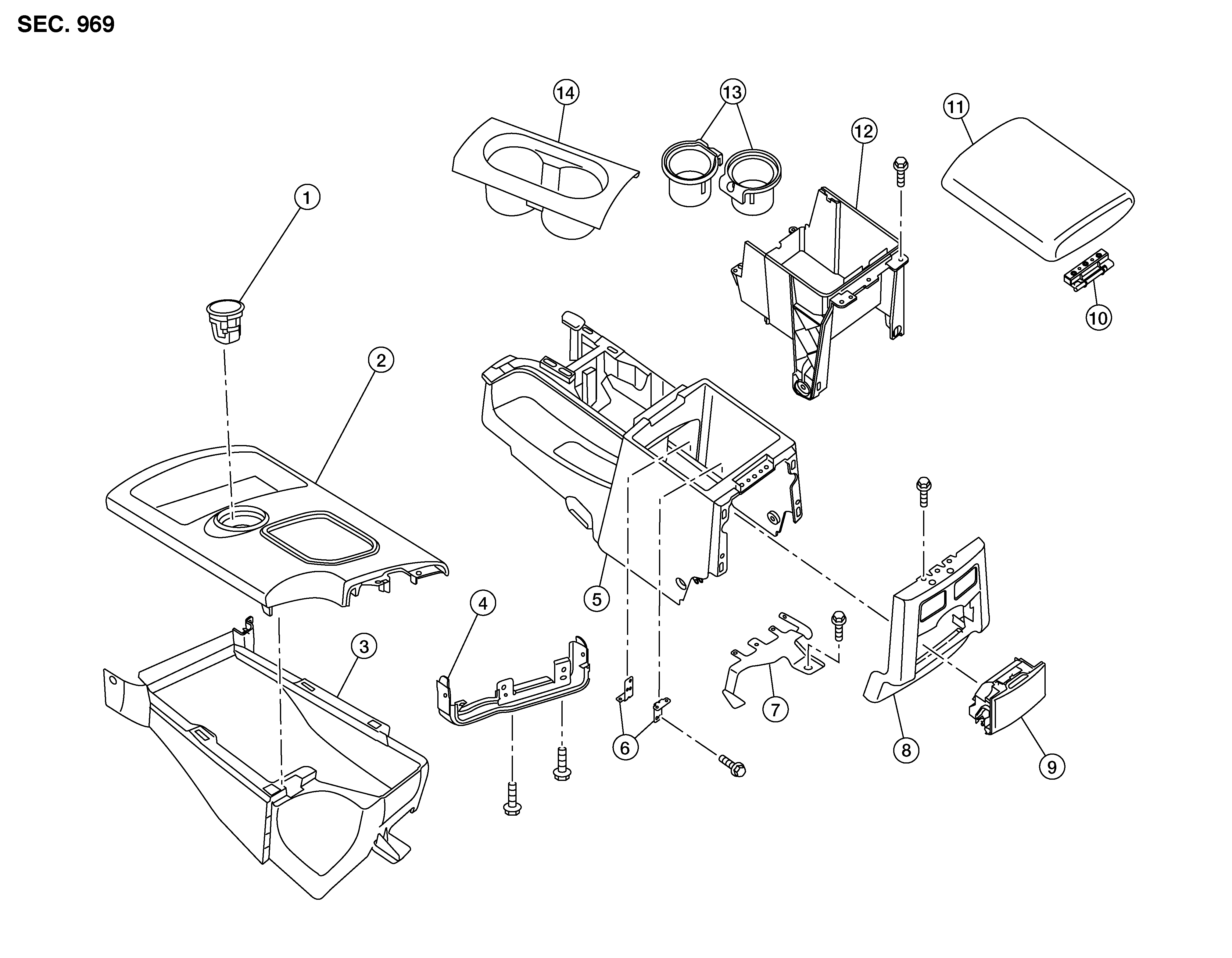

Exploded View
|
1. |
Push-button ignition switch |
2. |
Shift selector finisher |
3. |
Center console front base |
|
4. |
Bracket |
5. |
Center console rear base |
6. |
Bracket |
|
7. |
Wire harness bracket |
8. |
Rear finisher assembly |
9. |
Rear cup holder assembly |
|
10. |
Center console lid hinge |
11. |
Center console lid |
12. |
Center console bin |
|
13. |
Cup holder insert |
14. |
Cup holder finisher |
A. |
Bolt |
