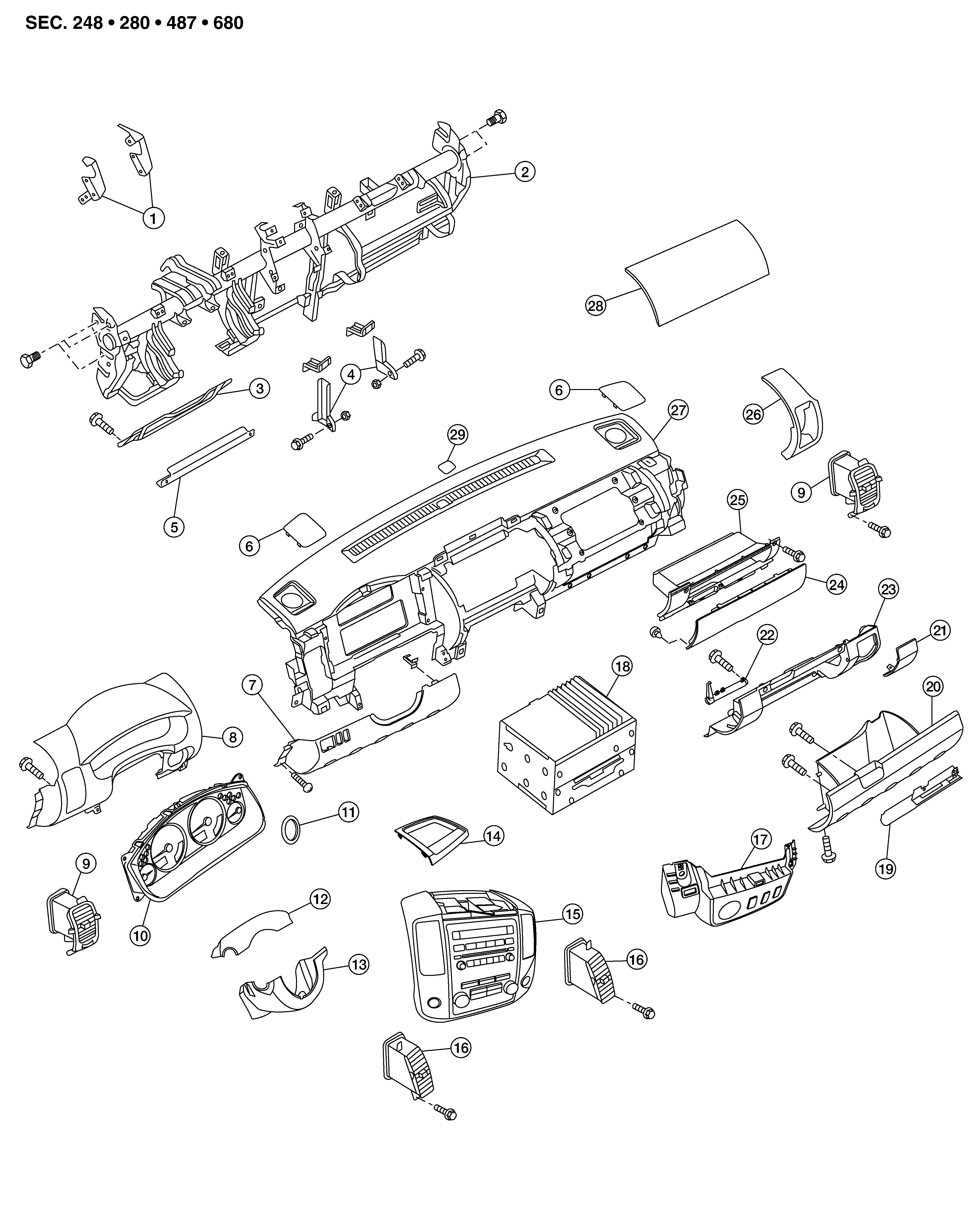

Exploded View
|
1. |
Display unit bracket (RH/LH) |
2. |
Steering member assembly |
3. |
Knee protector |
|
4. |
Instrument stay (RH/LH) |
5. |
Knee protector brace |
6. |
Speaker grille (RH/LH) |
|
7. |
Instrument lower panel LH |
8. |
Cluster lid A |
9. |
Side ventilator grille (RH/LH) |
|
10. |
Combination meter |
11. |
Steering column upper cover |
12. |
Steering column lower cover |
|
13. |
Storage tray |
14. |
Cluster lid C |
15. |
Center ventilator grille (RH/LH) |
|
16. |
Cluster lid D |
17. |
Audio unit |
18. |
Lower glove box latch assembly |
|
19. |
Lower glove box assembly |
20. |
Fuse block cover |
21. |
Lower glove box damper assembly |
|
22. |
Instrument lower panel (RH) |
23. |
Upper glove box door |
24. |
Upper glove box lid |
|
25. |
Instrument panel side cover RH |
26. |
Instrument panel and pad assembly |
27. |
Passenger air bag module |
|
28. |
Sensor cover |
||||
