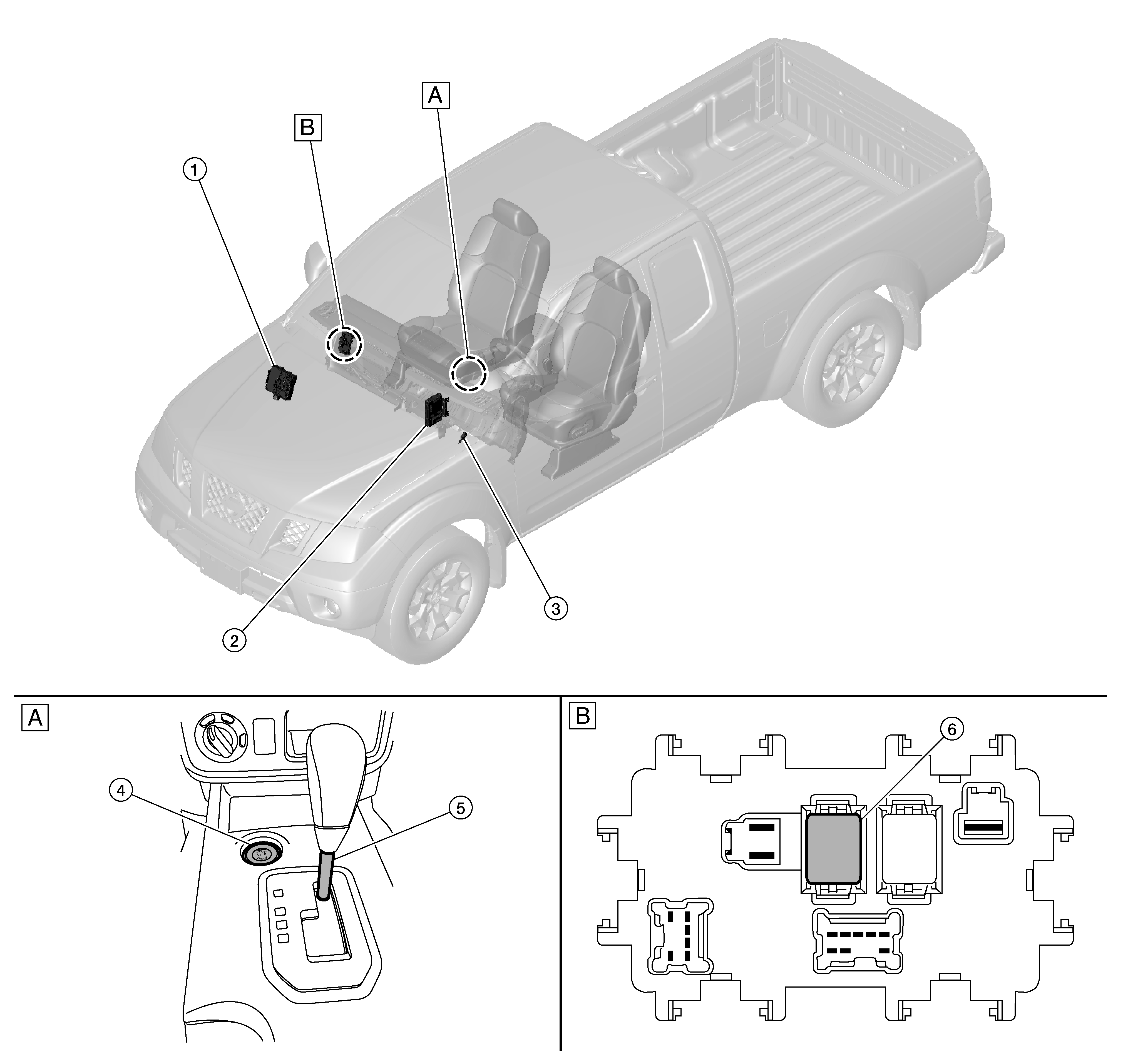

King Cab

Courtesy of NISSAN NORTH AMERICA, INC.

Front of center console

RH side of instrument panel [view with fuse block (J/B) removed]

No.	Component	Function
1.	IPDM E/R	IPDM E/R detects push-button ignition switch (push switch) status, and transmits push-button ignition switch status signal (CAN) to BCM. IPDM E/R receives ignition relay-1 IPDM E/R) control signal and ignition switch ON signal (CAN) from BCM, and controls ignition relay-1 (built in IPDM E/R)
2.	BCM	BCM controls power distribution system. BCM judges ignition switch status by push-button ignition switch (push switch) and vehicle condition. BCM checks the ignition switch status internally.
3.	Stop lamp switch	Stop lamp switch detects that brake pedal is depressed, and transmits the signal to BCM.
4.	Push-button ignition switch	Refer to Push-Button Ignition Switch .
5.	A/T shift selector	A/T shift selector detects shift lever status, transmits detent switch signal to BCM.
6.	Accessory relay-1 [in fuse block (J/B)]	Accessory relay-1 is controlled by BCM. Accessory relay-1 supplies accessory power supply or ignition ON signal to each ECU when ignition switch ON. BCM compares status of accessory relay-1 control signal, and ignition switch position judged by BCM.
