System Description
>>
Power Window System
>>
Power Window and Door Lock/Unlock Switch RH

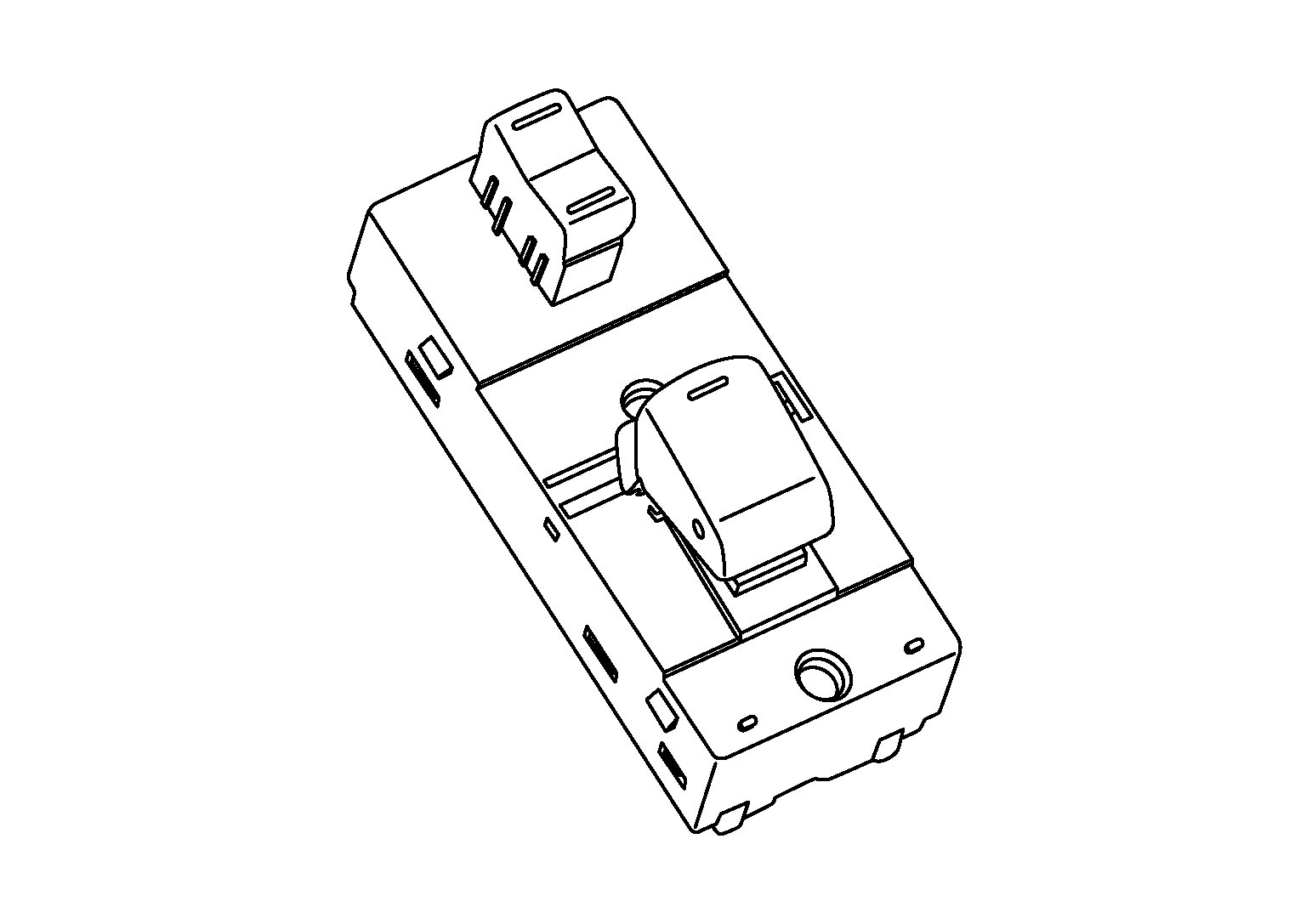

Power Window and Door Lock/Unlock Switch RH
Power window and door lock/unlock switch RH transmits AUTO UP/DOWN signal to front power window motor RH.
Courtesy of NISSAN NORTH AMERICA, INC.
Receives AUTO UP/DOWN signal from BCM and then transmits to front power window motor RH.
Receives encoder pulse signal and then controls anti-pinch system.
Courtesy of NISSAN NORTH AMERICA, INC.
