Removal and Installation: Removal

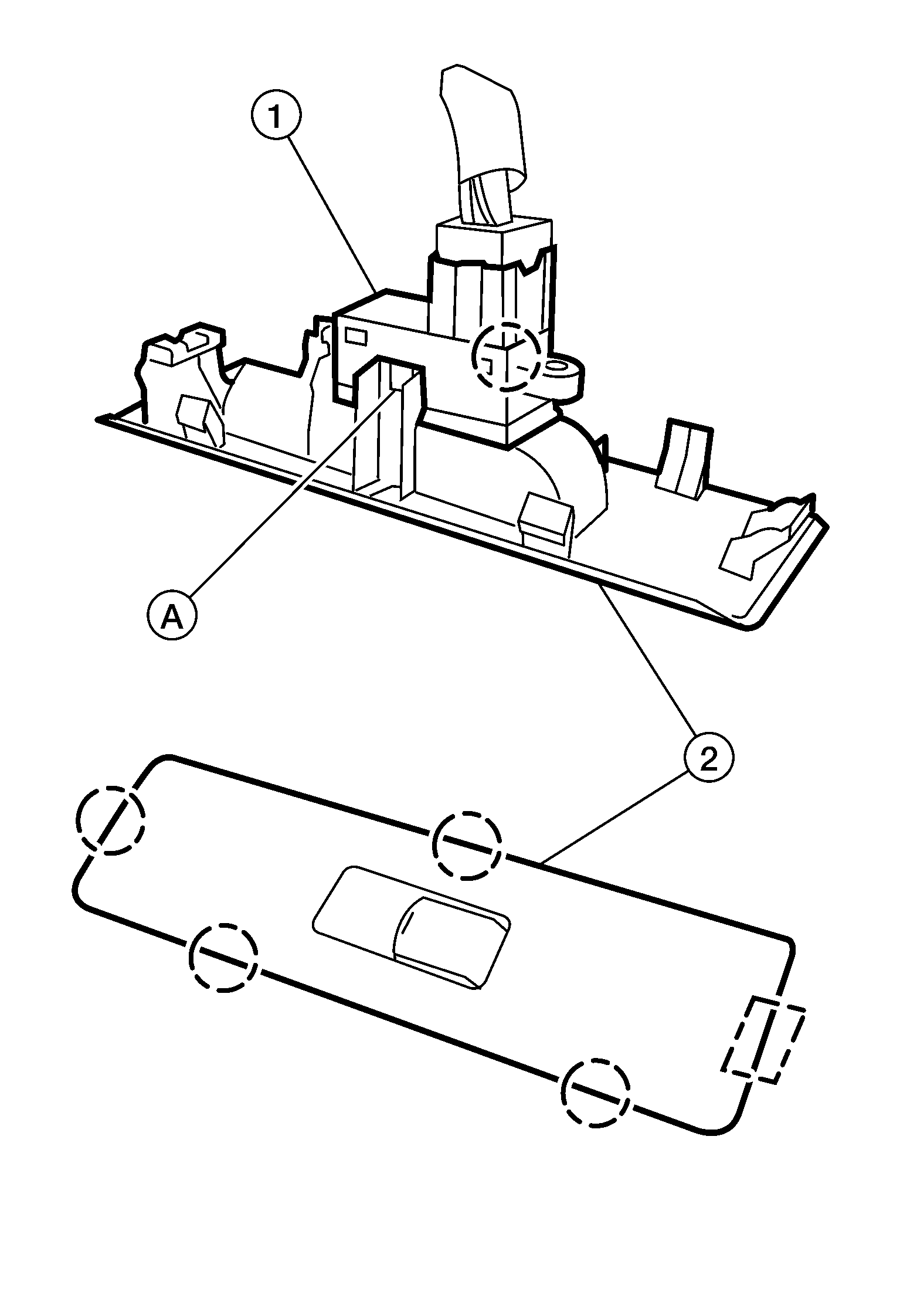

  1. Using a suitable tool, release the metal clip and pawls, then lift upward the rear power window switch (1) and finisher (2) as an assembly.
    GNSDB122878Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Pawl

  2. Disconnect the harness connector from the rear power window switch (1).
  3. Remove the rear power window switch and finisher assembly from the rear door finisher.
  4. Release the two tabs (A), one on each side, then separate the rear power window switch (1) from the rear power window switch finisher (2).
