Disassembly and Assembly: Assembly

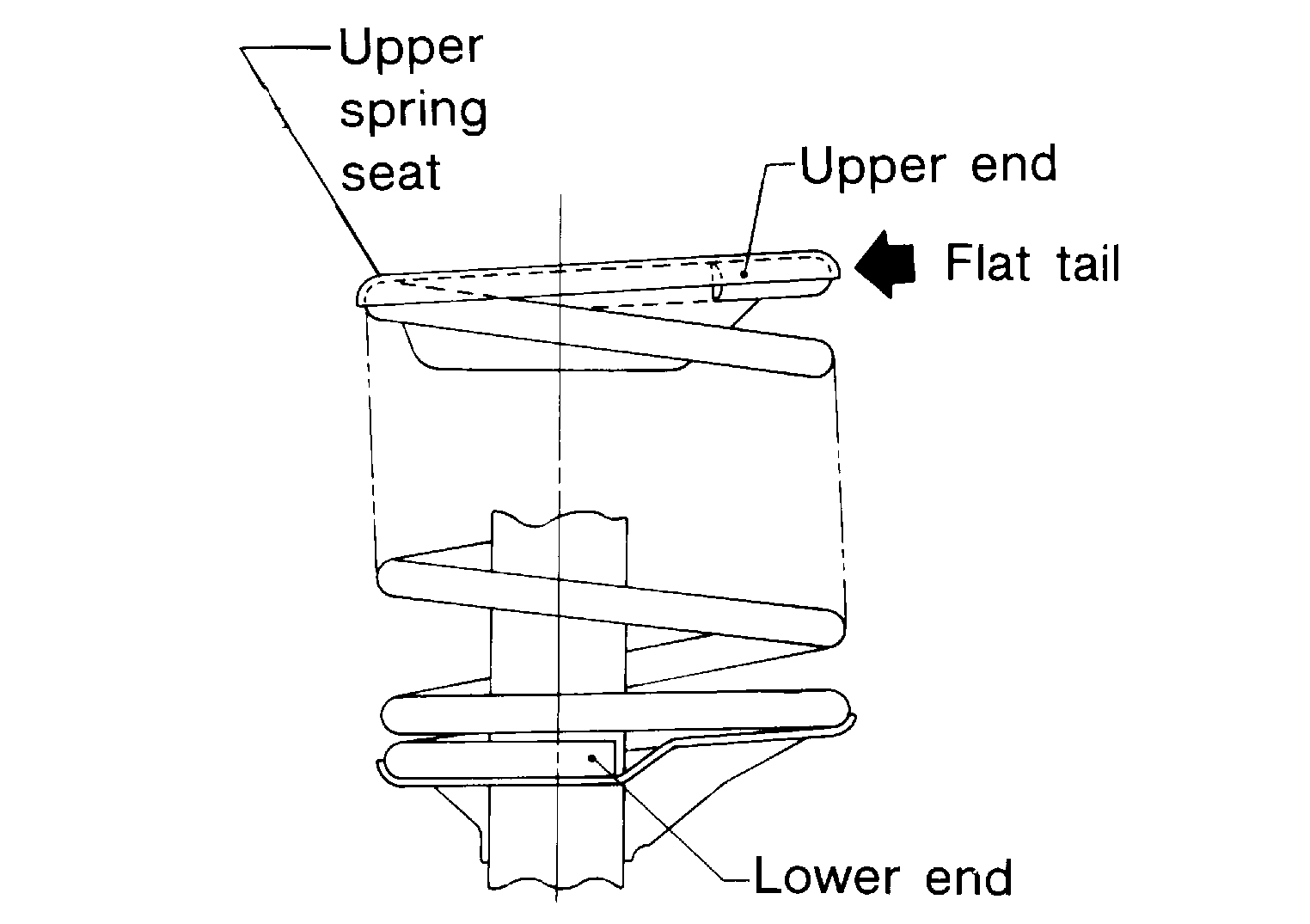

  1. When installing coil spring on strut, it must be positioned as shown, below.
    G04150442Courtesy of NISSAN NORTH AMERICA, INC.

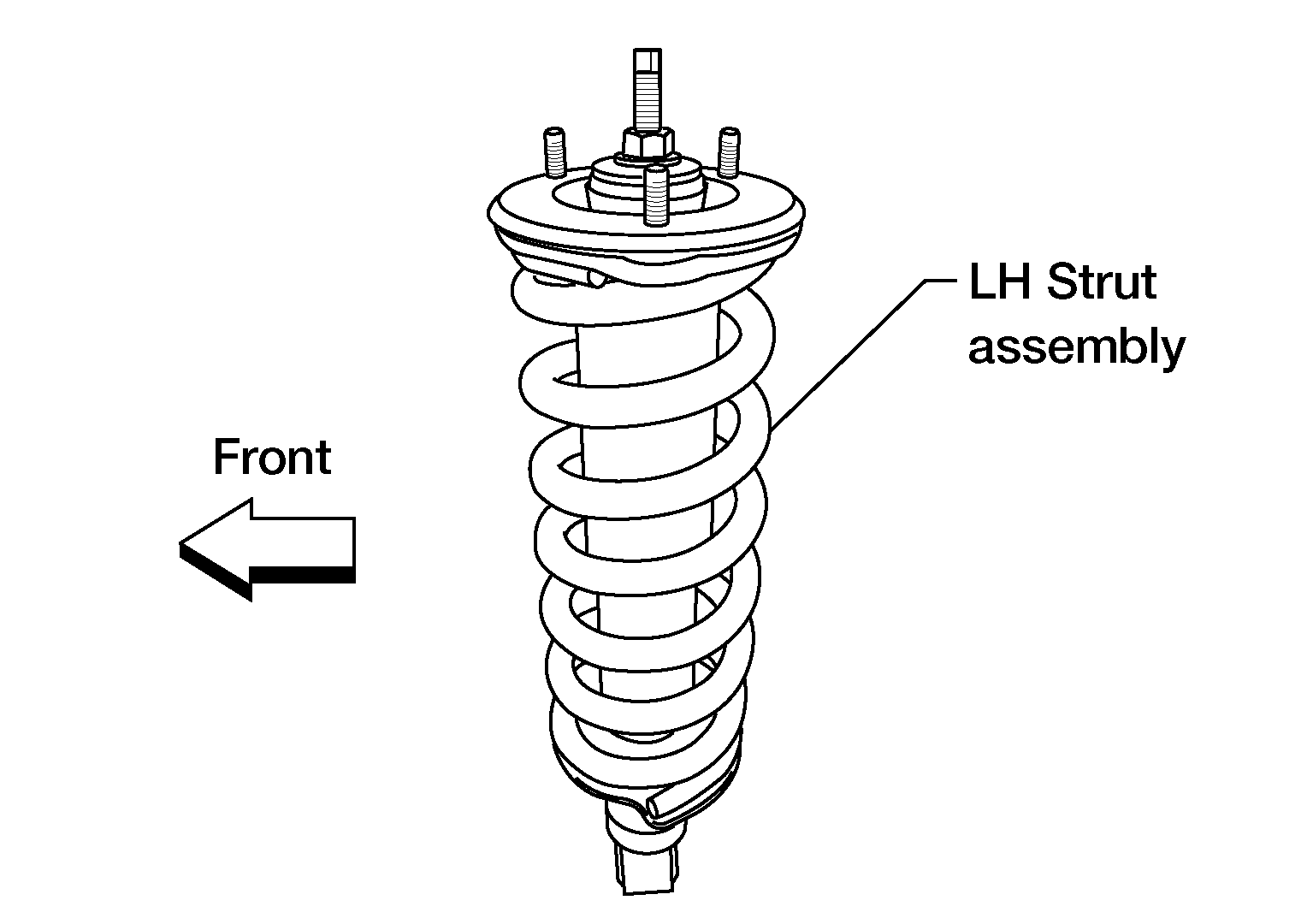

  2. Install the shock absorber insulator as shown below, in line with lower shock mount and step in lower seat.
    G04150443Courtesy of NISSAN NORTH AMERICA, INC.
    • The step in the strut assembly lower seat faces outside of vehicle.
  3. Tighten the new piston rod lock nut to specification. Refer to Component .
    CAUTION: Do not reuse piston rod lock nut.
  4. Remove commercial service tool.
