Torque Distribution Flow

WARNING: This page is about a different variant/trim than selected.

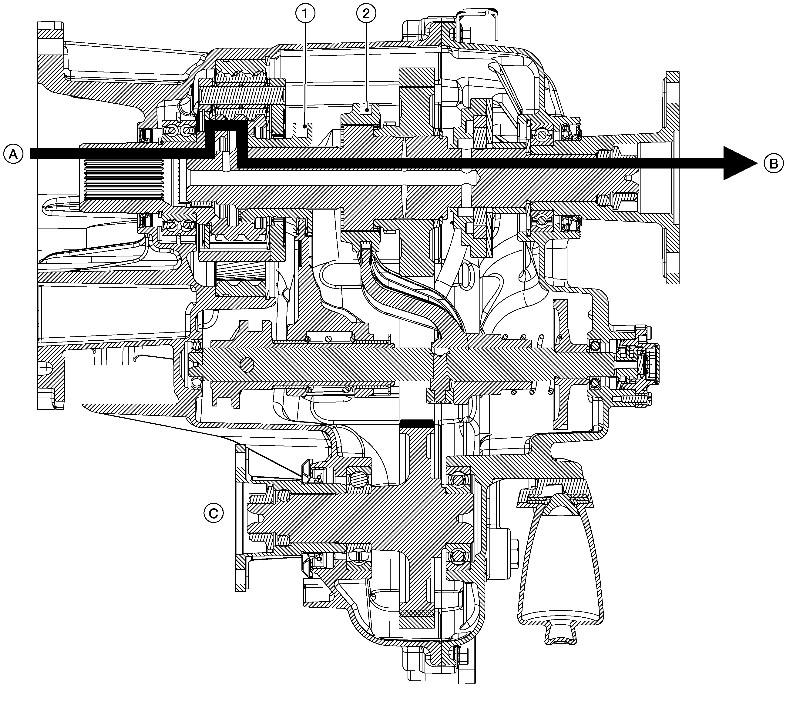

2WD Mode

G00594488Courtesy of NISSAN NORTH AMERICA, INC.

1.

H-L sleeve

2.

2-4 sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft

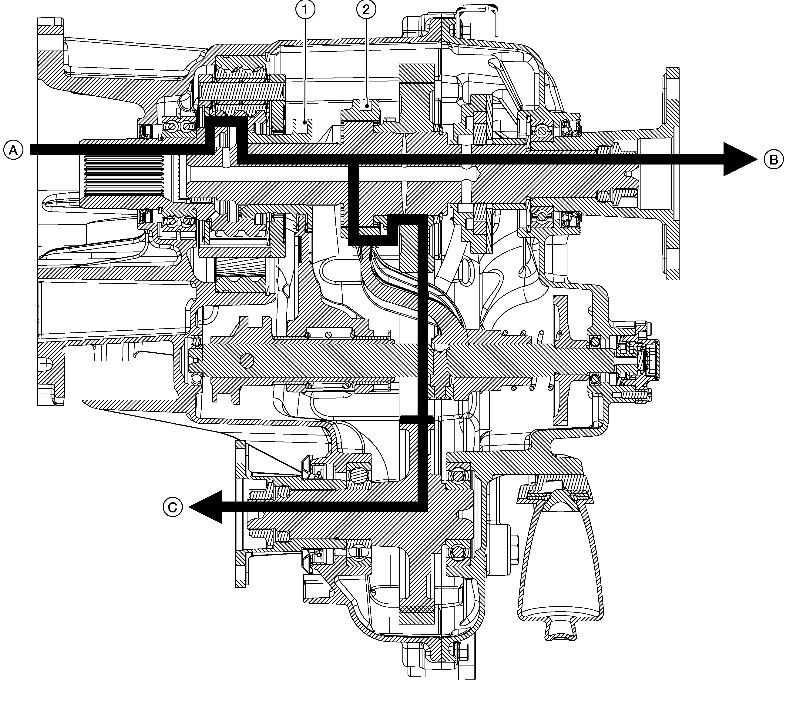

4H Mode

G00594489Courtesy of NISSAN NORTH AMERICA, INC.

1.

H-L sleeve

2.

2-4 sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft

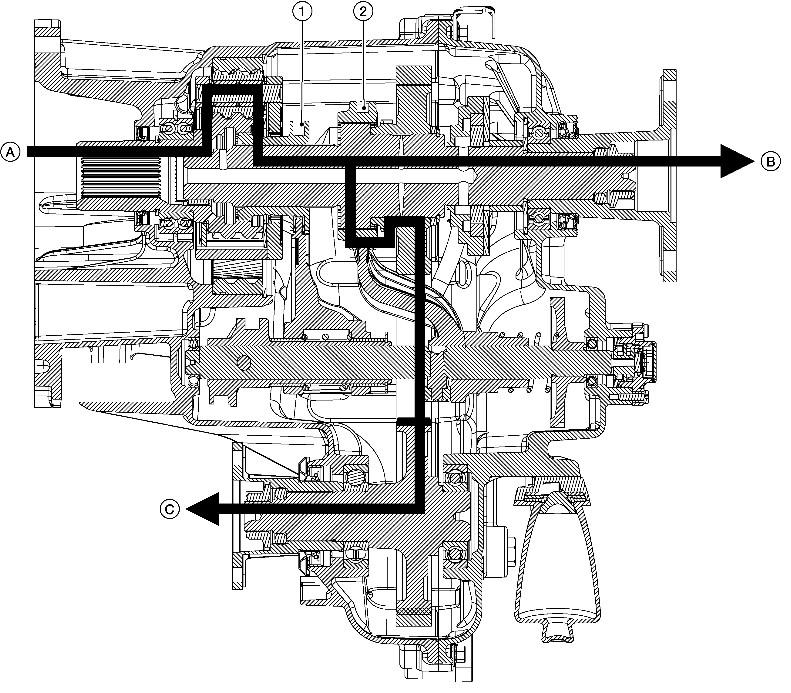

4LO Mode

G00594490Courtesy of NISSAN NORTH AMERICA, INC.

1.

H-L sleeve

2.

2-4 sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft
