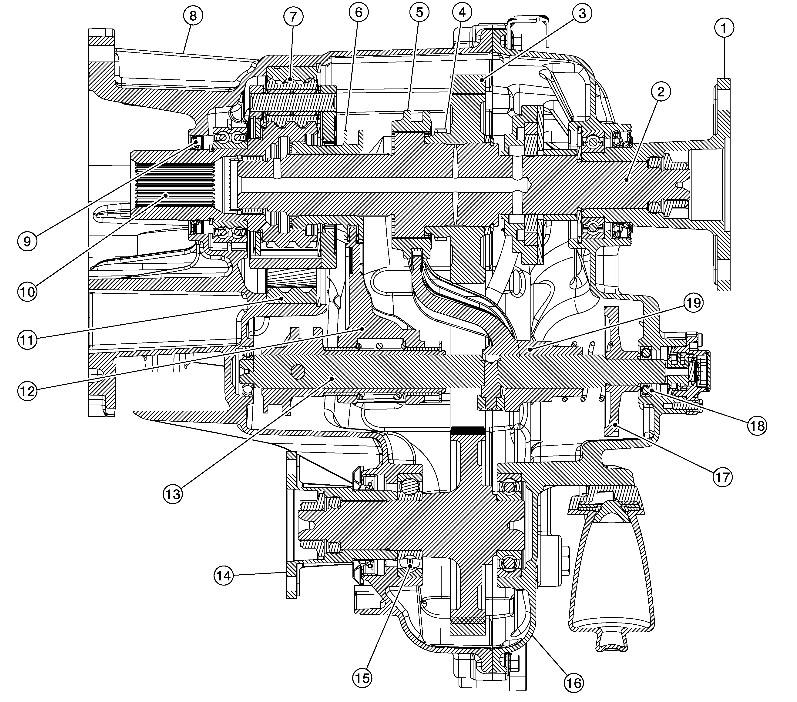

Sectional View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Rear companion flange |
2. |
Main shaft |
3. |
Drive chain |
|
4. |
Sprocket |
5. |
2-4 sleeve |
6. |
H-L sleeve |
|
7. |
Sun gear |
8. |
Front case |
9. |
Input bearing |
|
10. |
Input shaft |
11. |
Internal gear |
12. |
Range fork |
|
13. |
Actuator shaft |
14. |
Front companion flange |
15. |
Front bearing |
|
16. |
Rear case |
17. |
Shift rail gear |
18. |
Shift rail bearing |
|
19. |
Mode fork |
||||
