Mode Sensor
WARNING: This page is about a different variant/trim than selected.

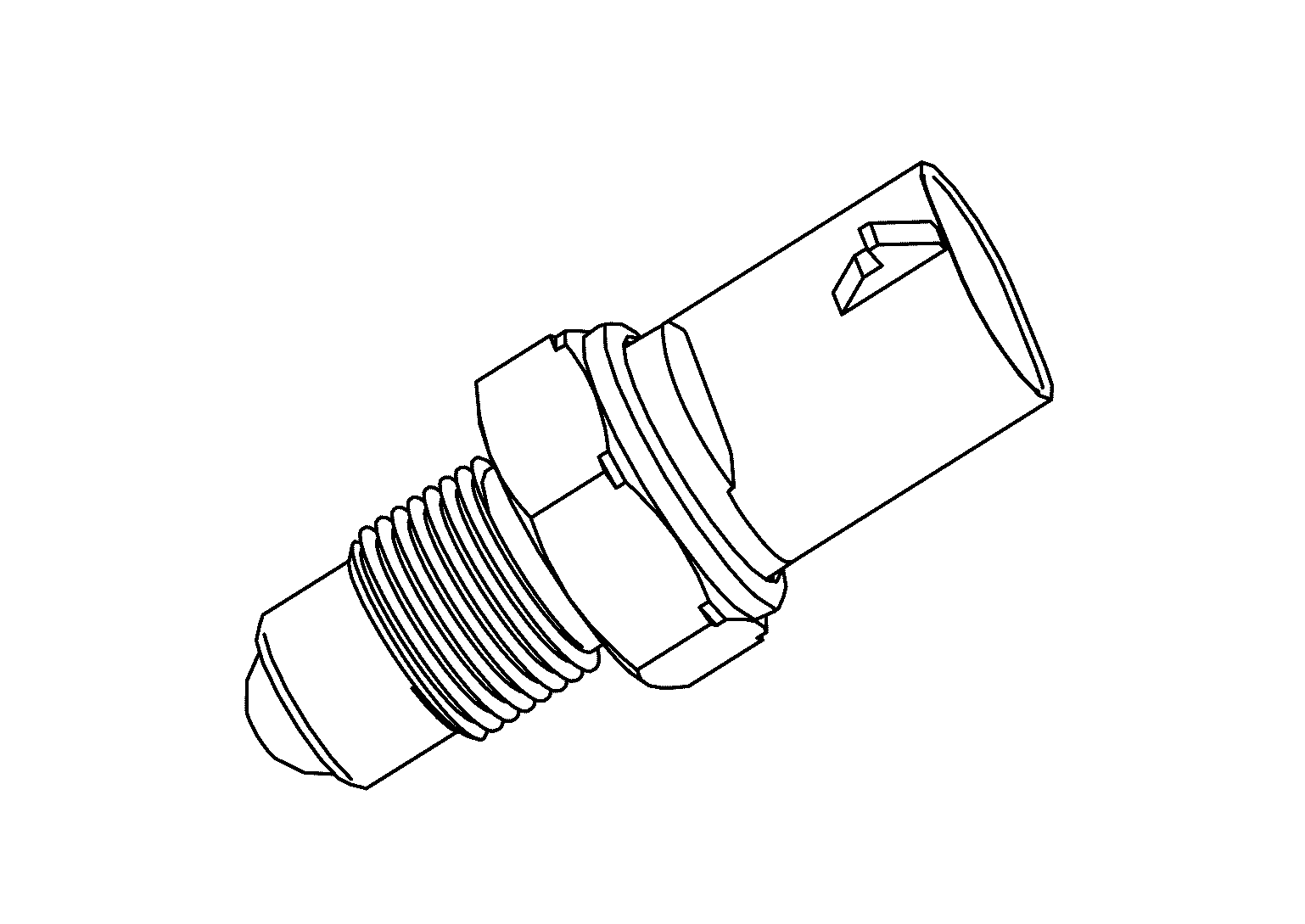

- Mode sensor is installed to top of transfer assembly.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Mode sensor detects engagement status of 2WD-4H sleeve and transmits signal to transfer control unit.
|
Item
|
4WD mode
|
|
2WD
|
4H
|
4LO
|
|
Mode sensor
|
OFF
|
ON
|
ON
|
