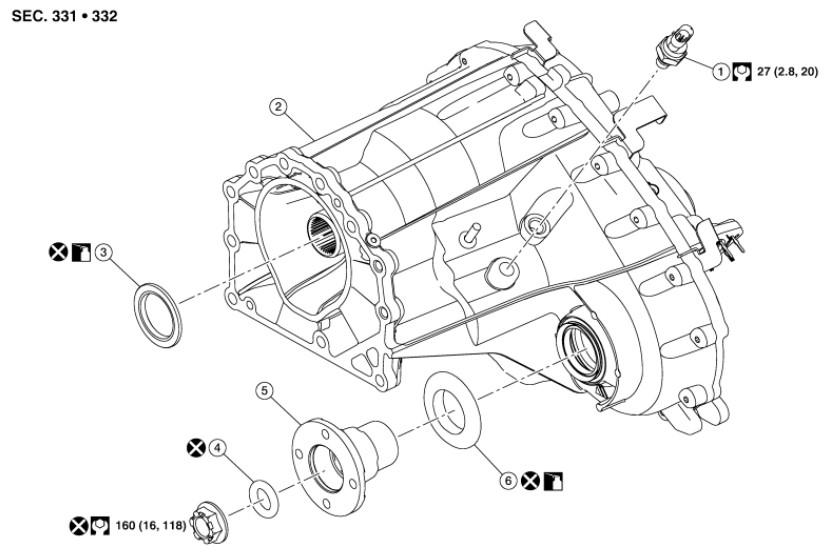

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Range sensor |
2. |
Transfer assembly |
3. |
Input oil seal |
|
4. |
O-ring |
5. |
Front companion flange |
6. |
Front oil seal |
|
7. |
Transfer motor |
8. |
Transfer rotary position sensor |
9. |
O-ring |
|
10. |
Rear companion flange |
11. |
Rear oil seal |
12. |
Mode sensor |
