Exploded View

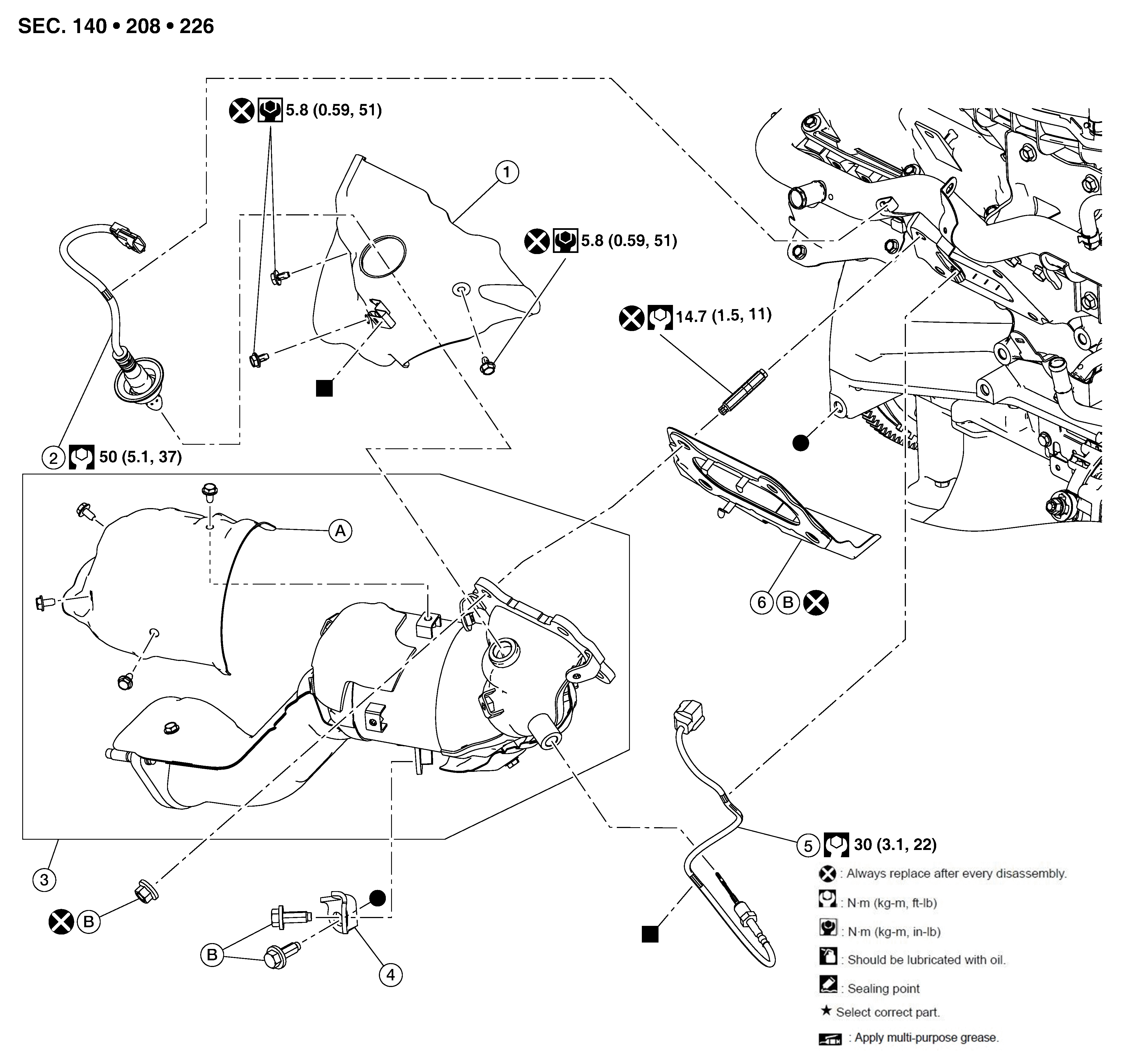

Fig 1: Catalyst Components With Torque Specifications - Bank 1

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Heat shield	2.	Air fuel ratio (A/F) sensor 1 (bank 1)	3.	Catalyst
4.	Catalyst gusset	5.	Exhaust gas temperature sensor (bank 1)	6.	Gasket
A.	Catalyst (bank 1) cover	B.	Refer to Removal and Installation .

, : Indicates that the part is connected at points with the same symbol in actual vehicle.
