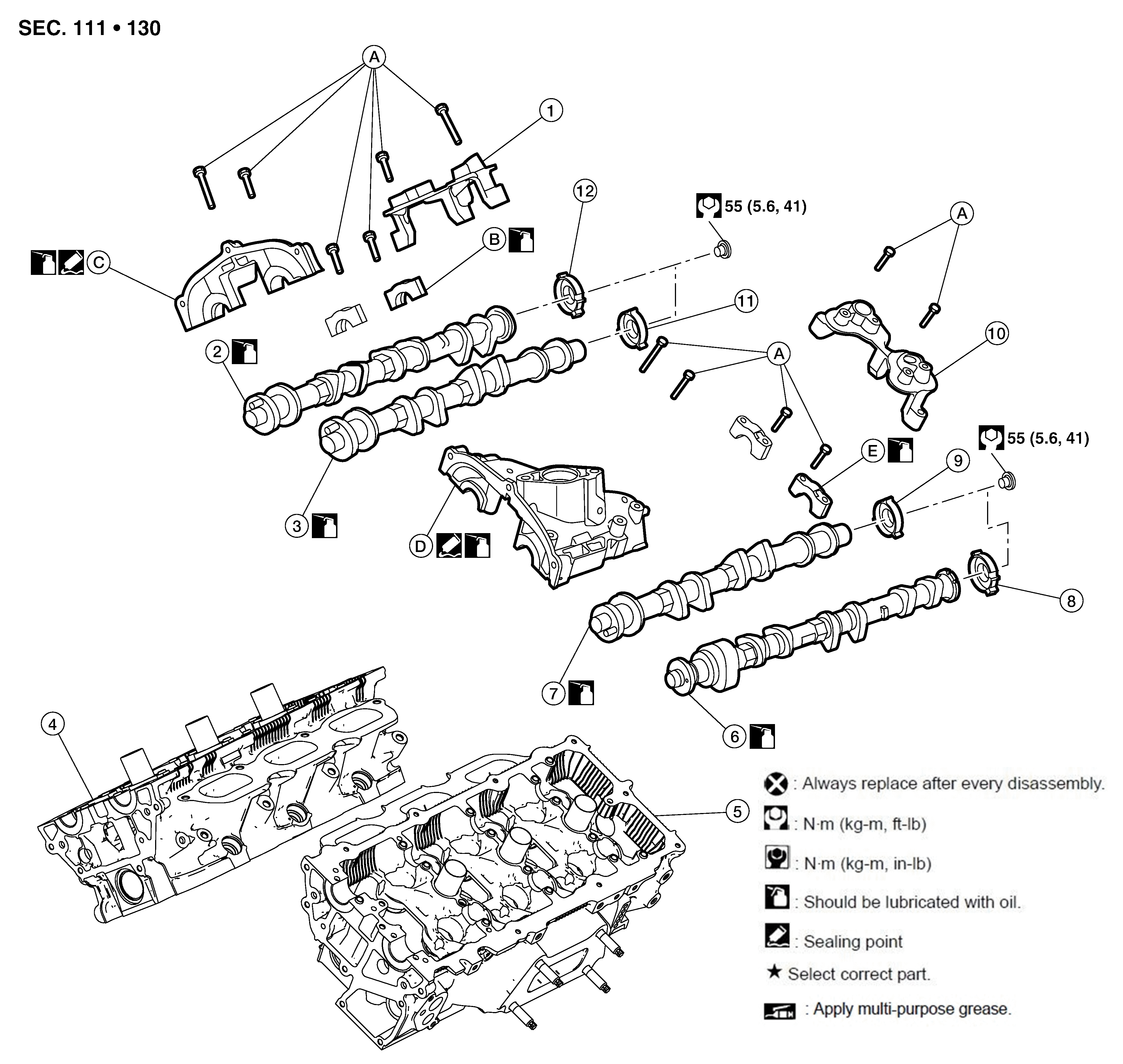

Exploded View

1.

Camshaft position sensor (bank 1)

2.

Exhaust camshaft (bank 1)

3.

Intake camshaft (bank 1)

4.

Cylinder head (bank 1)

5.

Cylinder head (bank 2)

6.

Exhaust camshaft (bank 2)

7.

Intake camshaft (bank 2)

8.

Exhaust camshaft (bank 2) signal plate

9.

Intake camshaft (bank 2) signal plate

10.

Camshaft position sensor (bank 2)

11.

Intake camshaft (bank 1) signal plate

12.

Exhaust camshaft (bank 1) signal plate

A.

Refer to Removal and Installation .

B.

Camshaft bracket [No. 2 to 4 (bank 1)]

C.

Camshaft bracket [No. 1 (bank 1)]

D.

Camshaft bracket [No. 1 (bank 2)]

E.

Camshaft bracket [No. 2 to 4 (bank 2)]
