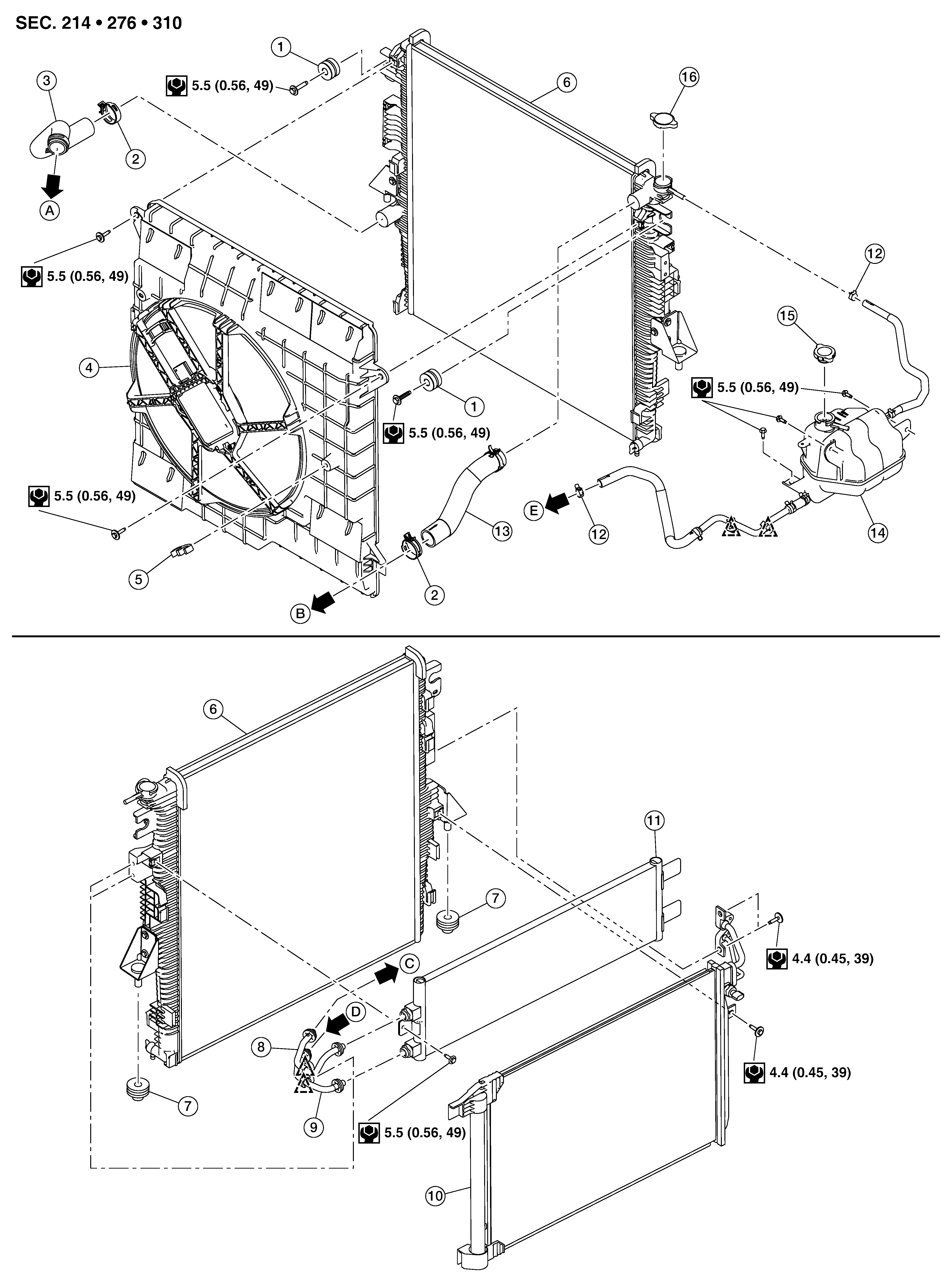

Exploded View
|
1. |
Mounting rubber (upper) |
2. |
Clamp |
3. |
Radiator hose (upper) |
|
4. |
Cooling fan assembly |
5. |
Clip |
6. |
Radiator |
|
7. |
Mounting rubber (lower) |
8. |
A/T fluid cooler hose |
9. |
A/T fluid cooler hose |
|
10. |
Condenser |
11. |
A/T fluid cooler |
12. |
Clamp |
|
13. |
Radiator hose (lower) |
14. |
Reservoir tank assembly |
15. |
Reservoir tank cap |
|
16. |
Radiator cap |
A. |
To water inlet and thermostat assembly. Refer to Exploded View . |
B. |
To water pipe. Refer to Exploded View . |
|
C. |
To A/T fluid cooler hose. Refer to Exploded View . |
D. |
From A/T fluid cooler hose. Refer to Exploded View . |
E. |
To water pipe. Refer to Exploded View . |
|
Clip |
|||||
