System Control Condition Display

Quickly push (less than 1.5 seconds) and release the MAIN switch ON.

The MAIN switch indicator (cruise indicator), set distance indicator, own vehicle indicator, and set vehicle speed indicator come on and ICC system is set to a standby state.

Condition			Display on information display

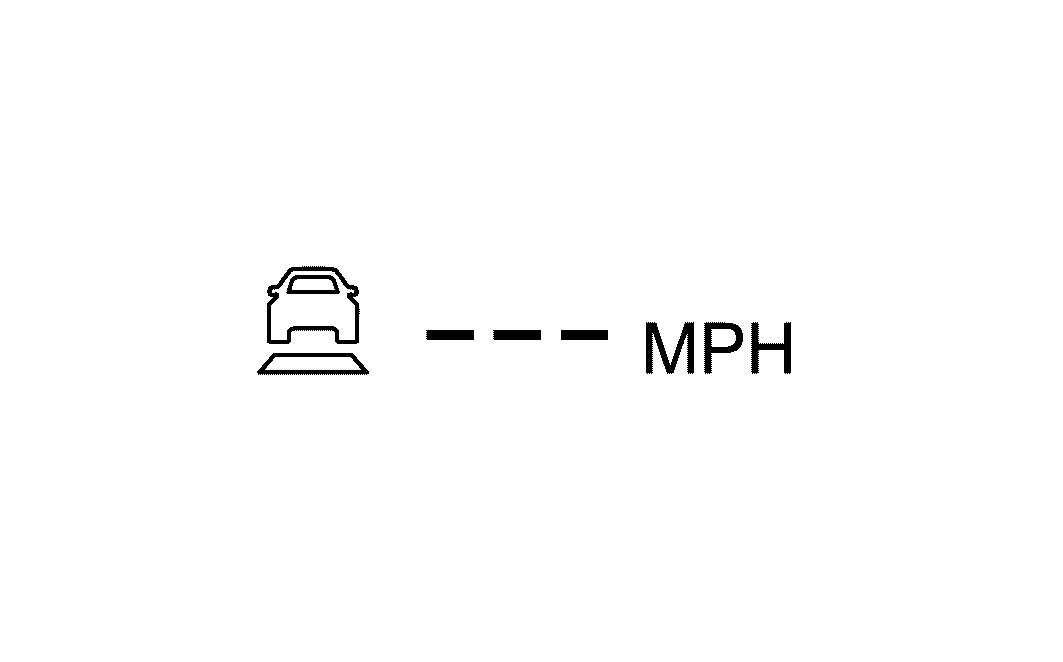

Standby mode			ICC system ON indicator: Gray Set vehicle speed indicator: -- Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.

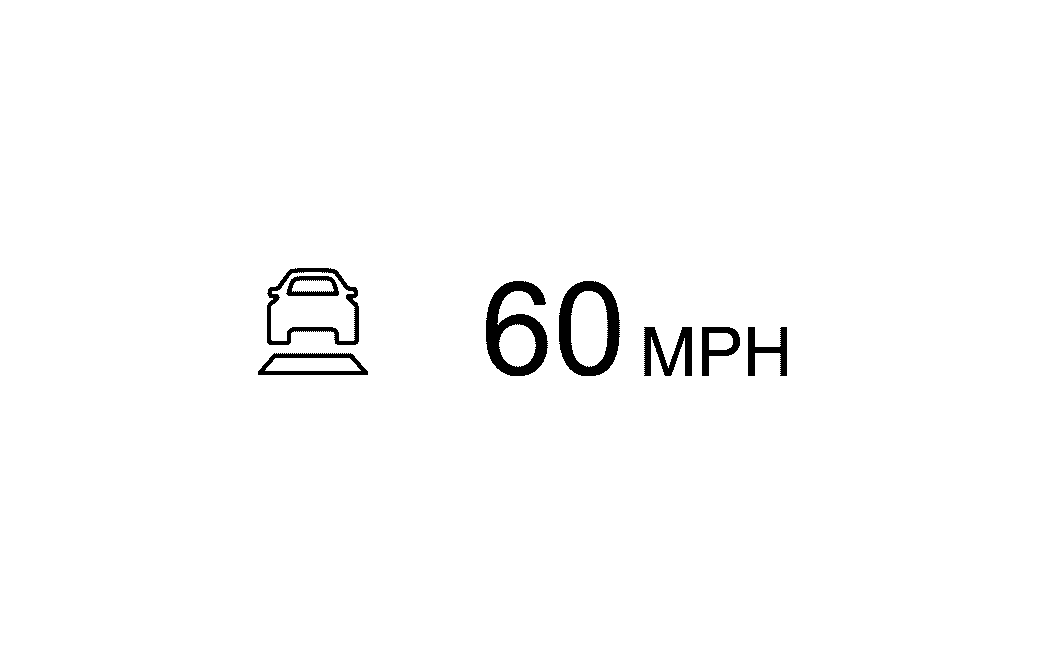

Control mode	Without a vehicle ahead	Set vehicle distance (Long)	ICC system set indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	ICC system set indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Short)	ICC system set indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.

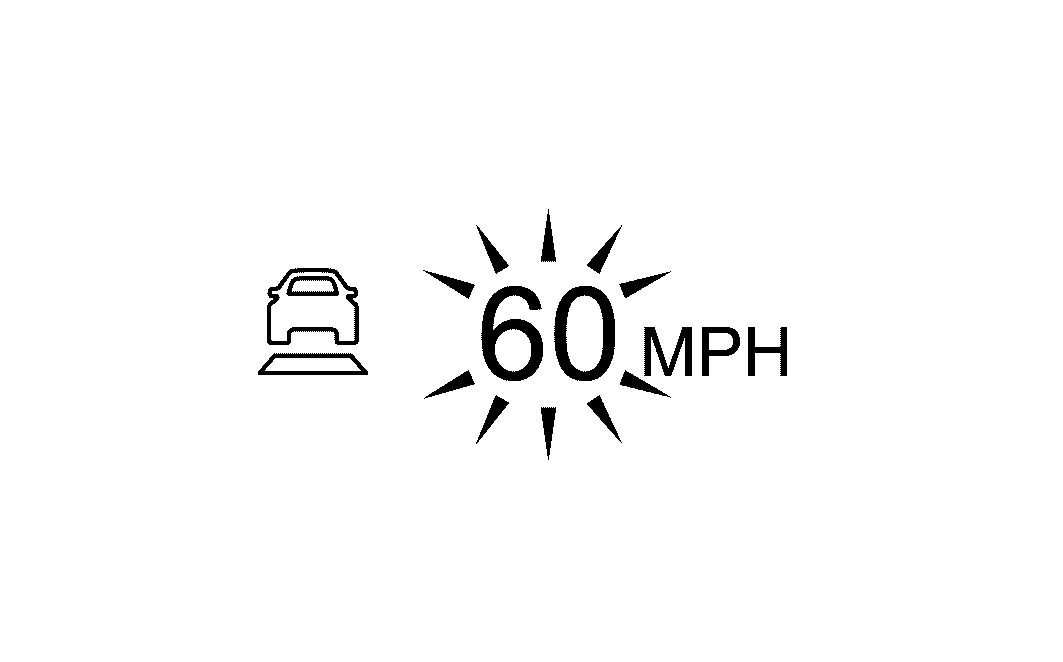

		When the vehicle speed exceeds the set speed	ICC system set indicator: Green Set vehicle speed indicator: Green (Blink) Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.

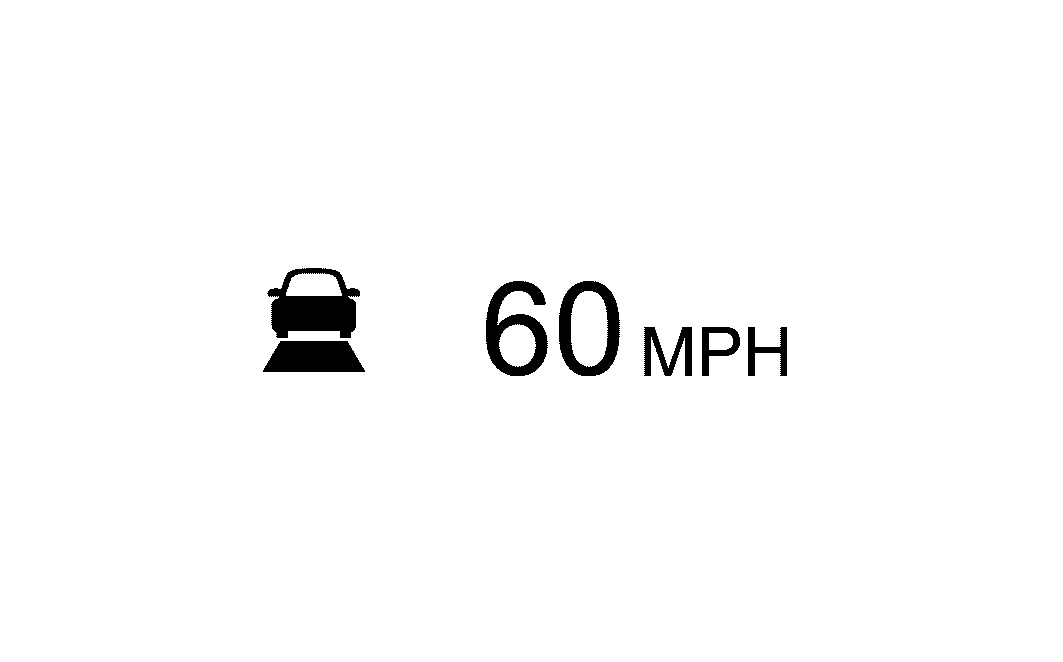

Control mode	With a vehicle ahead	Set vehicle distance (Long)	ICC system set indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	ICC system set indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Short)	ICC system set indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.

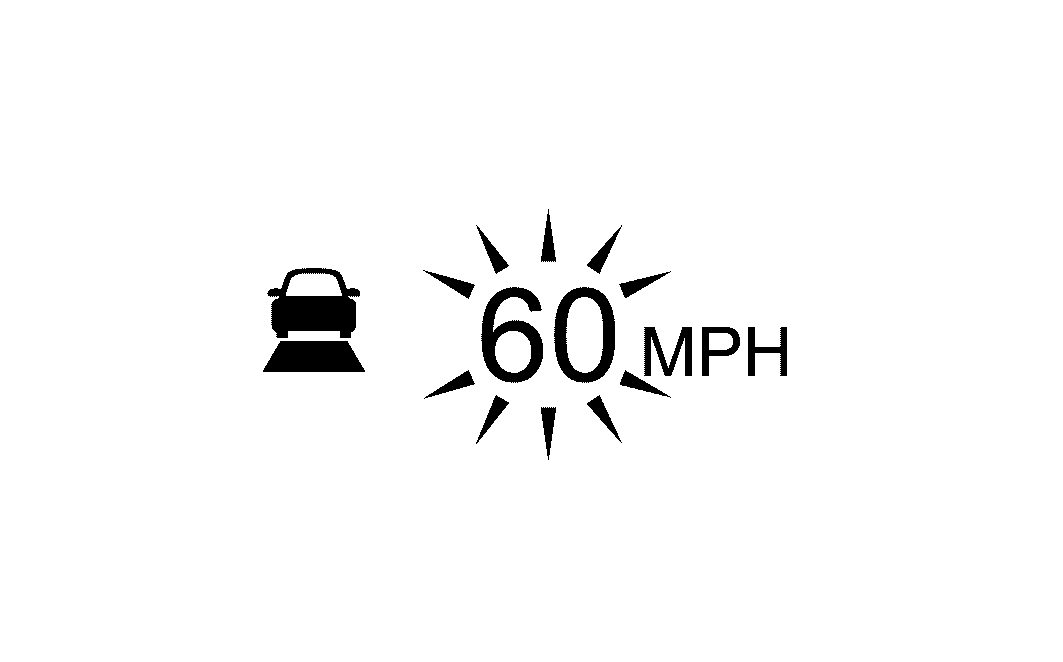

		When the vehicle speed exceeds the set speed	ICC system set indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.
