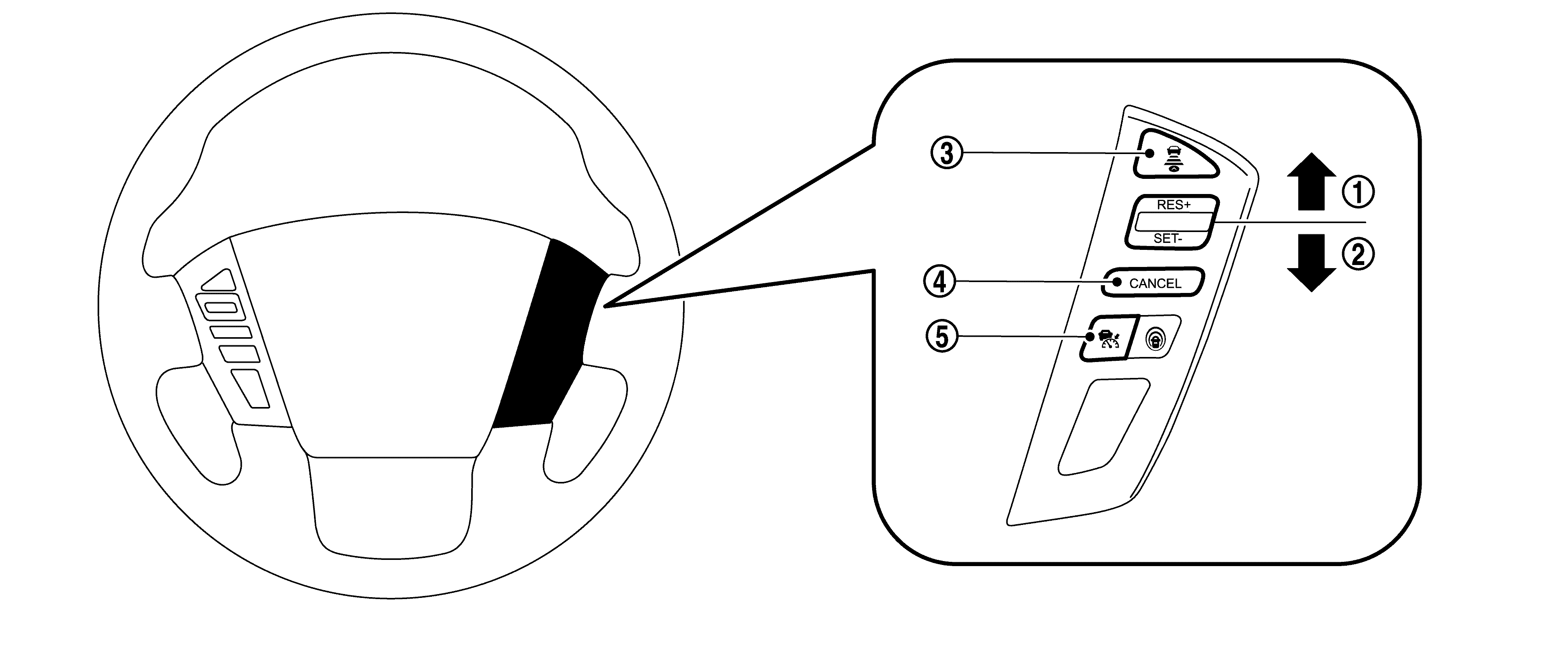

Switch Name And Function

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	RESUME/ACCELERATE switch	Resumes set speed or increases speed incrementally Push and hold the switch to increase the set speed by 5 km/h (5 MPH) Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
	SET/COAST switch	Sets desired cruise speed or reduces speed incrementally Push and hold the switch to decrease the set speed by 5 km/h (5 MPH) Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH) NOTE: The minimum set speed is 30 km/h (20 MPH)
	DISTANCE switch	Changes the following distance from: Long, Middle, Short
	CANCEL switch	Deactivates the system without erasing the set speed
	MAIN switch	Master switch to activate the system (Press for less than 1.5 seconds)
