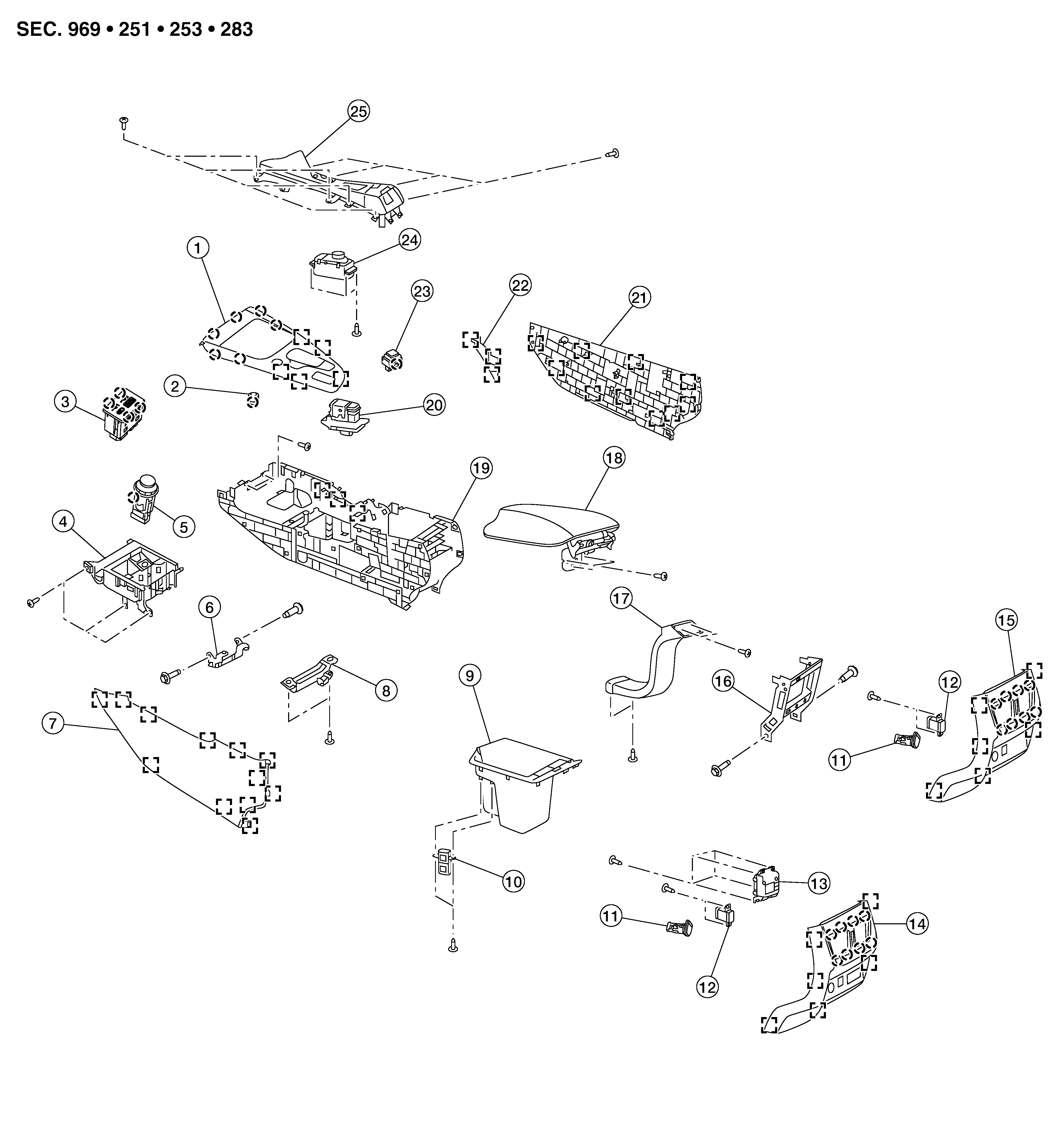

Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shift selector finisher	2.	Push button ignition switch	3.	Front Auxiliary Input Jacks
4.	Center console cup holder	5.	Front power socket	6.	Center console brace
7.	Center console finisher (LH)	8.	Inside key antenna (center console)	9.	Center console bin
10.	Front USB charge port	11.	Console power socket	12.	Rear USB charge port
13.	Rear air control (with climate controlled seats)	14.	Center console rear finisher (with rear air control)	15.	Center console rear finisher (without rear air control)
16.	Center console rear brace	17.	Rear center ventilator duct	18.	Center console lid
19.	Center console	20.	Electric parking brake switch	21.	Center console finisher (RH)
22.	Center console finisher (upper RH)	23.	Drive mode switch	24.	Multifunction switch
25.	Center console finisher (upper)		Metal clip		Pawl
