Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

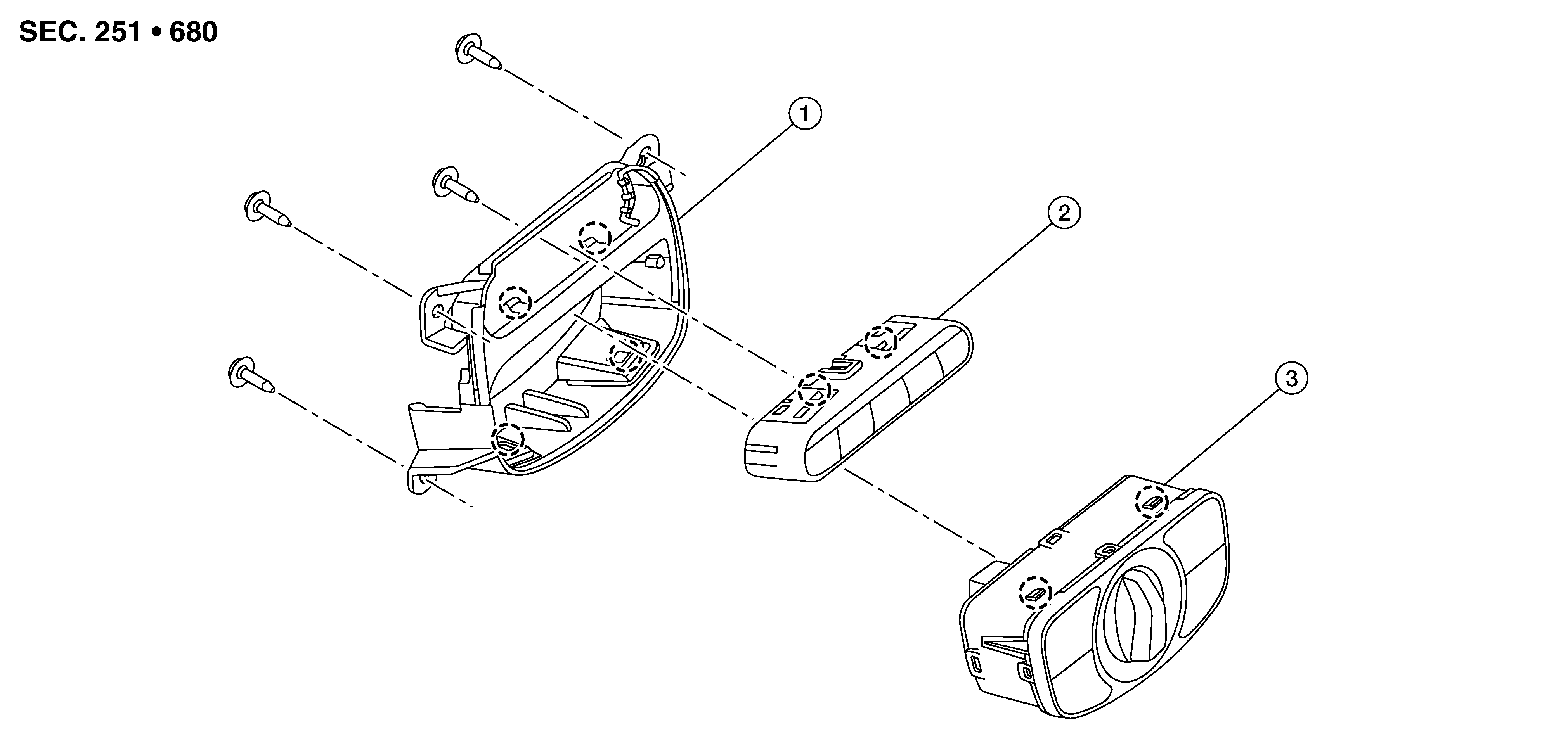

GNSALKIA0274Z-274Courtesy of NISSAN NORTH AMERICA, INC.

1.

Switch carrier

2.

ITS switch assembly

3.

Master light switch

SYMBOL

Pawl
