ACCELERATOR CONTROL SYSTEM : Exploded View

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

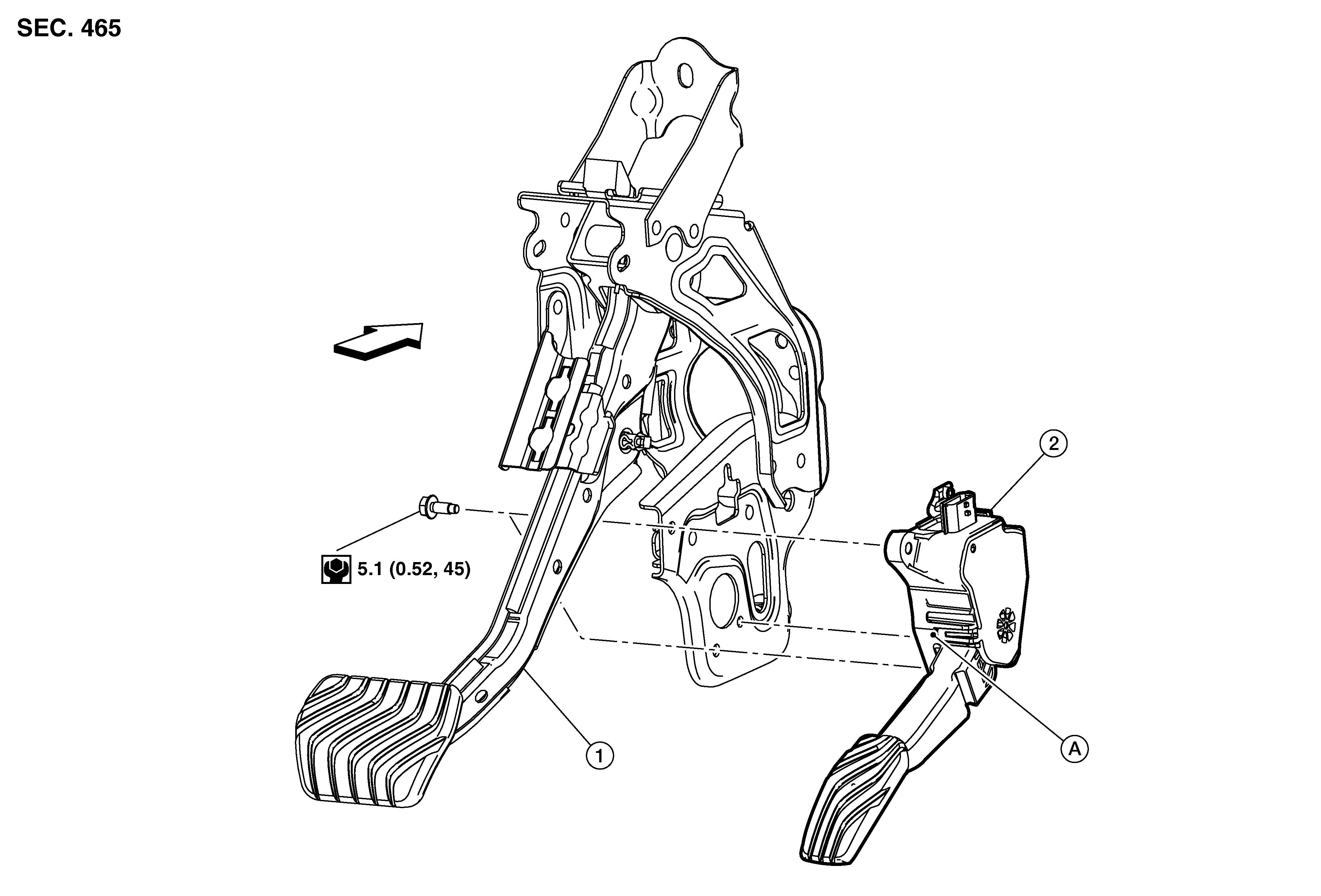

Fig 1: Accelerator Control System Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake pedal assembly	2.	Accelerator pedal assembly	A.	Locator pin
	Front
