Work Procedure

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Always perform the ICC system action test to check that the ICC system operates normally after replacing the distance sensor (ICC sensor) or repairing any ICC system malfunction.

CAUTION:
  • Always drive safely when performing the action test.
NOTE:
  • When there is no vehicle ahead, drive at the set speed steadily.
  • When there is a vehicle ahead, control to maintain distance from the vehicle ahead, watching its speed.
  • The running speed can be set between 32 km/h (20 MPH) and 144 km/h (90 MPH).
CAUTION: Never set the cruise speed exceeding the posted speed limit.

Work Procedure (Vehicle-To-Vehicle Distance Control Mode)

  1. CHECK FOR MAIN SWITCH
    1. Start the engine.

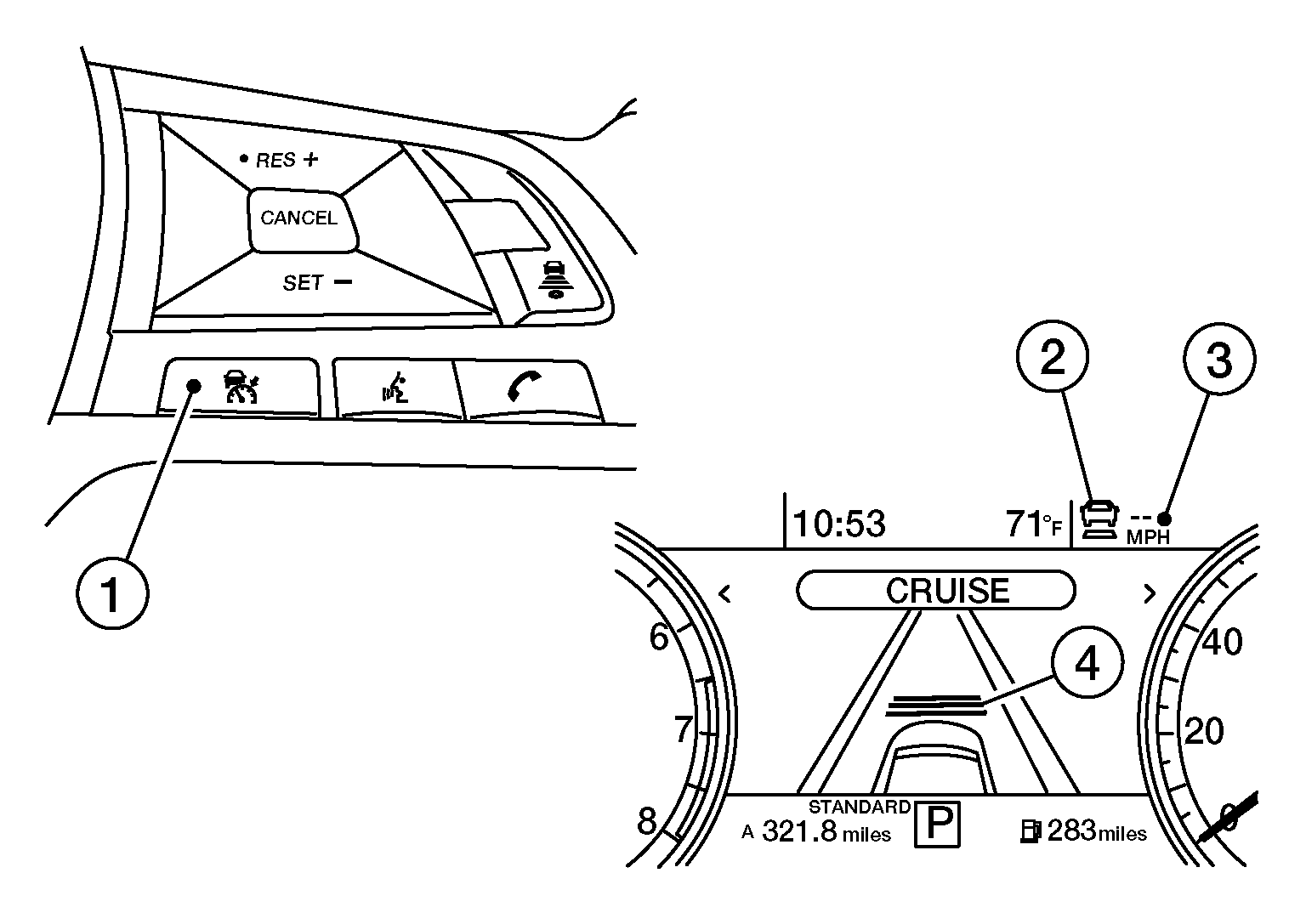

    2. Press the MAIN switch (1) (less than 1.5 seconds).
      GNSALOIA0253Z-253Courtesy of NISSAN NORTH AMERICA, INC.

      Information display status

      MAIN switch indicator (2)

      :

      ON

      Set vehicle speed indicator (3)

      :

      "----"

      "km/h" ("MPH")

      Set distance indicator (4)

      :

      Long mode
    3. Check the ICC system display on the information display to check that the vehicle-to-vehicle distance control mode is ready for activation.
    4. Press the MAIN switch, and check that the ICC system display on the information display turns OFF when the ICC system is deactivated.
    5. Check that the ICC system display on the information display turns OFF after starting the engine again.

    GO TO 2.

  2. CHECK FOR DISTANCE SWITCH
    1. Start the engine.
    2. Press the MAIN switch (less than 1.5 seconds).
    3. Press the DISTANCE switch.
    4. Check that the set distance indicator changes display in order of: (Long)->(Middle)->(Short).
      GNSALOIA0597GB-597Courtesy of NISSAN NORTH AMERICA, INC.
      NOTE: When the MAIN switch is turned ON, initial setting set to (Long).

    GO TO 3.

  3. CHECK FOR RES +, SET - AND CANCEL SWITCHES
    1. Check that RES +, SET -, CANCEL switches are operated smoothly.
    2. Check that switches come up as hand is released from the switches.

    GO TO 4.

  4. SET CHECKING (1)
    1. Start the engine.
    2. Press the MAIN switch (less than 1.5 seconds) and turn the vehicle-to-vehicle distance control mode ON.
    3. Drive the vehicle at 32 km/h (20 MPH) or more.
    4. Push down the SET - switch.
    5. Check that the desired speed is set and vehicle-to-vehicle distance control mode control starts when releasing SET - switch.
    NOTE: The set vehicle speed is indicated on the set vehicle speed indicator in the ICC system display on the information display.

    GO TO 5.

  5. CHECK FOR INCREASE OF CRUISING SPEED (1)
    1. Set the vehicle-to-vehicle distance control mode at desired speed.
    2. Check that the set speed increases by 1 km/h (1 MPH) as RES +, switch is pushed up.
    NOTE: The maximum set speed of the vehicle-to-vehicle distance control mode is 144 km/h (90 MPH).
    CAUTION: Never set the cruise speed exceeding the posted speed limit.

    GO TO 6.

  6. CHECK FOR DECREASE OF CRUISING SPEED (1)
    1. Set the vehicle-to-vehicle distance control mode at desired speed.
    2. Check that the set speed decreases by 1 km/h (1 MPH) as SET - switch is pushed down.
    NOTE:
    • The minimum set speed is approximately 32 km/h (20 MPH).
    • Cancel the control automatically when the vehicle speed is less than approximately 24 km/h (15 MPH) and when the system does not detect any vehicle ahead.

    GO TO 7.

  7. SET CHECKING (2)
    1. Stop the vehicle.
    2. Drive the vehicle at less than approximately 32 km/h (20 MPH).
    3. Push down the SET - switch when the system detects a vehicle ahead.
    4. Check that the vehicle-to-vehicle distance control mode is performed so that the vehicle maintains a proper distance according to the vehicle speed [maximum: approximately 32 km/h (20 MPH)] when releasing SET - switch.
    NOTE:
    • The vehicle-to-vehicle distance control mode cannot be set when the vehicle speed is less than 32 km/h (20 MPH) and when a vehicle ahead is not detected.
    • Cancel the control automatically when the vehicle speed is 24 km/h (15 MPH) or less during the control and when the system does not detect any vehicle ahead.
    • The set vehicle speed indicator in the ICC system display on the information display is set to 32 km/h (20 MPH).

    GO TO 8.

  8. CHECK FOR INCREASE OF CRUISING SPEED (2)
    1. Set the vehicle-to-vehicle distance control mode when the vehicle speed is less than approximately 32 km/h (20 MPH) and when a vehicle ahead is detected.
    2. Check that the set speed increases by 1 km/h (1 MPH) as RES + switch is pushed up.
    NOTE: The maximum set speed of the vehicle-to-vehicle distance control mode is 144 km/h (90 MPH).
    CAUTION: Never set the cruise speed exceeding the posted speed limit.

    GO TO 9.

  9. CHECK FOR DECREASE OF CRUISING SPEED INSPECTION (2)
    1. Set the vehicle-to-vehicle distance control mode when the vehicle speed is less than approximately 32 km/h (20 MPH) and when a vehicle ahead is detected.
    2. Set the set vehicle speed to the desired vehicle speed according to "check for increase of cruising speed".
    3. Check that the set speed decreases by 1 km/h (1 MPH) as SET - switch is pushed down.
    NOTE:
    • The minimum set speed is approximately 32 km/h (20 MPH).
    • If the vehicle ahead comes to a stop, the vehicle decelerates to a standstill within the limitations of the system. The system will cancel once it judges a standstill with a warning chime.
    CAUTION: The creep occurs because the stop status is not maintained.

    GO TO 10.

  10. CHECK FOR CANCELLATION OF VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE

    Check that the vehicle-to-vehicle distance control mode is canceled when performing the following operations.

    • When the brake pedal is depressed after vehicle-to-vehicle distance control mode is set and the vehicle is driven.
    • When the shift lever is in the "N" position after vehicle-to-vehicle distance control mode is set and the vehicle is driven.
    • When the MAIN switch is turned OFF after vehicle-to-vehicle distance control mode is set and the vehicle is driven.
    • When the CANCEL switch is pressed after vehicle-to-vehicle distance control mode is set and the vehicle is driven.

    GO TO 11.

  11. CHECK FOR RESTORING SPEED THAT IS SET BY VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE BEFORE CANCELLATION

    Check that the vehicle restores the previous speed kept before the system deactivation when performing the following operations.

    • Drive the vehicle when the vehicle-to-vehicle distance control mode is set and depress the brake pedal to cancel the control. Check that the vehicle restores the previous vehicle speed kept before the system deactivation when pushing up the RES + switch.
    • Drive the vehicle when the vehicle-to-vehicle distance control mode is set and shift the shift lever to the "N" position to cancel the control. Check that the vehicle restores the previous vehicle speed kept before the system deactivation when shifting the shift lever to the "D" position and pushing up the RESUME + switch.
    • Drive the vehicle when the vehicle-to-vehicle distance control mode is set and press the CANCEL switch to cancel the control. Check that the vehicle restores the previous vehicle speed kept before the system deactivation when pushing up the RES + switch.

    Inspection End.

NOTE: The running speed can be set between 40 km/h (25 MPH) and 144 km/h (90 MPH).
CAUTION: Never set the cruise speed exceeding the posted speed limit.

Work Procedure [Conventional (Fixed Speed) Cruise Control Mode]

  1. CHECK FOR MAIN SWITCH
    1. Start the engine.
    2. Press the MAIN switch (1.5 seconds or more).
    3. Check that the ICC system display on the information display turns on and the display is ready for activation.
    4. Press the MAIN switch, and check that the ICC system display on the information display turns OFF when the ICC system is deactivated.
    5. Check that the ICC system display on the information display turns OFF after starting the engine again.

    GO TO 2.

  2. CHECK FOR RES +, SET -, AND CANCEL SWITCHES
    1. Check that RES +, SET -, CANCEL switches are operated smoothly.
    2. Check that switches come up as hand is released from the switches.

    GO TO 3.

  3. SET CHECKING
    1. Start the engine.
    2. Press the MAIN switch (1.5 seconds or more) and turn the conventional (fixed speed) cruise control mode to ON.
    3. Drive the vehicle at 40 km/h (25 MPH) or more.
    4. Push down the SET - switch.
    5. Check that the desired speed is set and conventional (fixed speed) cruise control mode control starts when releasing SET - switch.
    NOTE:
    • The set vehicle speed is not displayed in the ICC system display on the information display.
    • Display the set status in the ICC system display on the information display.

    GO TO 4.

  4. CHECK FOR INCREASE OF CRUISING SPEED
    1. Set the vehicle speed to any desired speed, and drive the vehicle.
    2. Check that the set speed increases by 1 km/h (1 MPH) as RES + switch is pushed up.
    NOTE:
    • The maximum set speed is 144 km/h (90 MPH).
    • The set vehicle speed increases while pushing up the RES + switch.
    CAUTION: Never set the cruise speed exceeding the posted speed limit.

    GO TO 5.

  5. CHECK FOR DECREASE OF CRUISING SPEED
    1. Set the vehicle speed to any desired speed, and drive the vehicle.
    2. Check that the set speed decreases by 1 km/h (1 MPH) as SET - switch is pushed down.
    NOTE:
    • The minimum set speed is 40 km/h (25 MPH).
    • The set vehicle speed decreases while pressing down the SET - switch.

    GO TO 6.

  6. CHECK FOR CANCELLATION OF CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE

    Check that the conventional (fixed speed) cruise control mode is canceled when performing the following operations.

    • When the brake pedal is depressed after the conventional (fixed speed) cruise control mode is set and the vehicle is driven.
    • When the shift lever is in the "N" position after the conventional (fixed speed) cruise control mode is set and the vehicle is driven.
    • When the MAIN switch is turned OFF after the conventional (fixed speed) cruise control mode is set and the vehicle is driven.
    • When the CANCEL switch is pressed after the conventional (fixed speed) cruise control mode is set and the vehicle is driven.

    GO TO 7.

  7. CHECK FOR RESTORING SPEED THAT IS SET BY CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE BEFORE CANCELLATION

    Check that the vehicle restores the previous speed kept before the system deactivation when performing the following operations.

    • Drive the vehicle when the conventional (fixed speed) cruise control mode is set and depress the brake pedal to cancel the control. Check that the vehicle restores the previous vehicle speed kept before the system deactivation when pushing up the RES + switch at the vehicle speed approximately 40 km/h (25 MPH) or more.
    • Drive the vehicle when the conventional (fixed speed) cruise control mode is set and shift the shift lever is in the "N" position to cancel the control. Check that the vehicle restores the previous vehicle speed kept before the system deactivation when shifting the shift lever is in the "D" position and pushing up the RES + switch at the vehicle speed of approximately 40 km/h (25 MPH) or more.
    • Drive the vehicle when the conventional (fixed speed) cruise control mode is set and press the CANCEL switch to cancel the control. Check that the vehicle restores the previous vehicle speed kept before the system deactivation when pushing up the RES + switch at the vehicle speed of approximately 40 km/h (25 MPH) or more.

    Inspection End.
