Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

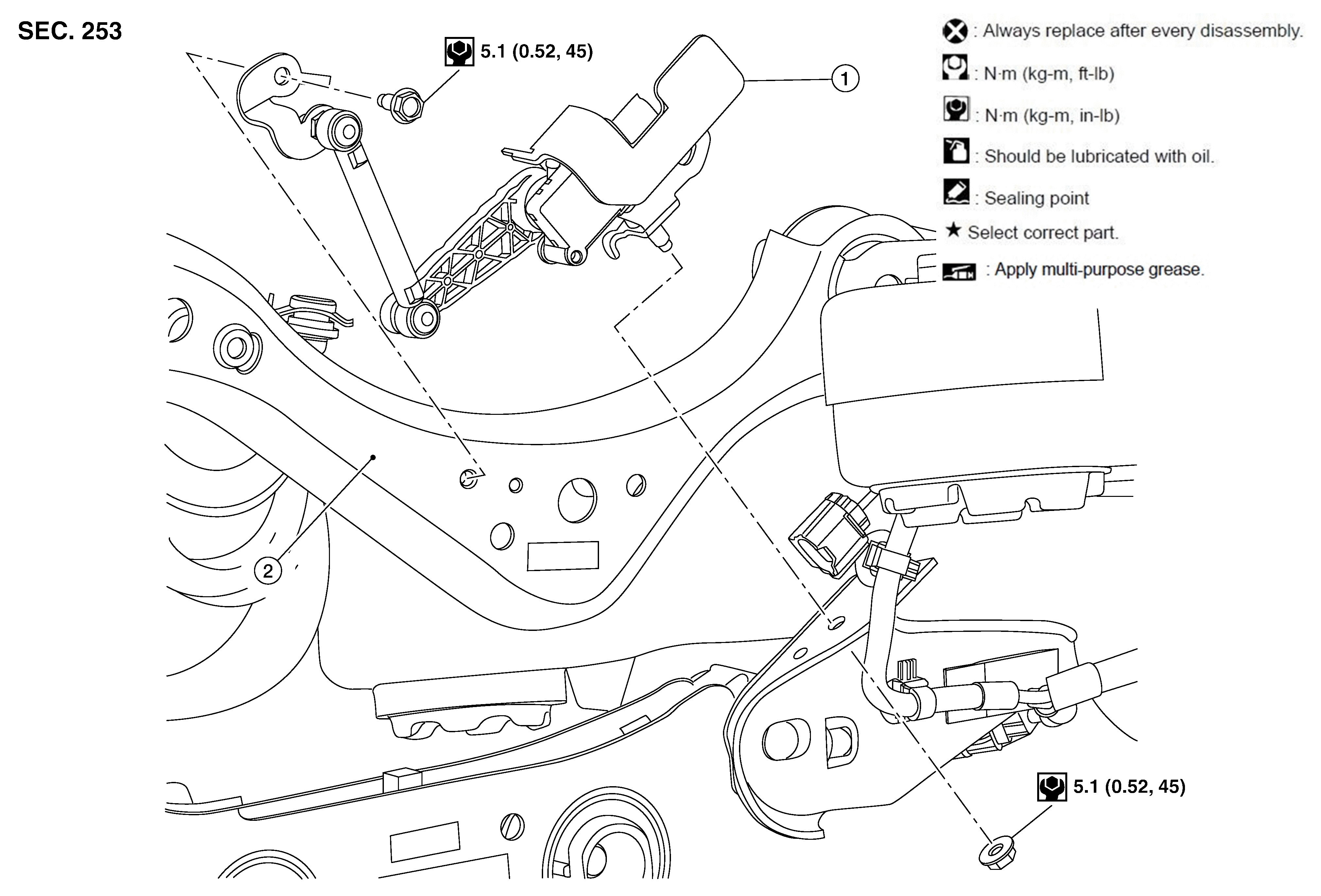

GNSAWLIA0103Z-103Courtesy of NISSAN NORTH AMERICA, INC.

1.

Height sensor

2.

Rear suspension member
