Section 79 (Exterior Lighting System)
>>
Removal And Installation
>>
Front Combination Lamp
>>

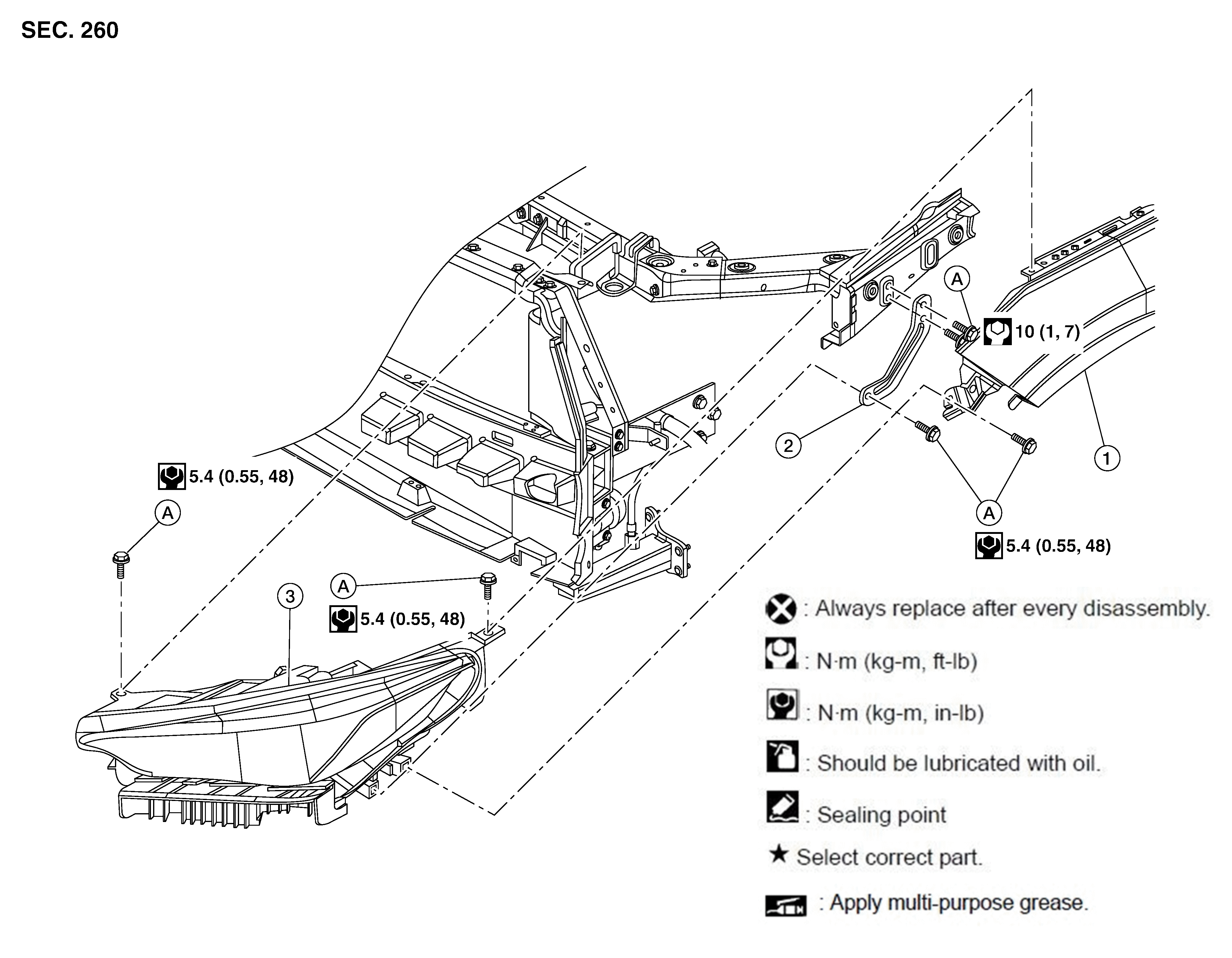

Exploded View
Exploded View
WARNING:
This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front fender
2.
Headlamp mounting bracket
3.
Front combination lamp
A.
Bolt
