Brake System
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|

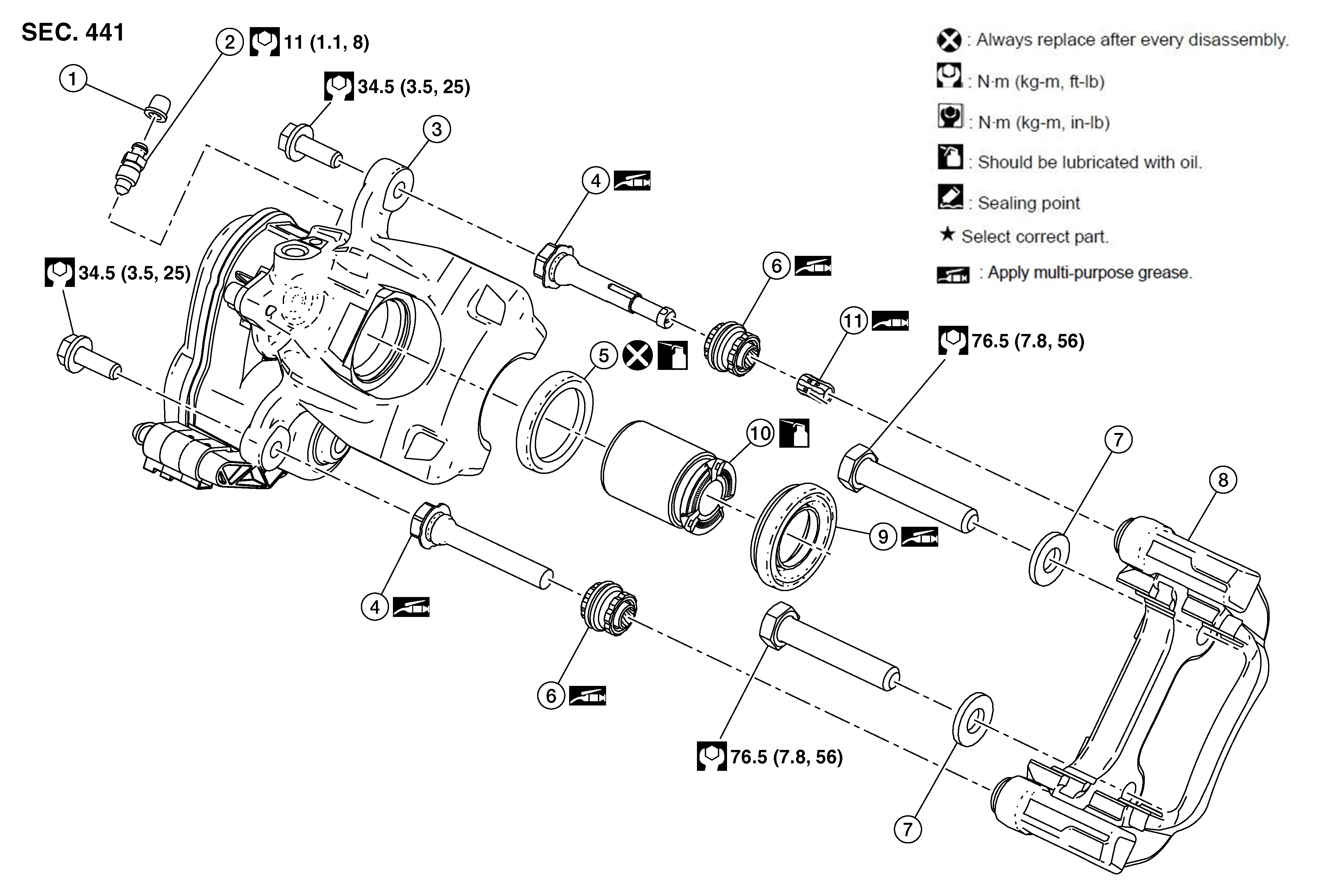

1.
|
Bleeder cap
|
2.
|
Bleeder
|
3.
|
Brake caliper body
|
|
4.
|
Slide pin
|
5.
|
Piston seal
|
6.
|
Slide pin boot
|
|
7.
|
Washer
|
8.
|
Torque member
|
9.
|
Piston boot
|
|
10.
|
Piston
|
11.
|
Bushing
|
|
Brake fluid
|
|
|
Grease
|
