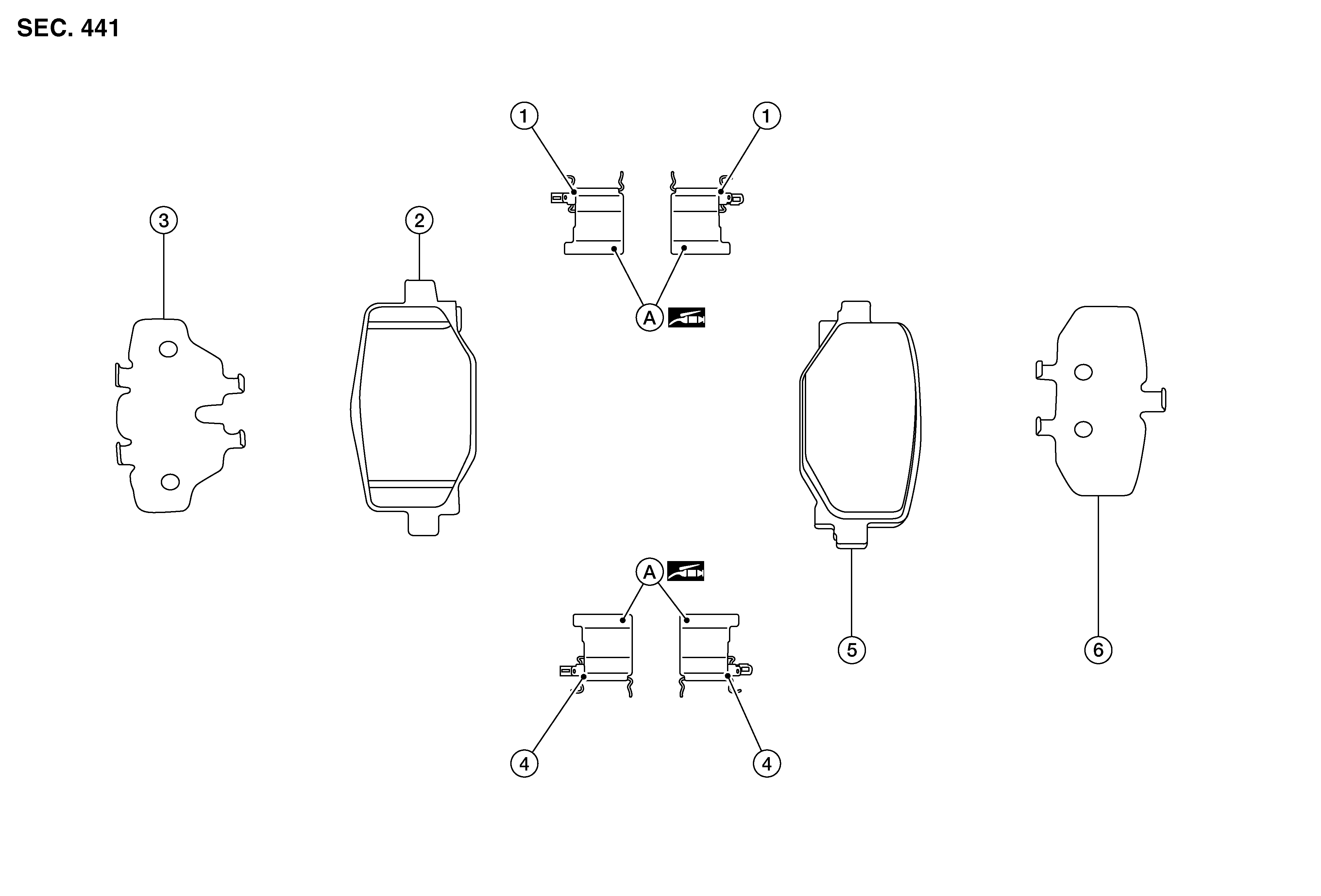

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Anti-rattle clip
|
2.
|
Inner pad
|
3.
|
Inner shim cover
|
|
4.
|
Anti-rattle clip
|
5.
|
Outer pad
|
6.
|
Outer shim cover
|
|
A.
|
Molykote® AS-880N grease
|
