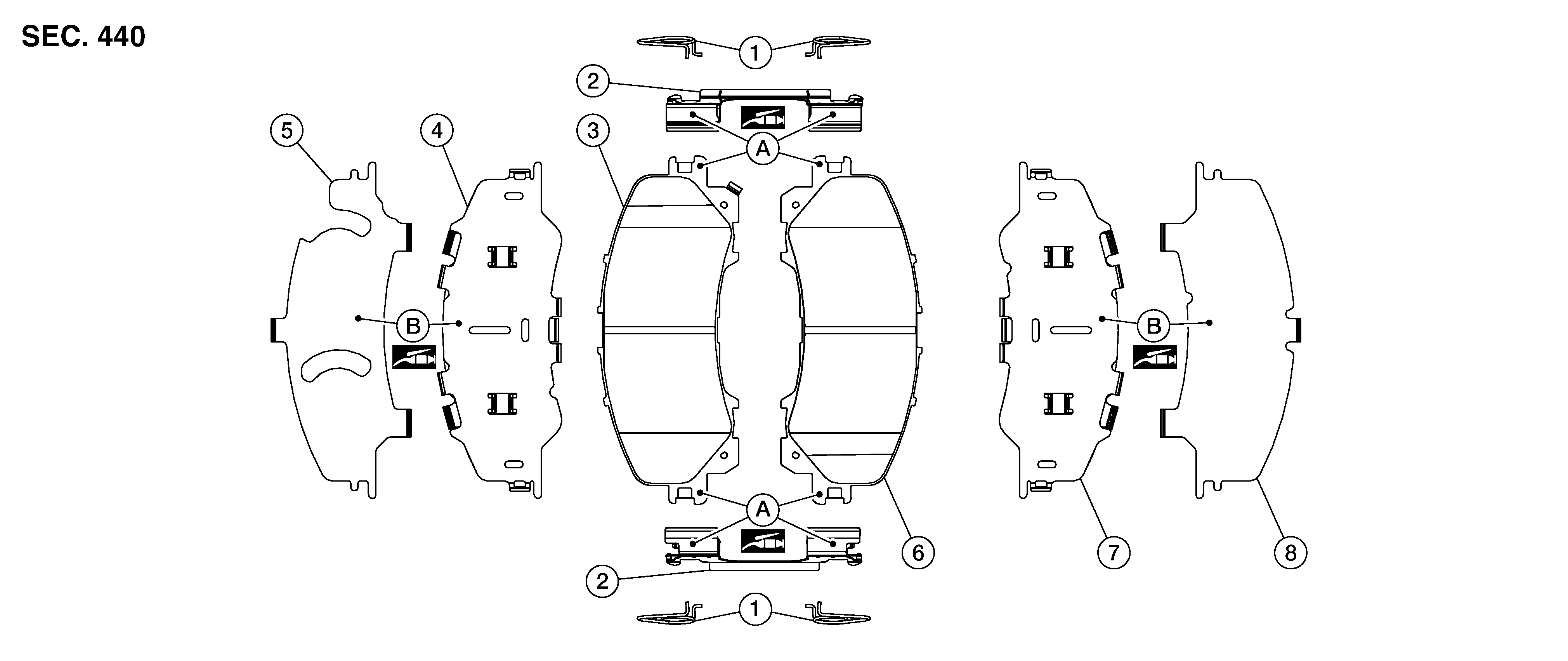

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Pad return spring |
2. |
Anti-rattle clip |
3. |
Inner pad |
|
4. |
Inner shim |
5. |
Inner shim cover |
6. |
Outer pad |
|
7. |
Outer shim |
8. |
Outer shim cover |
A. |
Molykote® 7439 grease. Refer to Removal and Installation . |
|
B. |
Molykote® AS-880N grease. Refer to Removal and Installation . |
