Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

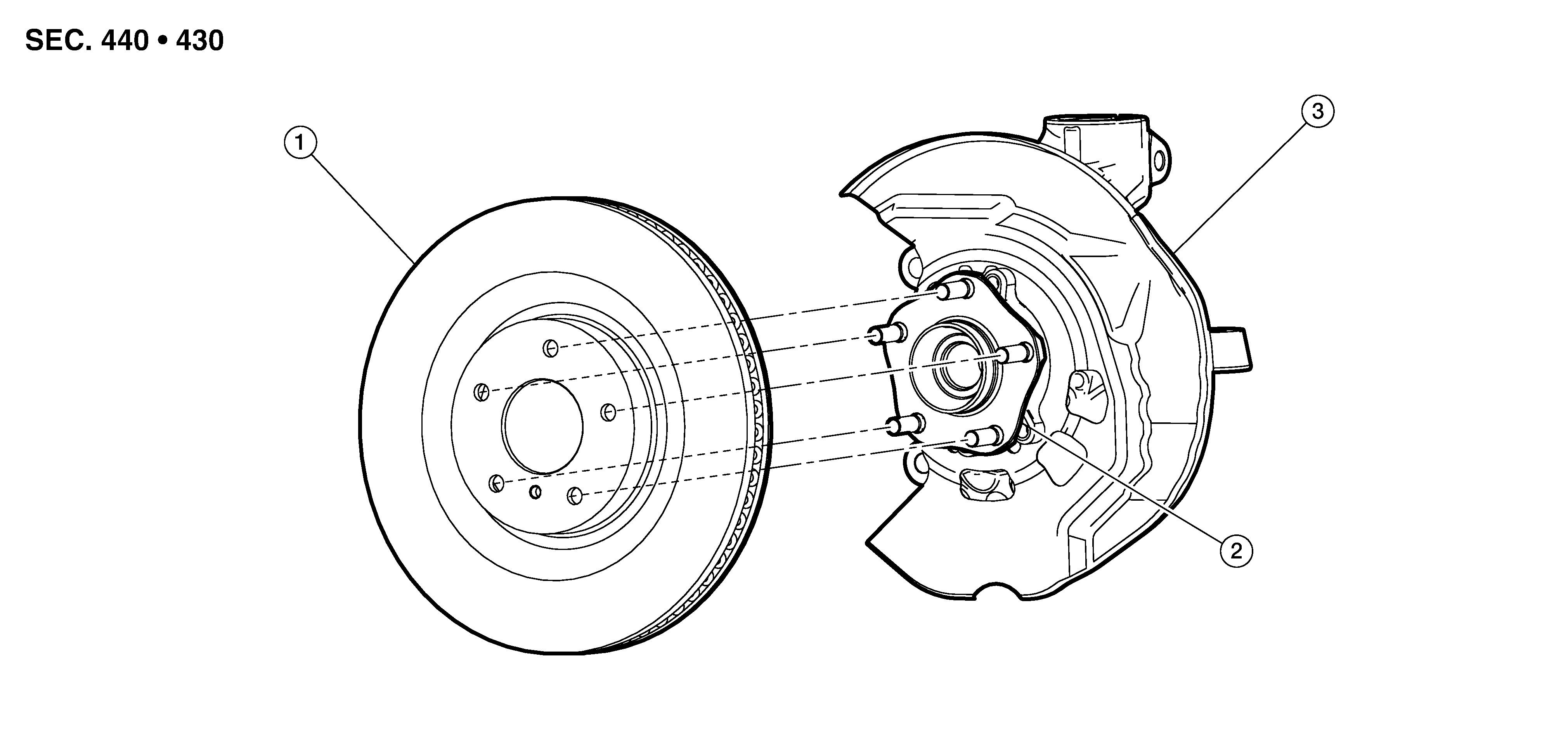

GNSALFIA0053Z-053Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front disc brake rotor

2.

Front wheel hub and bearing

3.

Splash guard
