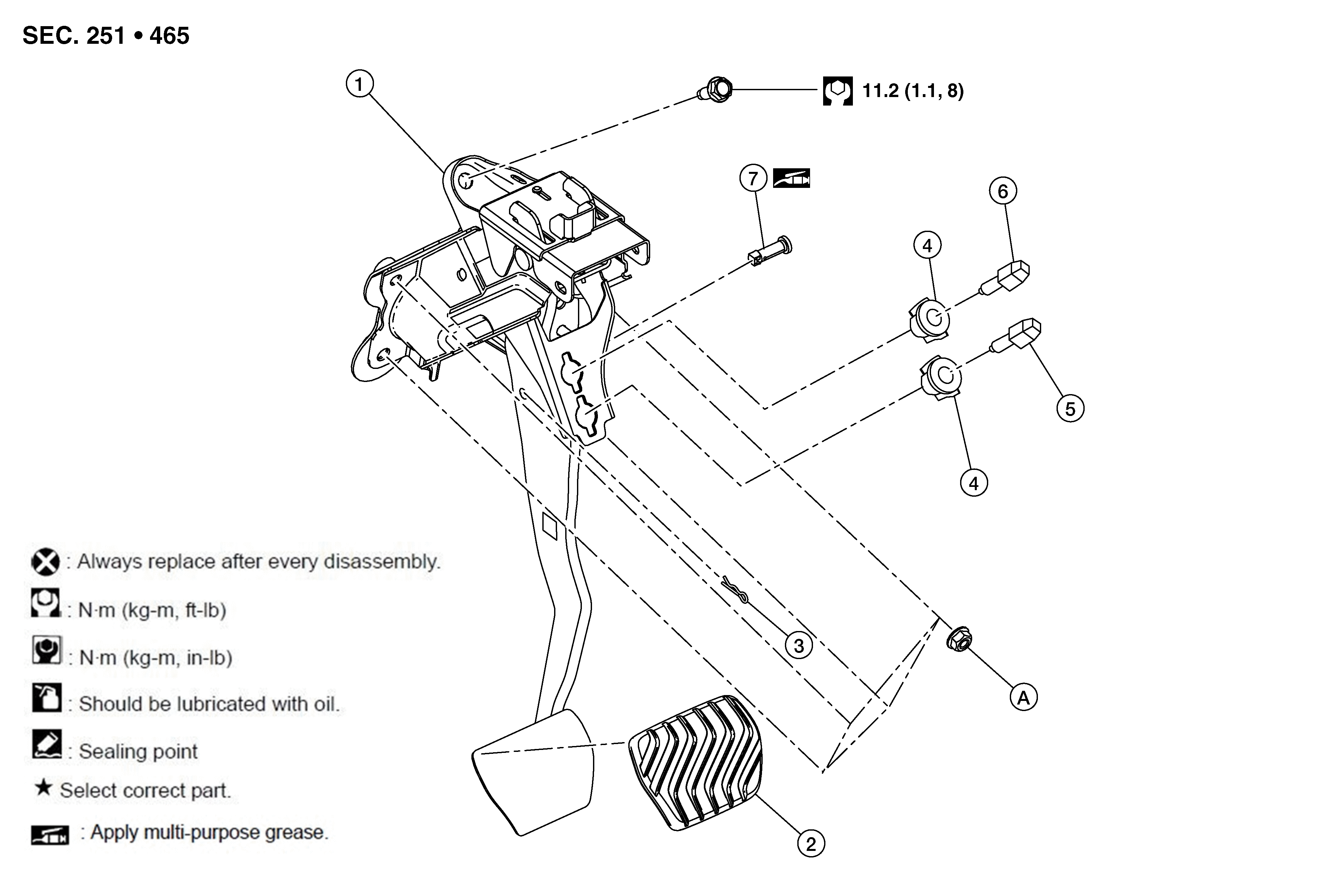

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Brake pedal assembly |
2. |
Brake pedal pad |
3. |
Snap pin |
|
4. |
Clip |
5. |
Stop lamp switch |
6. |
Brake pedal position switch |
|
7. |
Clevis pin |
A. |
Brake booster nut. Refer to Exploded View . |
