Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

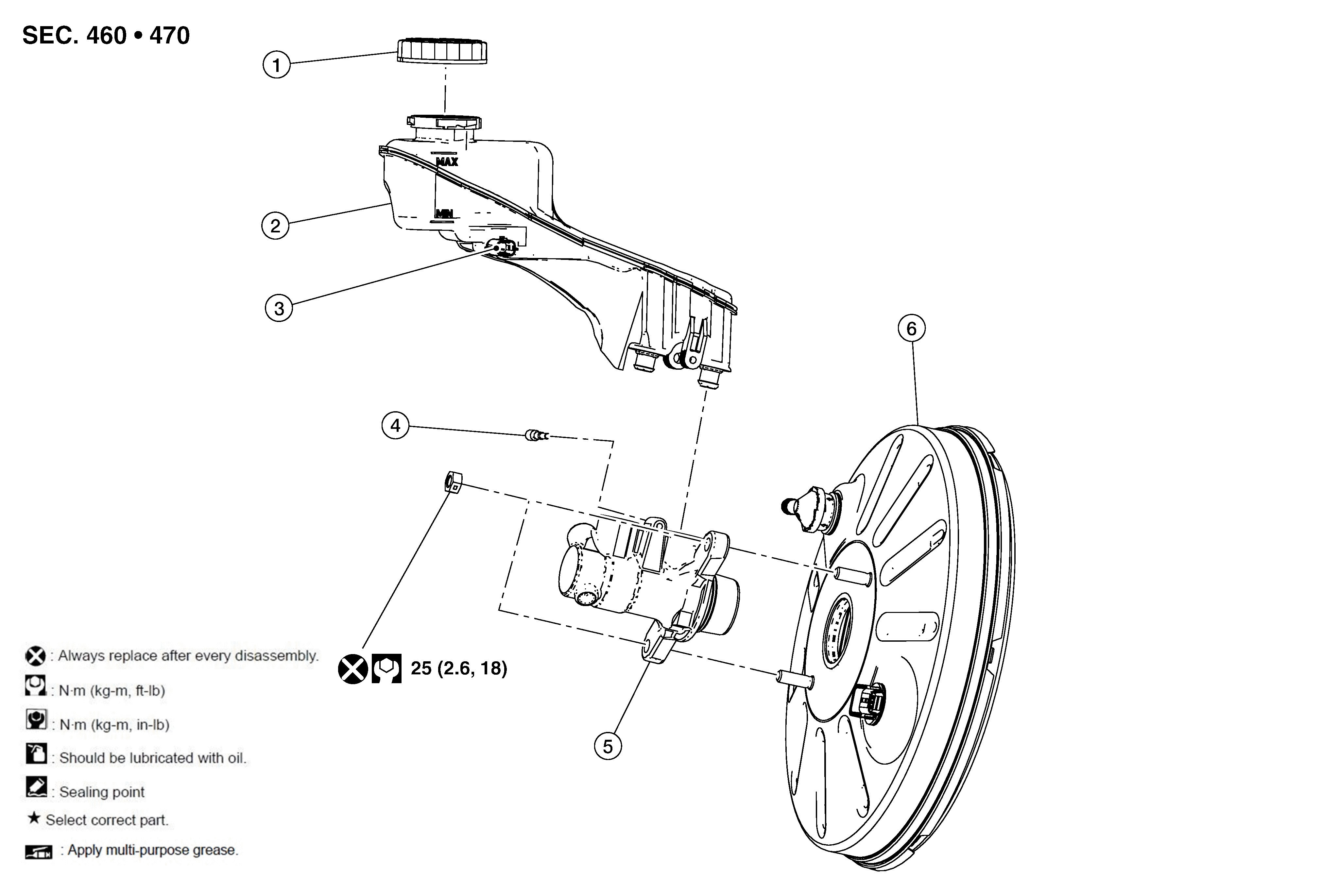

Fig 1: Brake Master Cylinder With Torque Specifications
GNSALFIA0062Z-062Courtesy of NISSAN NORTH AMERICA, INC.

1.

Reservoir tank cap

2.

Reservoir tank

3.

Brake fluid level sensor

4.

Reservoir roll pin

5.

Master cylinder

6.

Brake booster
