Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

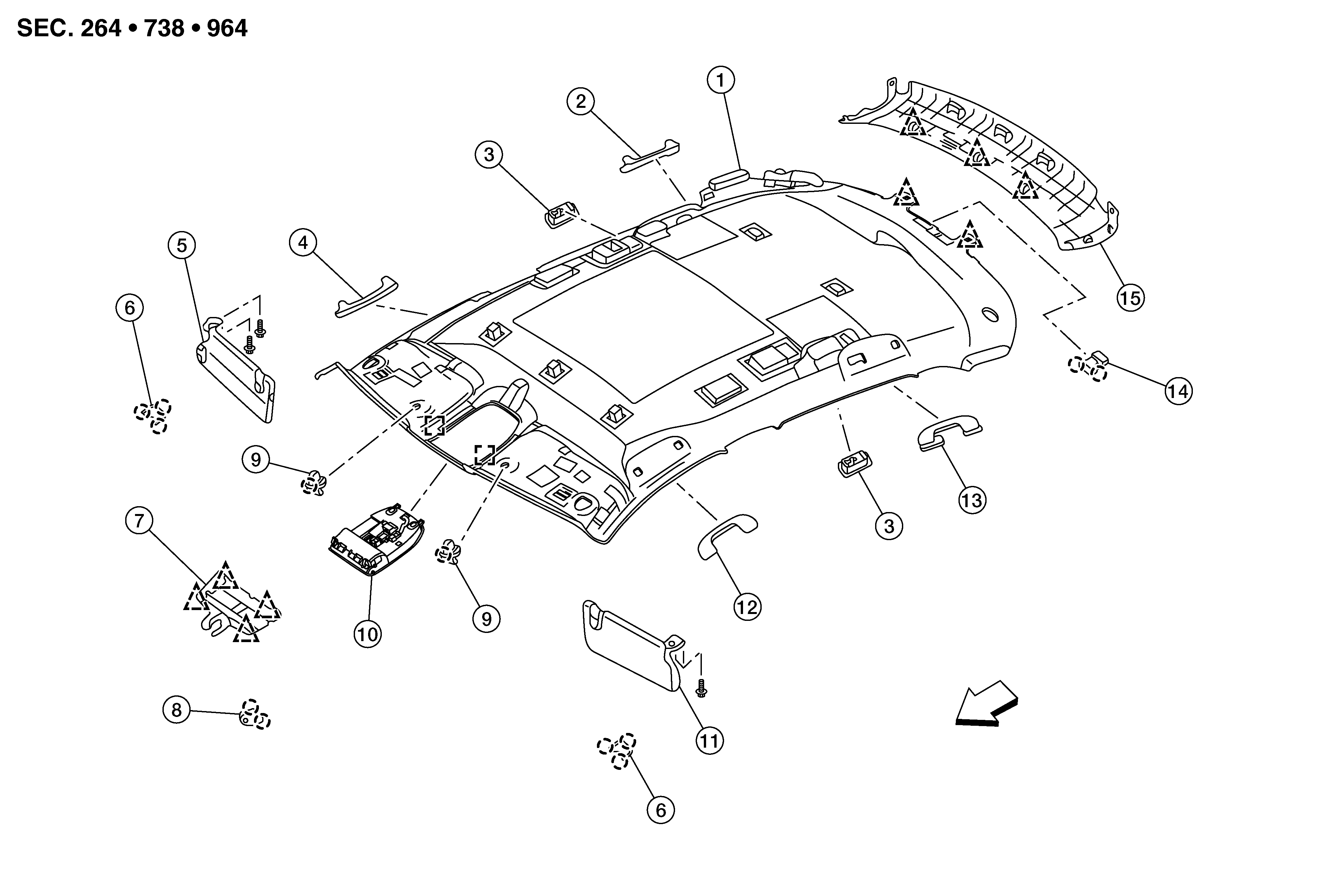

GNSALJIA0174Z-174

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headlining	2.	Rear assist grip (RH)	3.	Personal lamp
4.	Front assist grip (RH)	5.	Sun visor (RH)	6.	Sun visor cover (LH/RH)
7.	Lane camera cover (RH) (if equipped)	8.	Inside mirror cover	9.	Sun visor holder (LH/RH)
10.	Front room/map lamp assembly	11.	Sun visor (LH)	12.	Front assist grip (LH)
13.	Assist grip (with coat hanger)	14.	Active noise control microphone (front/center/rear)	15.	Luggage upper finisher
	Clip		Pawl		Front

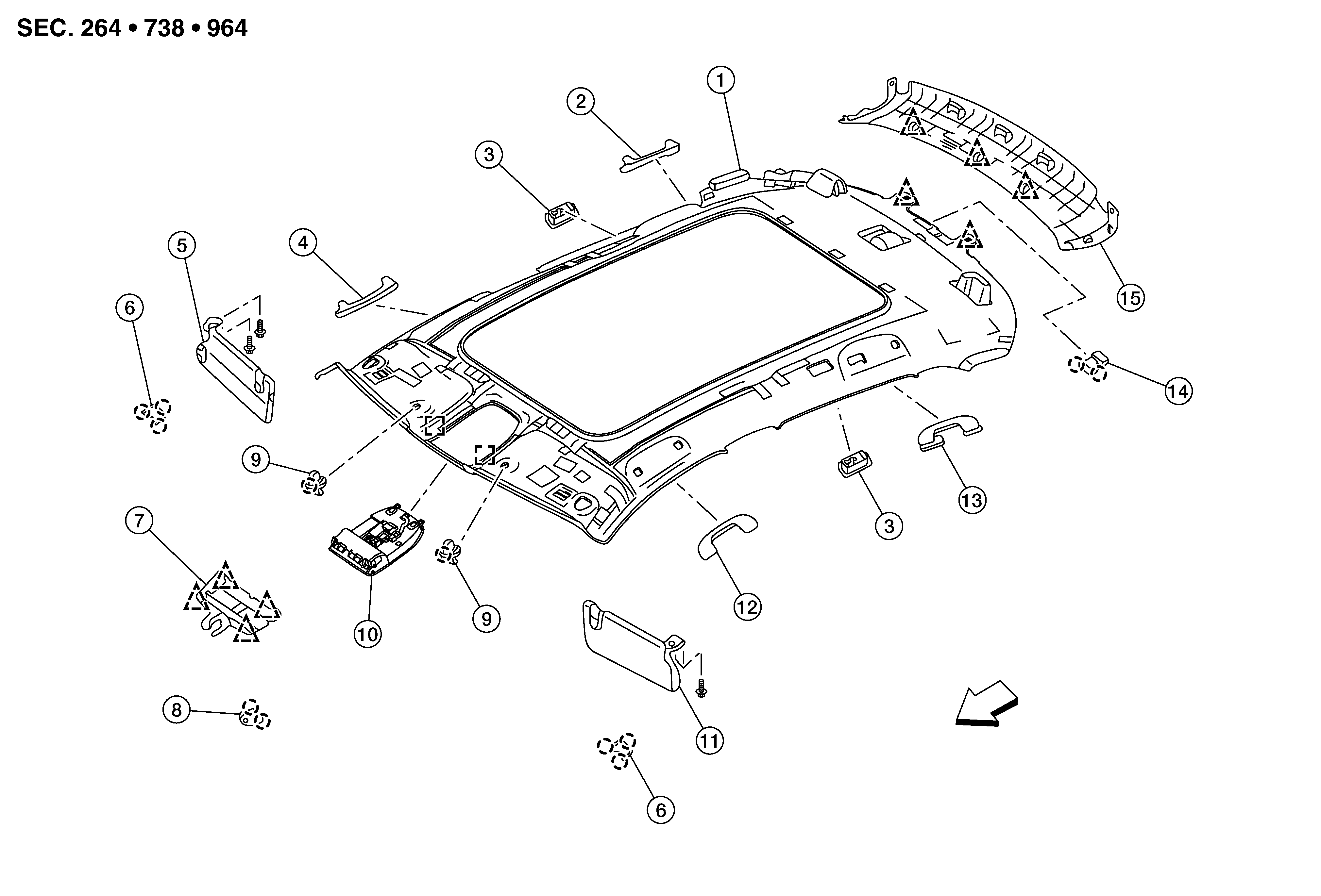

GNSALJIA0173Z-173

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headlining	2.	Rear assist grip (RH)	3.	Personal lamp
4.	Front assist grip (RH)	5.	Sun visor (RH)	6.	Sun visor cover (LH/RH)
7.	Lane camera cover (RH) (if equipped)	8.	Inside mirror cover	9.	Sun visor holder (LH/RH)
10.	Front room/map lamp assembly	11.	Sun visor (LH)	12.	Front assist grip (LH)
13.	Assist grip (with coat hanger)	14.	Active noise control microphone (front/center/rear)	15.	Luggage upper finisher
	Clip		Pawl		Front
