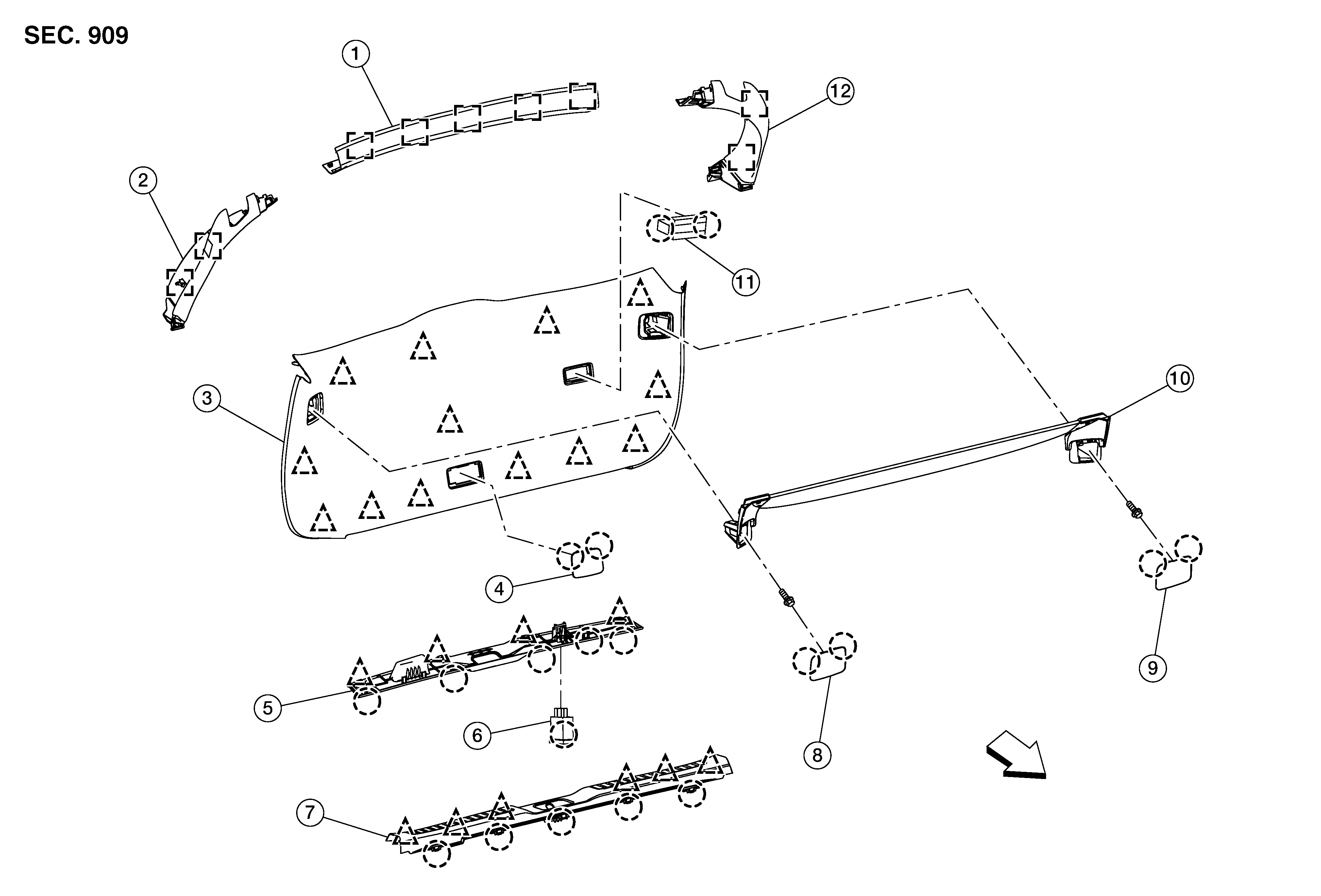

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Back door upper finisher |
2. |
Back door side finisher (RH) |
3. |
Back door lower finisher |
|
4. |
Emergency lever cover |
5. |
Back door pull handle finisher |
6. |
Back door switch |
|
7. |
Back door kicking plate |
8. |
Back door lower finisher bolt cover (LH) |
9. |
Back door lower finisher bolt cover (RH) |
|
10. |
Rear tonneau cover (if equipped) |
11. |
Luggage room lamp |
12. |
Back door side finisher (LH) |
|
|
Clip |
|
Pawl |
|
Front |
