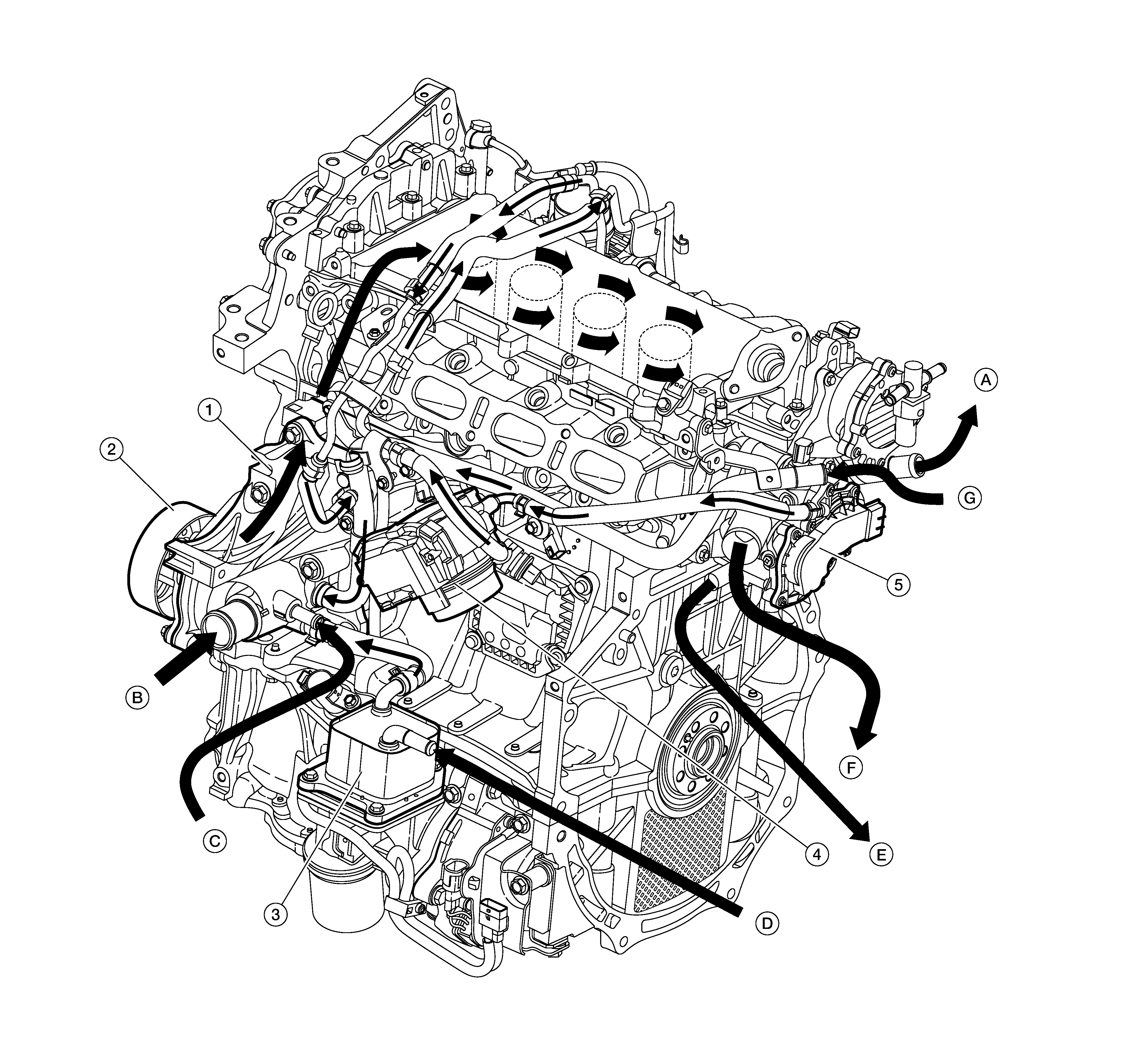

Engine Cooling System
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Water pump housing |
2. |
Water pump |
3. |
Oil cooler |
|
4. |
Electric throttle control actuator |
5. |
Multi-way control valve |
A. |
To heater core. Refer to Exploded View . |
|
B. |
From radiator. Refer to Exploded View . |
C. |
From CVT oil warmer. Refer to Exploded View - Without Tow Package (WITHOUT TOW PACKAGE) or Exploded View - With Tow Package (WITH TOW PACKAGE). |
D. |
From multi-way control valve. Refer to Exploded View . |
|
E. |
To CVT fluid warmer. Refer to Exploded View - Without Tow Package (WITHOUT TOW PACKAGE) or Exploded View - With Tow Package (WITH TOW PACKAGE).. |
F. |
To radiator. Refer to Exploded View . |
G. |
From heater core. Refer to Exploded View . |
