Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

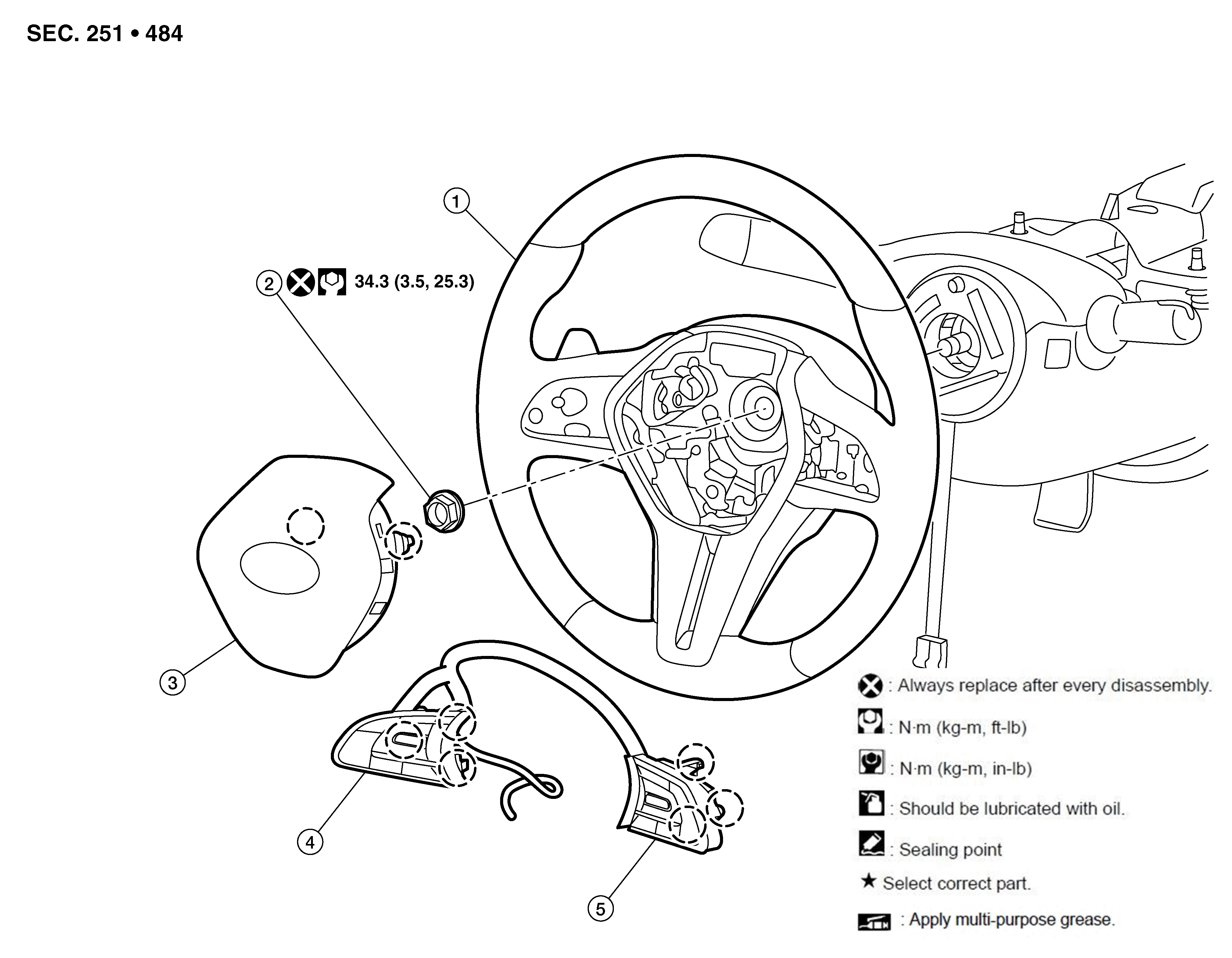

GNSAWNIA0136Z-136Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel

2.

Lock nut

3.

Driver air bag module

4.

Steering switch

5.

ICC steering switch

SYMBOL

: Pawl
