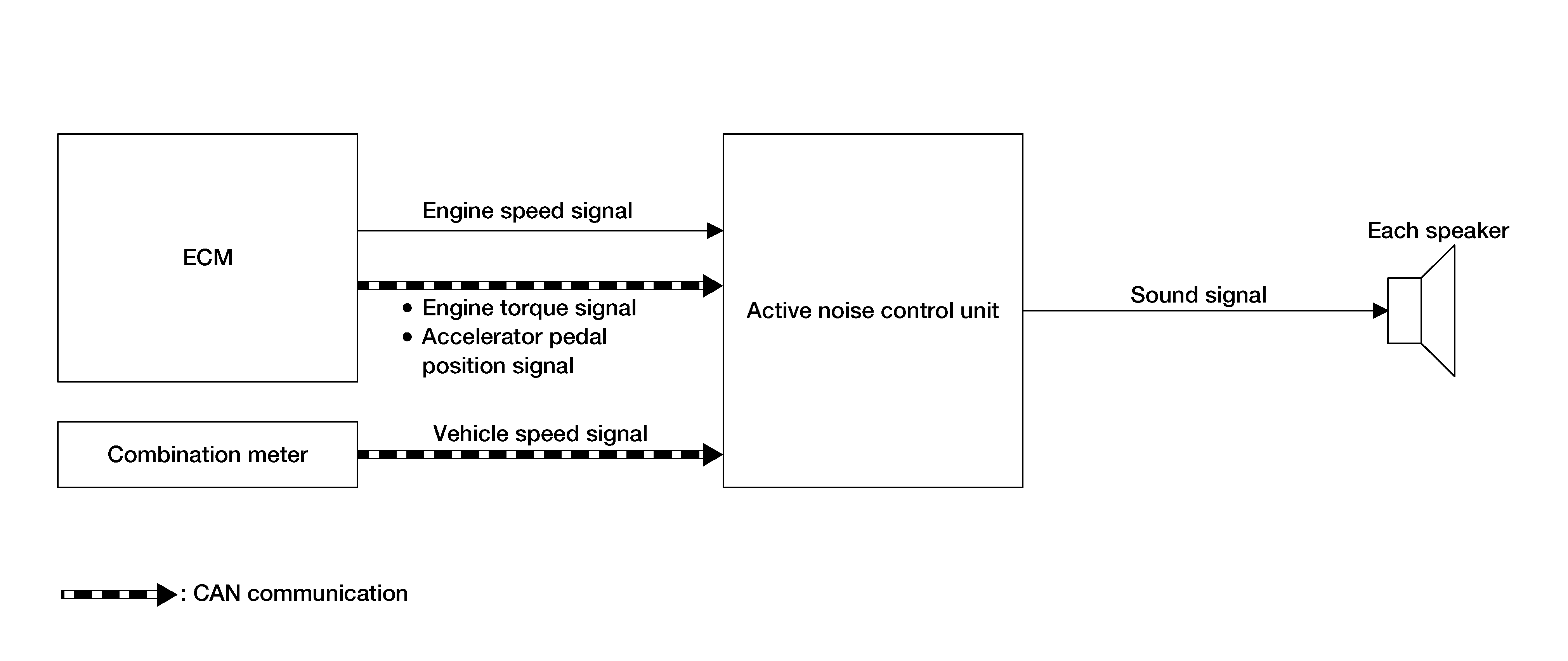

System Diagram
WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
ACTIVE NOISE Control Unit Input Signal (CAN Communication)
|
Transmit unit
|
Signal name
|
|
ECM
|
Engine torque signal
|
|
Accelerator pedal position signal
|
|
Combination meter
|
Vehicle speed signal
|
