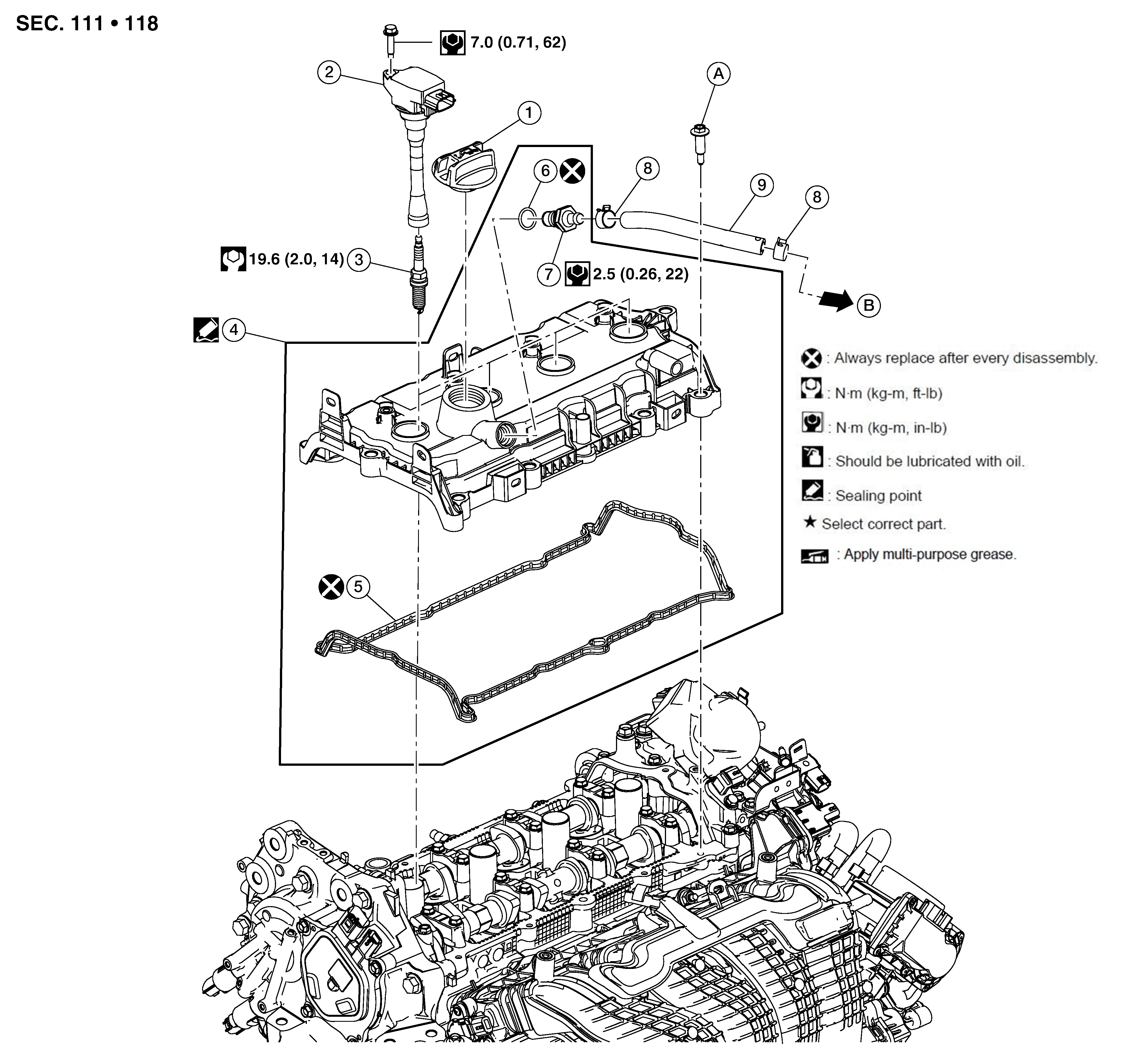

PR25DD engine
WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Oil filler cap |
2. |
Ignition coil |
3. |
Spark plug |
|
4. |
Rocker cover |
5. |
Rocker cover gasket |
6. |
O-ring |
|
7. |
PCV valve |
8. |
Clamp |
9. |
PCV hose |
|
A. |
Refer to Removal and Installation . |
B. |
To intake manifold. Refer to Exploded View . |
||
