Operation Description

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Mood lamps (if equipped) are controlled by combination meter.

Applicable Lamps

Mood lamp (instrument panel LH/RH)
Mood lamp (front door armrest LH/RH)

Mood Lamp Operation

Combination meter judges the vehicle condition with the following items and activates mood lamps:

Door switch signal
Meter ring illumination request signal
Shift position signal
Cranking signal

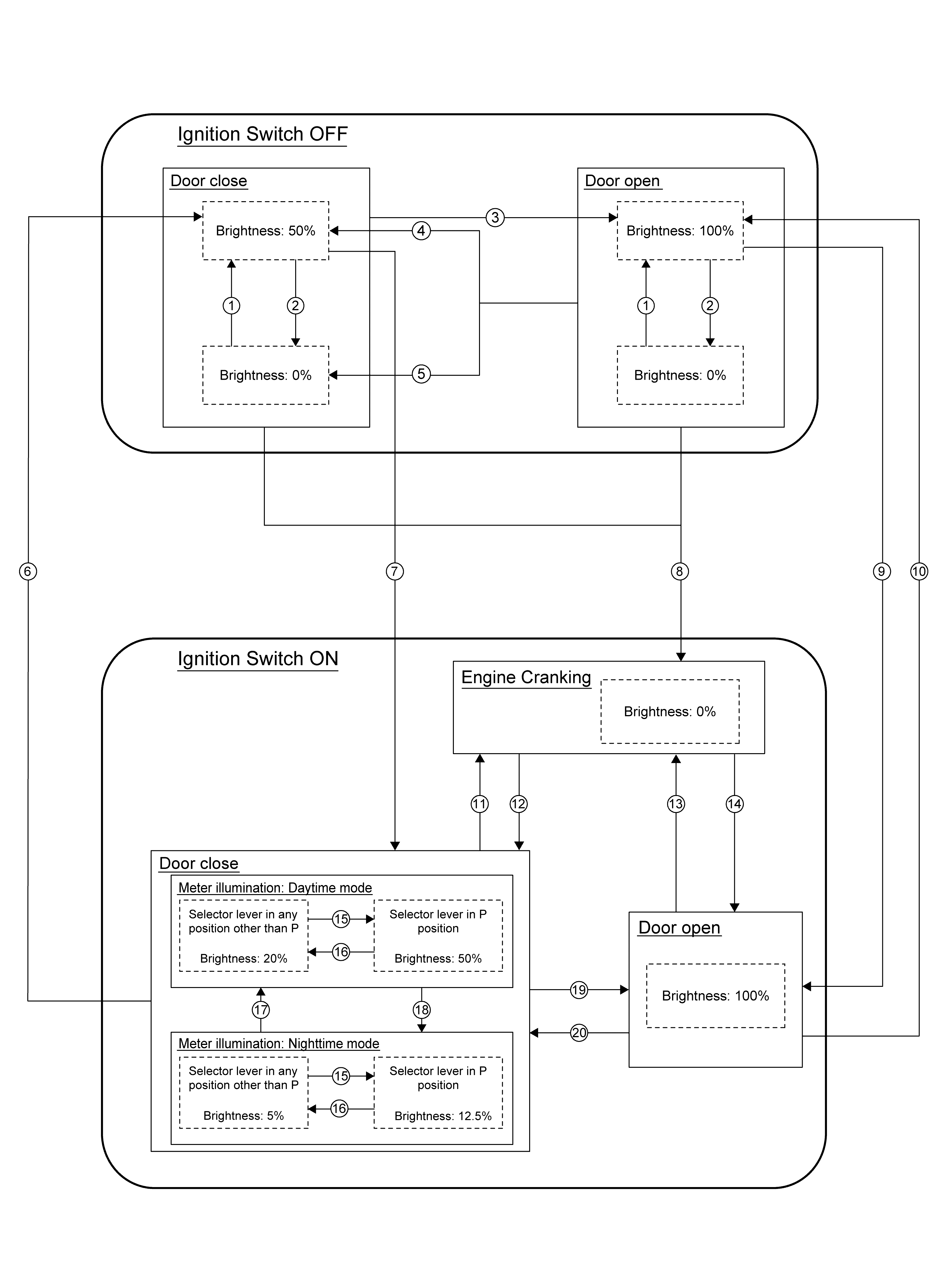

Operation Flow

Combination meter repeats brightening and dimming operation of each mood lamp when any of the following conditions are satisfied:

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Scene	Operation/condition	Output (%)
	Ignition switch OFF Driver welcome function is stopped.	Driver welcome function is activated with all doors are closed.	50
	Ignition switch OFF Driver welcome function is stopped.	Driver welcome function is activated with any door is opened.	100
	Ignition switch OFF Driver welcome function is activated.	Driver welcome function is stopped.	OFF
	Ignition switch OFF All doors are closed	Any door is opened.	100
	Ignition switch OFF Any door is opened	All doors are closed. Driver welcome function is activated.	50
	Ignition switch OFF Any door is opened	All doors are closed. Driver welcome function is stopped.	OFF
	Ignition switch ON All doors are closed	Ignition switch OFF.	50
	Ignition switch OFF All doors are closed Driver welcome function is activated.	All of the following conditions are satisfied: Ignition switch ON. Meter illumination is daytime mode. Shift lever is in P (Park) position	50
	Ignition switch OFF Driver welcome function is stopped.	Start engine (at engine cranking).	OFF
	Ignition switch OFF Any door is opened Driver welcome function is activated.	Ignition switch ON.	100
	Ignition switch ON Any door is opened	Ignition switch OFF.	100
	Ignition switch ON All doors are closed Selector lever in P position	Start engine (at engine cranking).	OFF
	At engine cranking	All of the following conditions are satisfied: Engine cranking is finished. Meter illumination is daytime mode. Selector lever in P position.	50
	At engine cranking	All of the following conditions are satisfied: Engine cranking is finished. Meter illumination is nighttime mode. Selector lever in P position.	12.5
	Ignition switch ON Any door is opened Selector lever in P position	Start engine (at engine cranking).	OFF
	At engine cranking Any door is opened	Engine cranking is finished.	100
	Ignition switch ON All doors are closed Shift lever in any position other than P (Park).	All of the following conditions are satisfied: Ignition switch ON. Meter illumination is daytime mode. Selector lever in P position.	50
		All of the following conditions are satisfied: Ignition switch ON. Meter illumination is nighttime mode. Selector lever in P position.	12.5
	Ignition switch ON All doors are closed Selector lever in P position	All of the following conditions are satisfied: Ignition switch ON. Meter illumination is daytime mode. Selector lever in any position other than P.	20
		All of the following conditions are satisfied: Ignition switch ON. Meter illumination is nighttime mode. Selector lever in any position other than P.	5
	Ignition switch ON. All doors are closed Meter illumination is nighttime mode.	All of the following conditions are satisfied: Ignition switch ON. Meter illumination is daytime mode. Selector lever in any position other than P.	20
		All of the following conditions are satisfied: Ignition switch ON. Meter illumination is daytime mode. Selector lever in P position.	50
	Ignition switch ON. All doors are closed Meter illumination is daytime mode.	All of the following conditions are satisfied: Ignition switch ON. Meter illumination is nighttime mode. Selector lever in any position other than P.	5
		All of the following conditions are satisfied: Ignition switch ON. Meter illumination is nighttime mode. Selector lever in P position.	12.5
	Ignition switch ON All doors are closed	Any door is opened	100
	Ignition switch ON Any door is opened	All of the following conditions are satisfied: Ignition switch ON. Meter illumination is daytime mode. Selector lever in P position.	50
	Ignition switch ON Any door is opened	All of the following conditions are satisfied: Ignition switch ON. Meter illumination is nighttime mode. Selector lever in P position.	12.5
