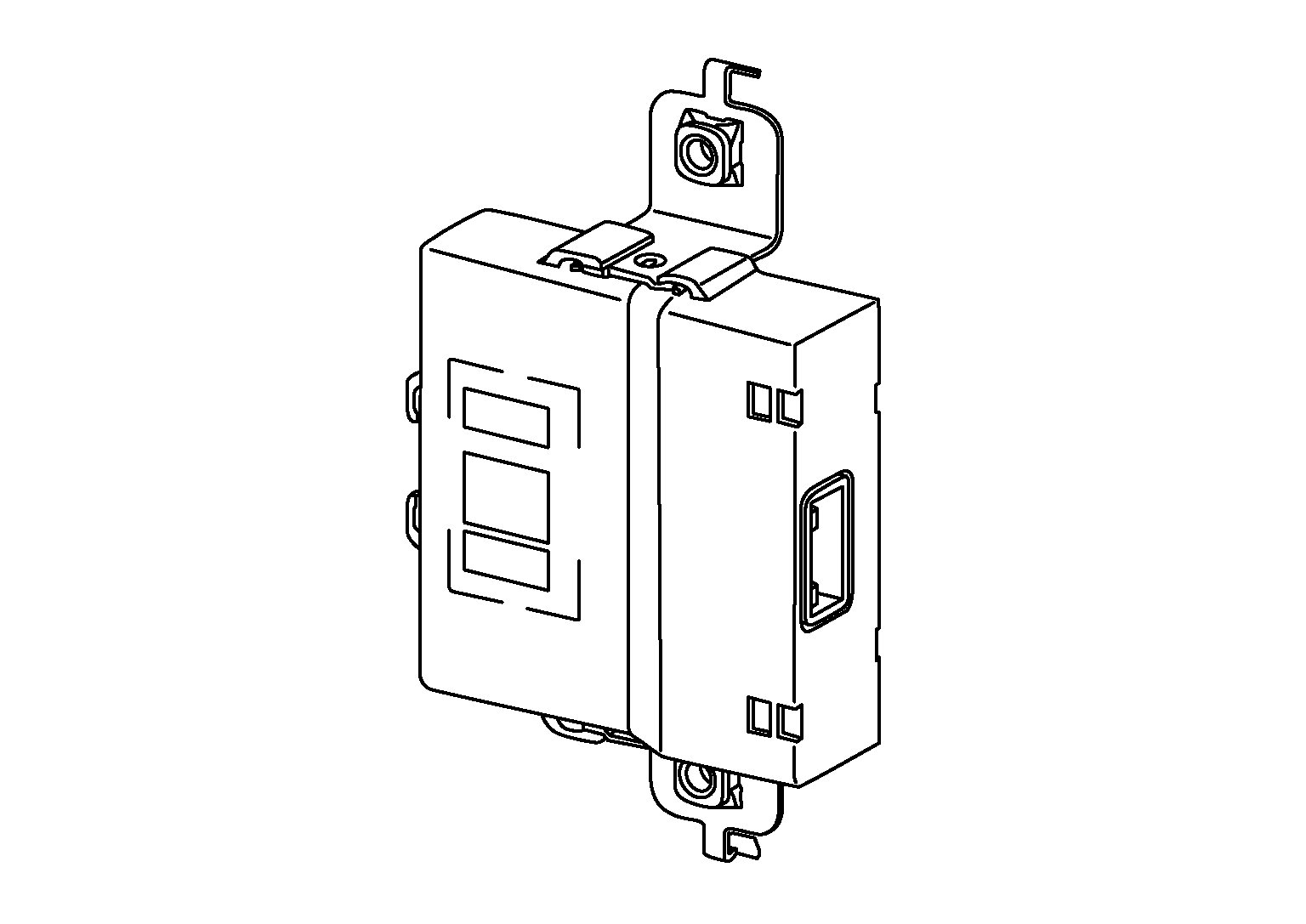

Component Description

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Controls driving force distribution by signals from each sensor from front wheel driving mode (100:0) to 4-wheel driving mode (50:50).
Front-wheel driving condition is available by fail-safe function if malfunction is detected in AWD system.
AWD actuator relay is integrated with AWD control unit, and supplies AWD solenoid with voltage.
