Exploded View

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

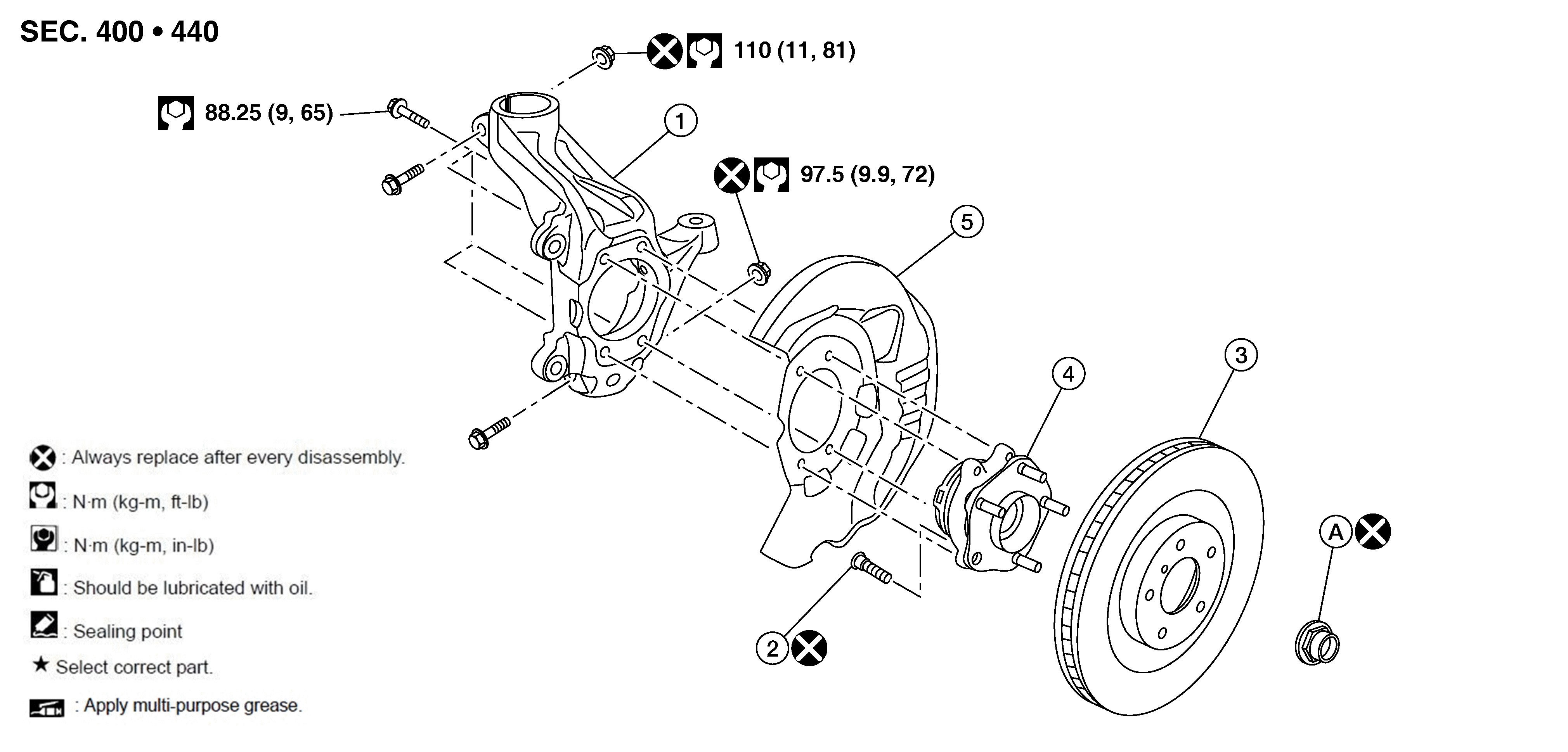

Fig 1: Front Wheel Hub And Bearing Components With Torque Specifications
GNSAWDIA0116Z-116Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering knuckle

2.

Wheel stud

3.

Rotor

4.

Wheel hub and bearing assembly

5.

Splash guard

A.

Refer to FRONT WHEEL HUB AND BEARING : Removal & Installation .
