How to Check

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

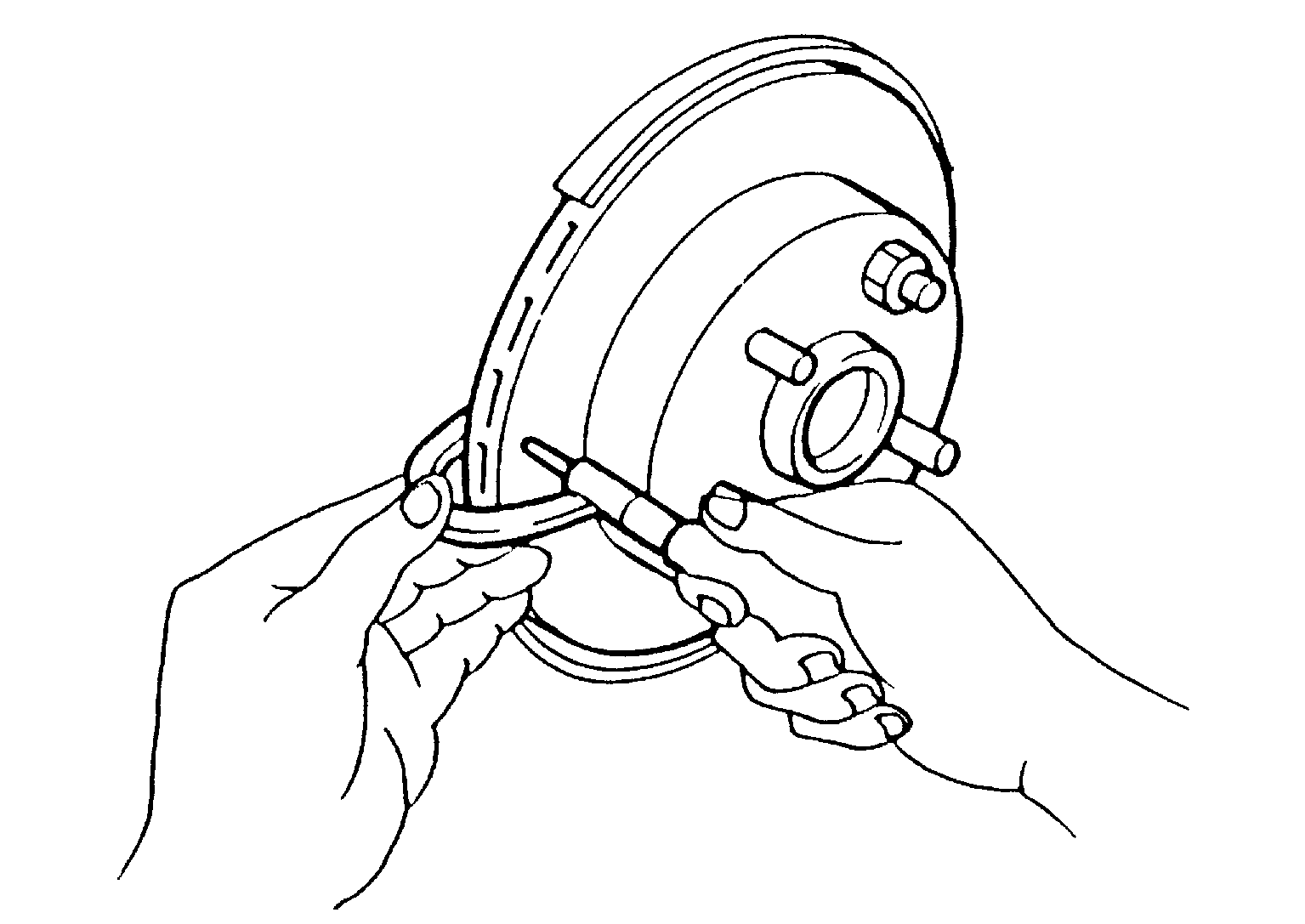

Check for uneven wear of the disc brake rotor using a micrometer. Replace the disc brake rotor if the thickness is below the wear limit. Refer to Removal and Installation .

Courtesy of NISSAN NORTH AMERICA, INC.

Thickness variation (measured at 8 positions)

: Service Data
