Work Procedure: Description

WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Perform action test to verify the customer's concern.
Perform action test and check the system operation after system diagnosis.

WARNING: Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

Fully understand the following items well before the road test:
- Precautions: Refer to PRECAUTION FOR INTELLIGENT LANE INTERVENTION SYSTEM SERVICE : Precautions .
- System description for I-LI: Refer to System Description .
- Handling precaution: Refer to Handling Precaution .

CHECK I-LI SYSTEM SETTING
1. Start the engine.
2. Check that the I-LI system setting can be enabled/disabled in the vehicle information display.
3. Turn OFF the ignition switch and wait for 30 seconds or more.
4. Check that the previous setting is saved when the engine starts again.
GO TO 2.

ACTION TEST FOR I-LI

Enable the setting of the I-LI system in the vehicle information display.

Check the I-LI operation according to the following table.

Vehicle condition/ Driver's operation		Action	Indication on the combination meter	Buzzer

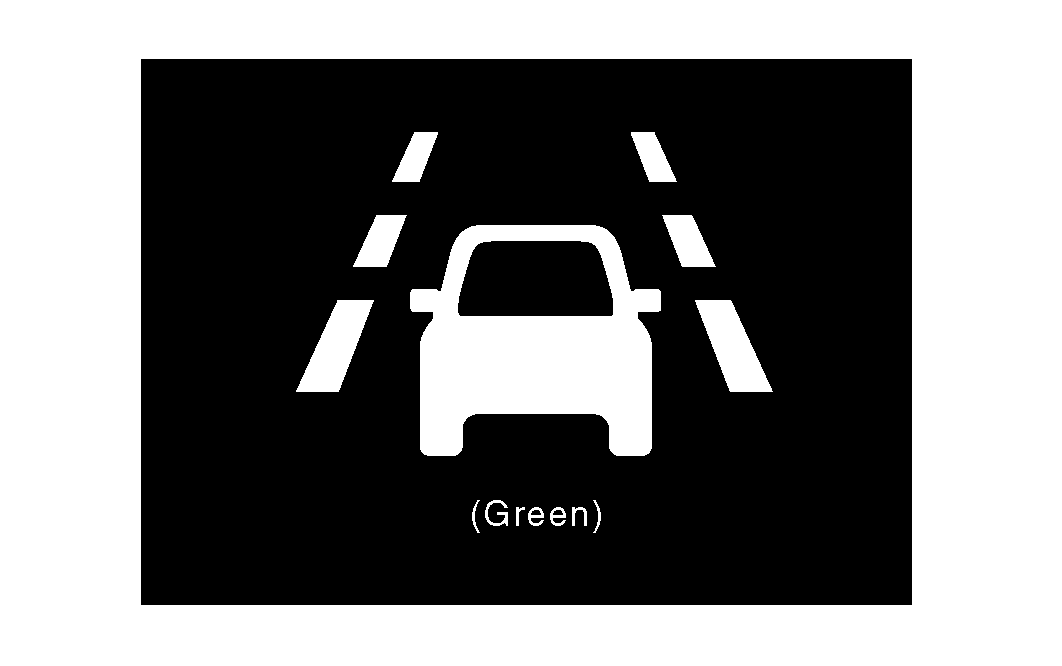

Less than Approx. 50 km/h (30 MPH)	Close to lane marker	No action	Courtesy of NISSAN NORTH AMERICA, INC.	--

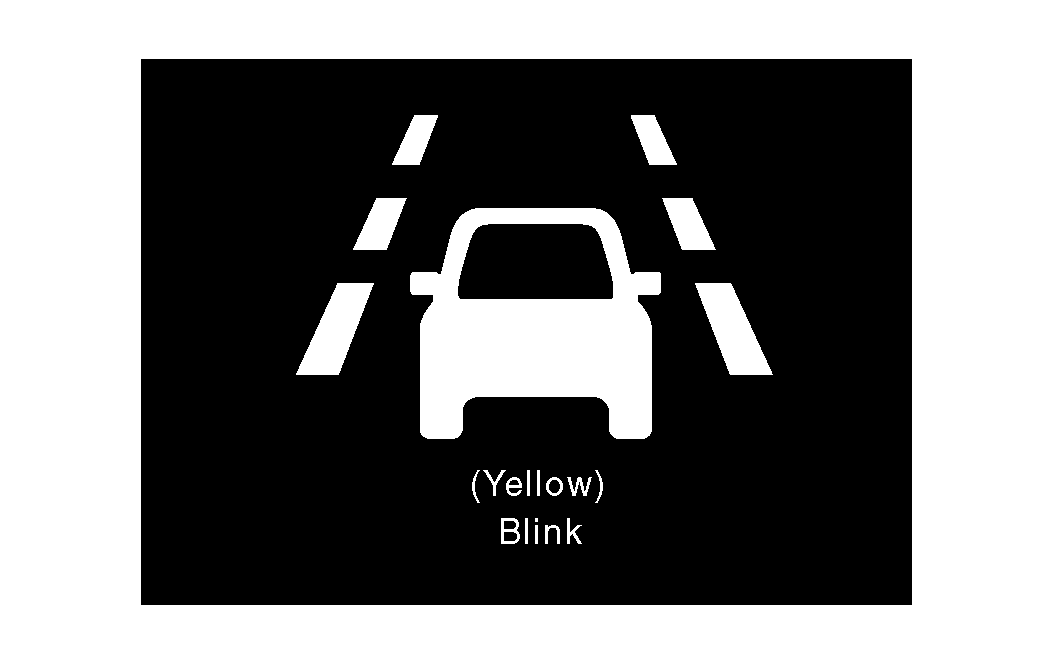

Approx. 60 km/h (37 MPH) or more	Close to lane marker	Warning and yawing Buzzer sounds Warning lamp blinks Brake control	Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
	Close to lane marker Turn signal ON (Deviate side)	No action	Courtesy of NISSAN NORTH AMERICA, INC.	--
	Close to lane marker with soft braking	Warning Buzzer sounds Warning lamp blinks	Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
	VDC OFF Switch OFF => ON (VDC system ON => OFF) Road condition is wet Lane camera temperature is high	Cancellation Buzzer sounds Each message is displayed	Each message is displayed	Beep

NOTE: After the operating conditions are satisfied, the control continues until the vehicle speed reaches approximately 50 km/h (30 MPH). Refer to System Description (Without ProPILOT Assist) or System Description (With ProPILOT Assist).

Inspection End.
