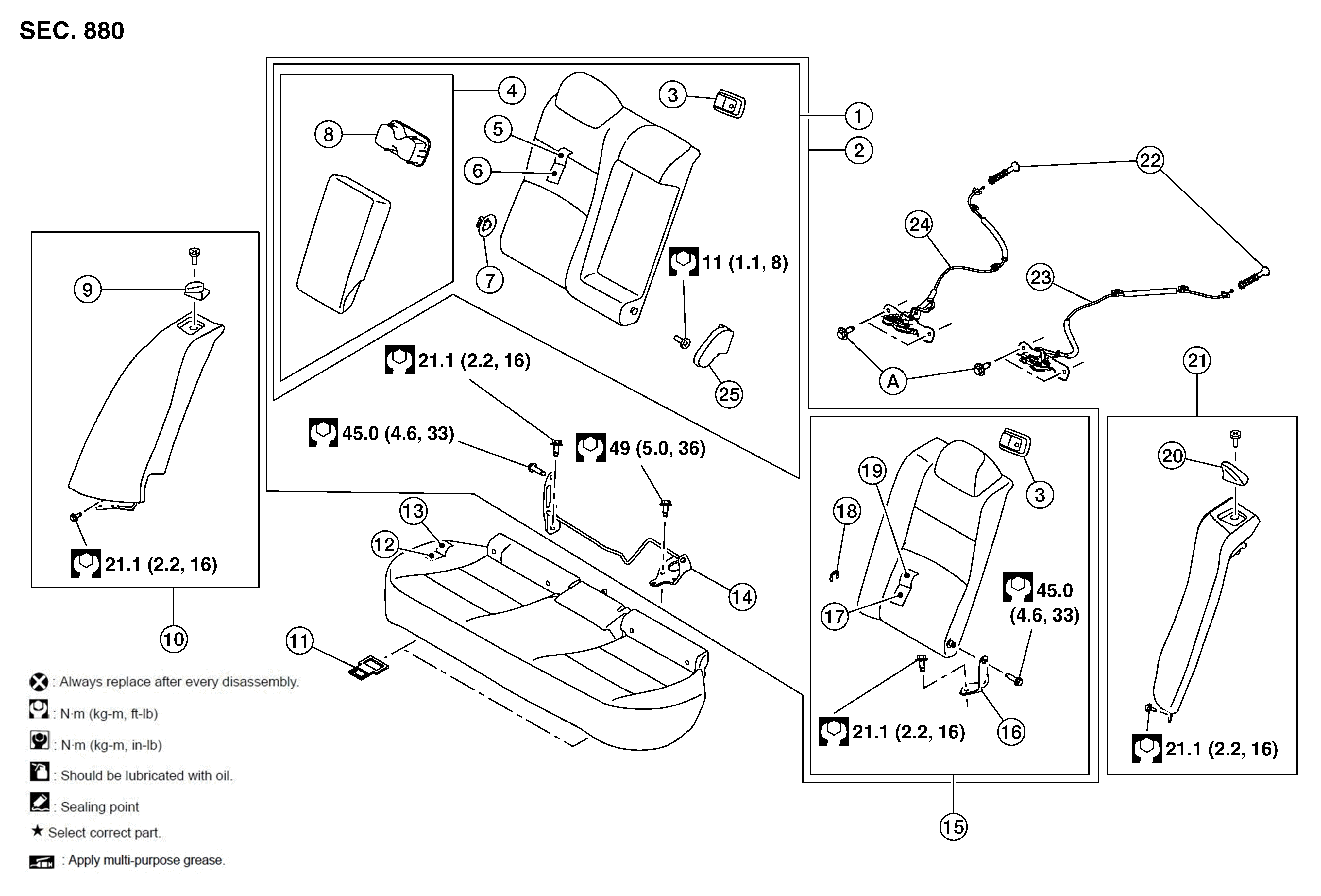

Exploded View
WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Rear seatback assembly (RH) |
2. |
Rear seatback assembly |
3. |
Cover striker rear seatback |
|
4. |
Armrest assembly |
5. |
Seatback trim (RH) |
6. |
Seatback pad (RH) |
|
7. |
Armrest pivot pin finisher |
8. |
Cup holder |
9. |
Seat belt guide (RH) |
|
10. |
Rear seat bolster (RH) |
11. |
Seat cushion lock |
12. |
Seat cushion pad |
|
13. |
Seat cushion trim |
14. |
Seatback hinge (LH) |
15. |
Rear seatback assembly (LH) |
|
16. |
Seatback hinge (LH) |
17. |
Seatback pad (LH) |
18. |
Retaining clip |
|
19. |
Seatback trim (LH) |
20. |
Seat belt guide (LH) |
21. |
Rear seat bolster (LH) |
|
22. |
Seatback latch release knob |
23. |
Lock seatback latch and release cable (LH) assembly |
24. |
Lock seatback latch and release cable (RH) assembly |
|
25. |
Armrest hinge finisher |
A. |
Refer to REAR SEATBACK CONTROL CABLE : Removal & Installation . |
||
