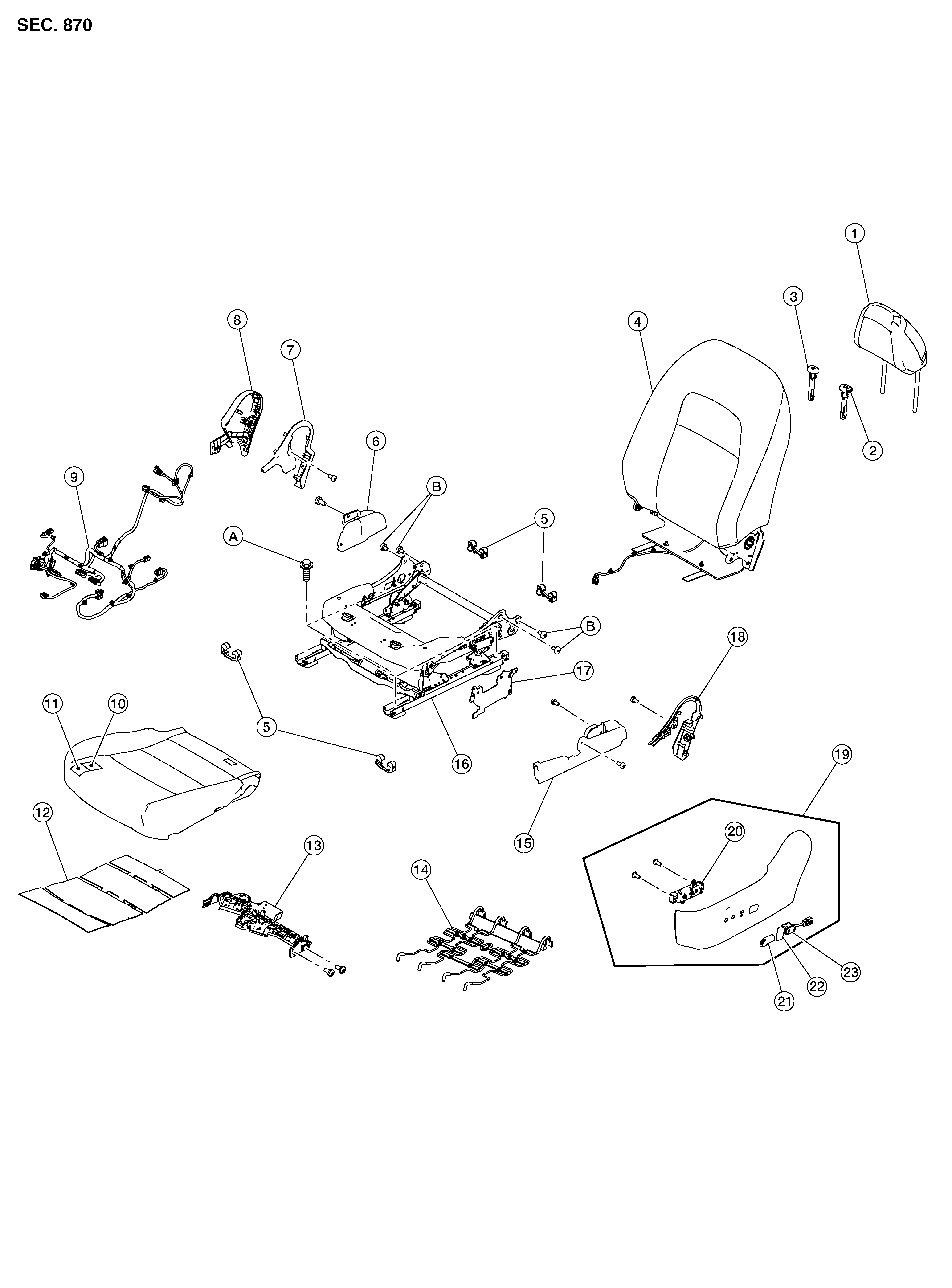

Exploded View
WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Headrest |
2. |
Headrest holder (locked) |
3. |
Headrest holder (free) |
|
4. |
Seatback assembly |
5. |
Slide covers |
6. |
Seat track finisher (RH) |
|
7. |
Seat cushion inner finisher (RH) |
8. |
Seat cushion outer finisher (RH) |
9. |
Seat harness |
|
10. |
Seat cushion pad |
11. |
Seat cushion trim |
12. |
Seat cushion heater (with heated seat) |
|
13. |
Climate controlled seat blower assembly bracket |
14. |
Seat cushion support |
15. |
Seat track finisher (LH) |
|
16. |
Seat cushion frame |
17. |
Seat slide finisher bracket (LH) |
18. |
Seat cushion inner finisher (LH) |
|
19. |
Seat cushion outer finisher (LH) |
20. |
Power seat switch |
21. |
Seat slide knob |
|
22. |
Seat recline knob |
23. |
Lumbar support switch |
A. |
Refer to FRONT SEAT : Removal & Installation . |
|
B. |
Refer to Exploded View . |
||||
