Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

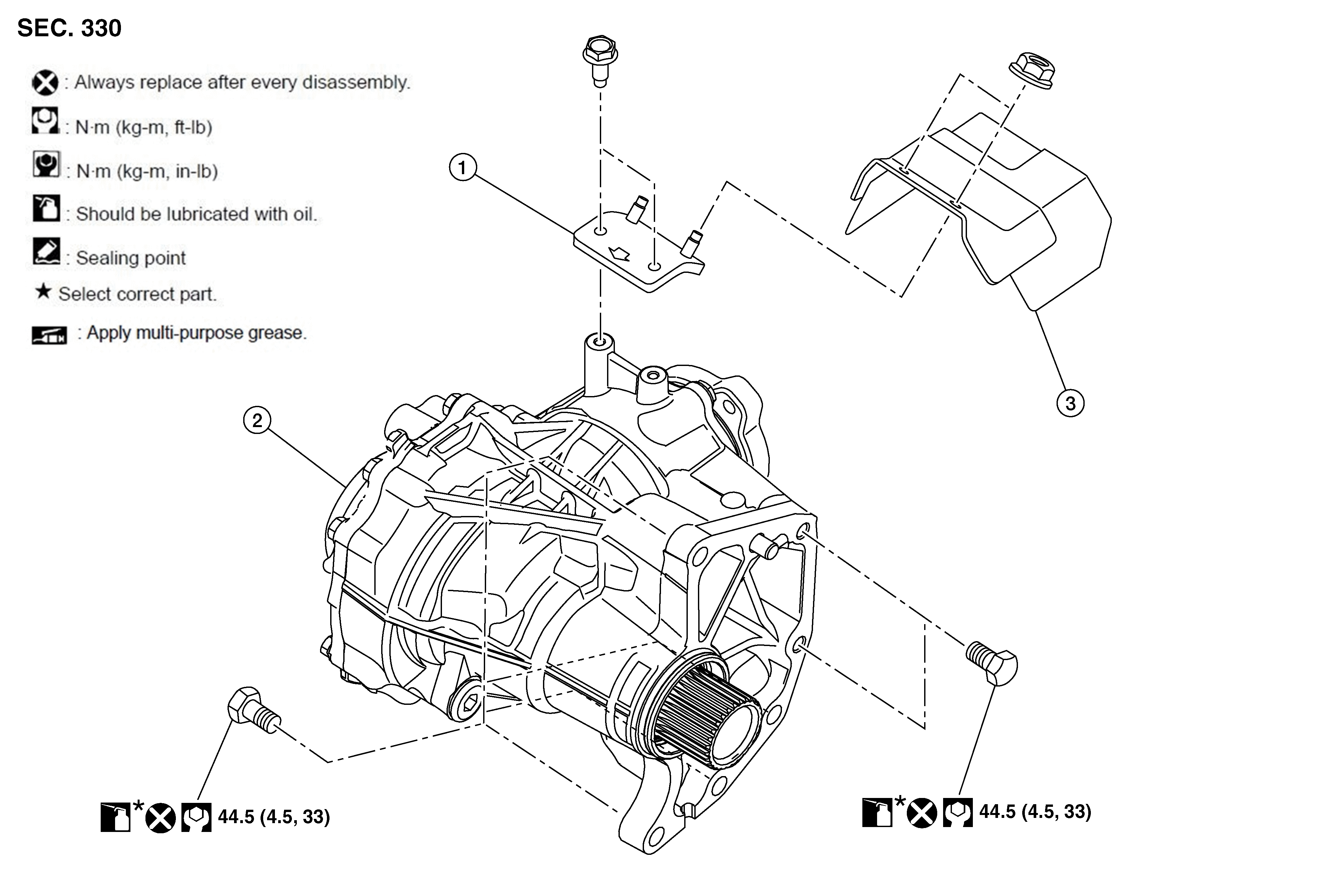

Fig 1: Transfer Assembly With Torque Specifications
GNSAWDIA0051Z-051Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transfer gusset

2.

Transfer assembly

3.

Transfer gusset rear

SYMBOL* : Apply anti-corrosive oil.
