Transfer Case: Disassembly

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer cover. Refer to Disassembly .
  2. Remove ring gear shaft assembly. Refer to Disassembly .
  3. Remove drive pinion assembly. Refer to Disassembly .
  4. Remove O-ring from transfer case.
    CAUTION:
    • Do not use a tool.
    • Do not damage transfer case.

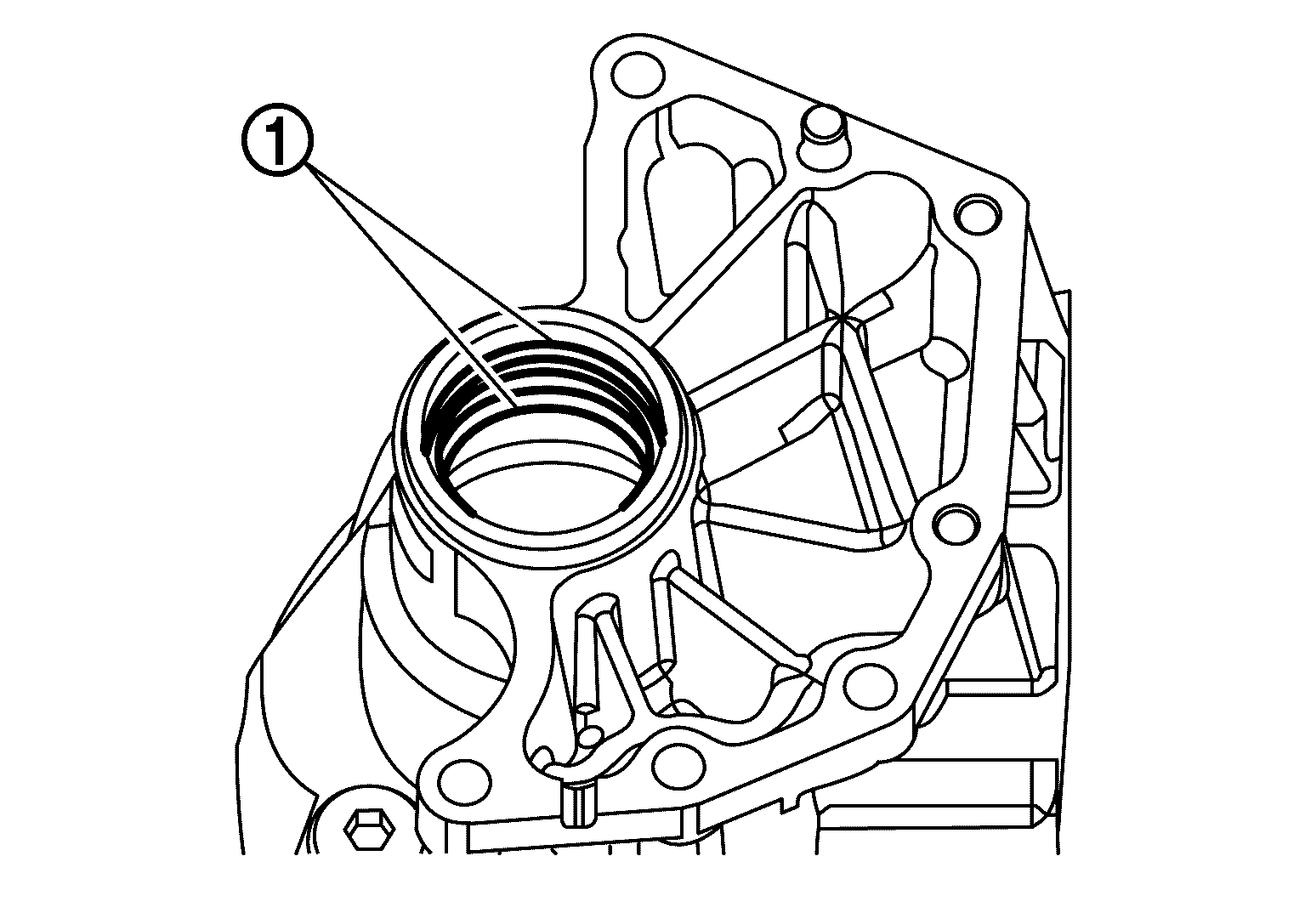

  5. Remove oil seals (1).
    GNSJSDIA3983Z-983Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage transfer case.

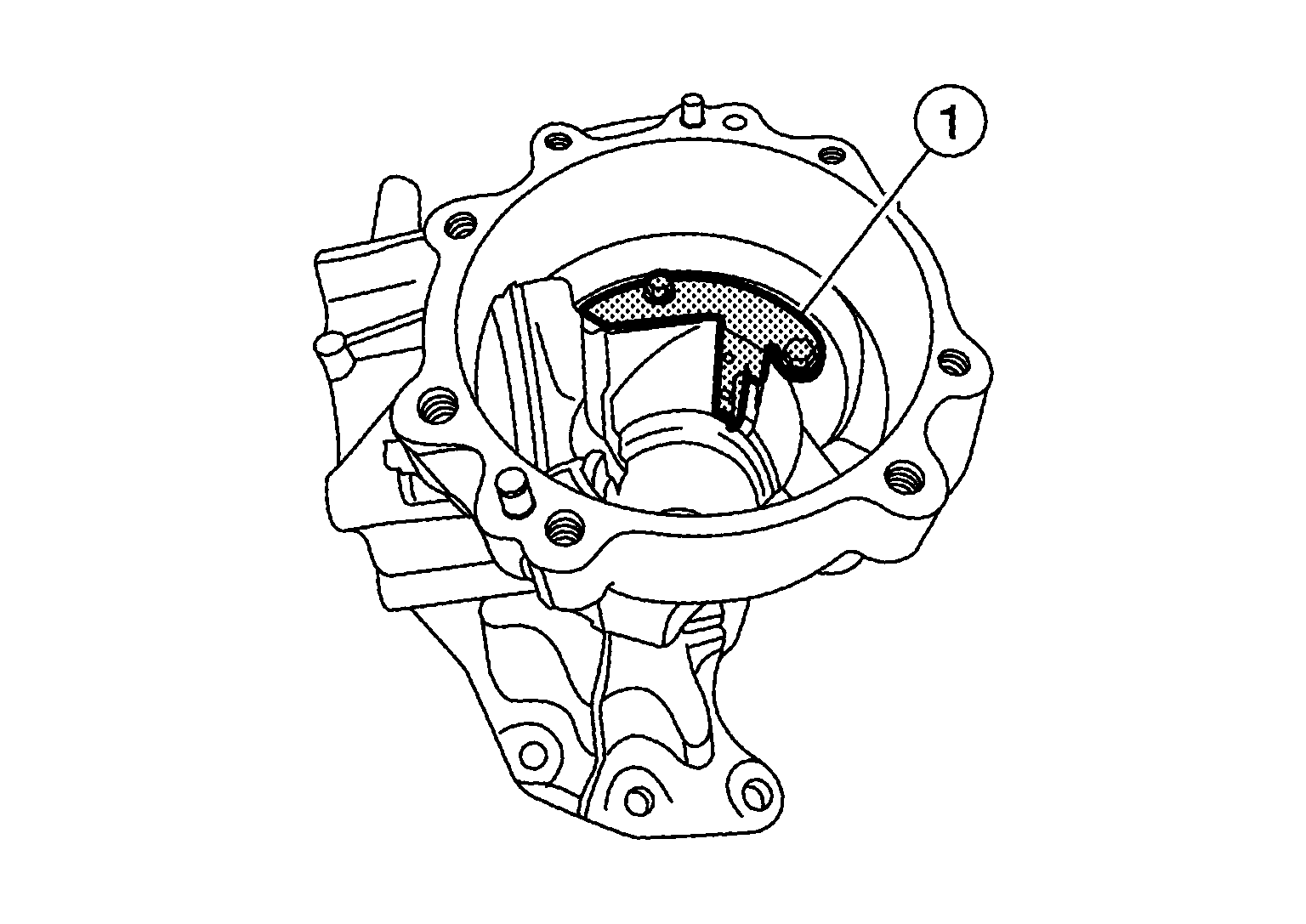

  6. Remove baffle plate (1).
    GNSALDIA0239Z-239Courtesy of NISSAN NORTH AMERICA, INC.

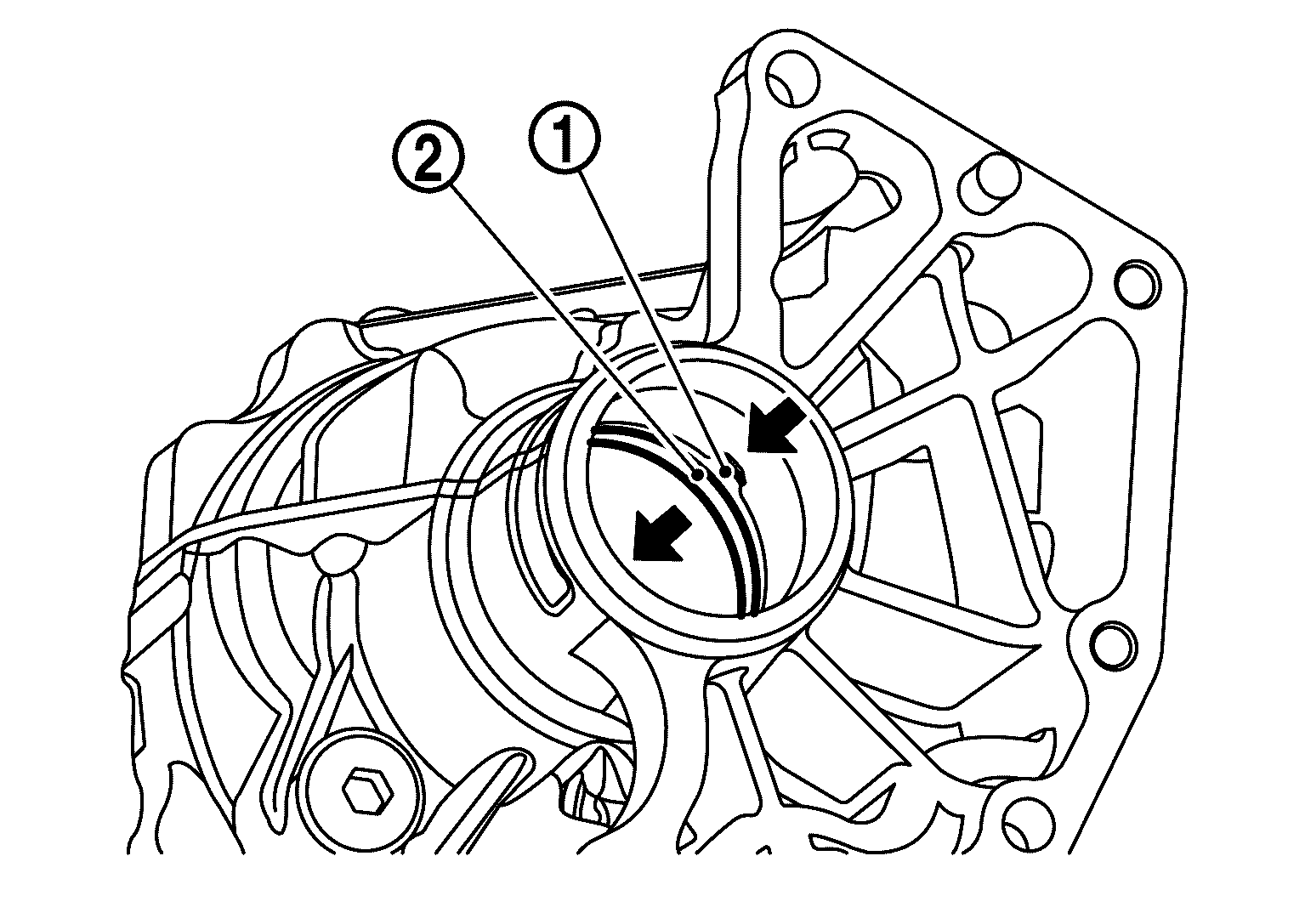

  7. Remove the ring gear bearing adjusting shim (transfer case side) (1) and ring gear bearing (transfer case side) (2) by tapping from the 2 cutouts (SYMBOL ) on the transfer case.
    GNSJSDIA3984Z-984Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage transfer case.
  8. Remove plug and gasket.
  9. Perform inspection after disassembly. Refer to Inspection .
